CPU Rewrite Mode (Flash Memory Version)

Mitsubishi microcomputers

M16C / 62A Group

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

230

Write 7116

Enter block address

D6 = 0?

Blocks locked

Blocks not locked

YES

Start

(Note)

Note: Data bus bit 6.

Read Lock Bit Status Command (7116)

By writing the command code “7116” in the first bus cycle and then the block address of a flash

memory block in the second bus cycle that follows, the system reads out the status of the lock bit of

the specified block on to the data (D6).

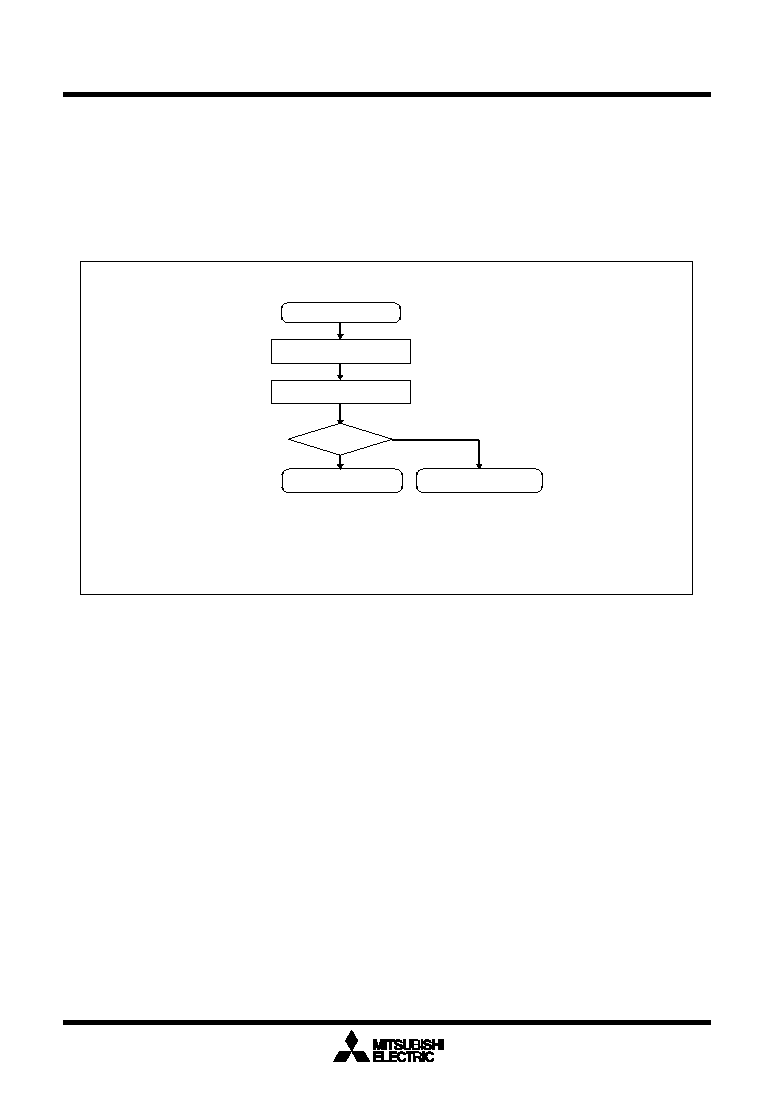

Figure 1.26.7 shows an example of a read lock bit program flowchart.

Figure 1.26.7. Read lock bit status flowchart
