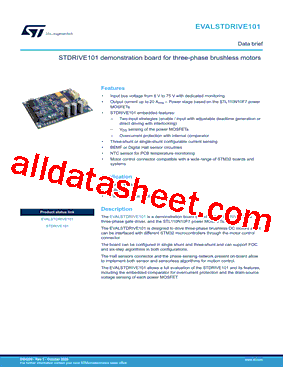

Description
The EVALSTDRIVE101 is a demonstration board based on the STDRIVE101, a three-phase gate driver, and the STL110N10F7 power MOSFETs. The EVALSTDRIVE101 is designed to drive three-phase brushless DC motors and it can be interfaced with different STM32 microcontrollers through the motor control connector. The board can be configured in single shunt and three-shunt and can support FOC and six-step algorithms in both configurations. The Hall sensors connector and the phase sensing network present on-board allow to implement both sensor and sensorless algorithms for motion control. The EVALSTDRIVE101 allows a full evaluation of the STDRIVE101 and its features, including the embedded comparator for overcurrent protection and the drain-source voltage sensing of each power MOSFET. Product status link EVALSTDRIVE101 STDRIVE101 STDRIVE101 demonstration board for three-phase brushless motors EVALSTDRIVE101 Data brief DB4298 - Rev 1 - October 2020 For further information contact your local STMicroelectronics sales office.

Features
■ Input bus voltage from 6 V to 75 V with dedicated monitoring
■ Output current up to 20 Arms – Power stage based on the STL110N10F7 power MOSFETs
■ STDRIVE101 embedded features: – Two input strategies (enable / input with adjustable deadtime generation or direct driving with interlocking) – VDS sensing of the power MOSFETs – Overcurrent protection with internal comparator
■ Three-shunt or single-shunt configurable current sensing
■ BEMF or Digital Hall sensor circuitries
■ NTC sensor for PCB temperature monitoring
■ Motor control connector compatible with a wide range of STM32 boards and systems

Applications
■ Power tools
■ e-Bikes
■ Fans and home appliances
