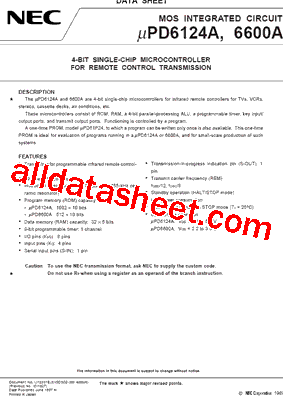

DESCRIPTION

The µPD6124A and 6600A are 4-bit single-chip microcontrollers for infrared remote controllers for TVs, VCRs, stereos, cassette decks, air conditions, etc. These microcontrollers consist of ROM, RAM, a 4-bit parallel-processing ALU, a programmable timer, key input/output ports, and transmit output ports. Functioning is controlled by a program. A one-time PROM, model µPD61P24, to which a program can be written only once is also available. This one-time PROM is ideal for evaluation of programs running in a µPD6124A or 6600A, and for small-scale production of such systems.

FEATURES

• Transmitter for programmable infrared remote controller

• 19 types of instructions

• Instruction execution time: 17.6 µs (with 455-kHz ceramic resonator)

• Program memory (ROM) capacity

• µPD6124A: 1002 × 10 bits

• µPD6600A: 512 × 10 bits

• Data memory (RAM) capacity: 32 × 5 bits

• 9-bit programmable timer: 1 channel

• I/O pins (KI/O): 8 pins

• Input pins (KI): 4 pins

• Serial input pins (S-IN): 1 pin

• Transmission-in-progress indication pin (S-OUT): 1pin

• Transmit carrier frequency (REM) fOSC/12, fOSC/8

• Standby operation (HALT/STOP mode)

• Low power consumption

• Current consumption in STOP mode (TA = 25°C)

• Low-voltage operation

µPD6124A: VDD = 2.2 to 5.5 V

µPD6600A: VDD = 2.2 to 3.6 V
