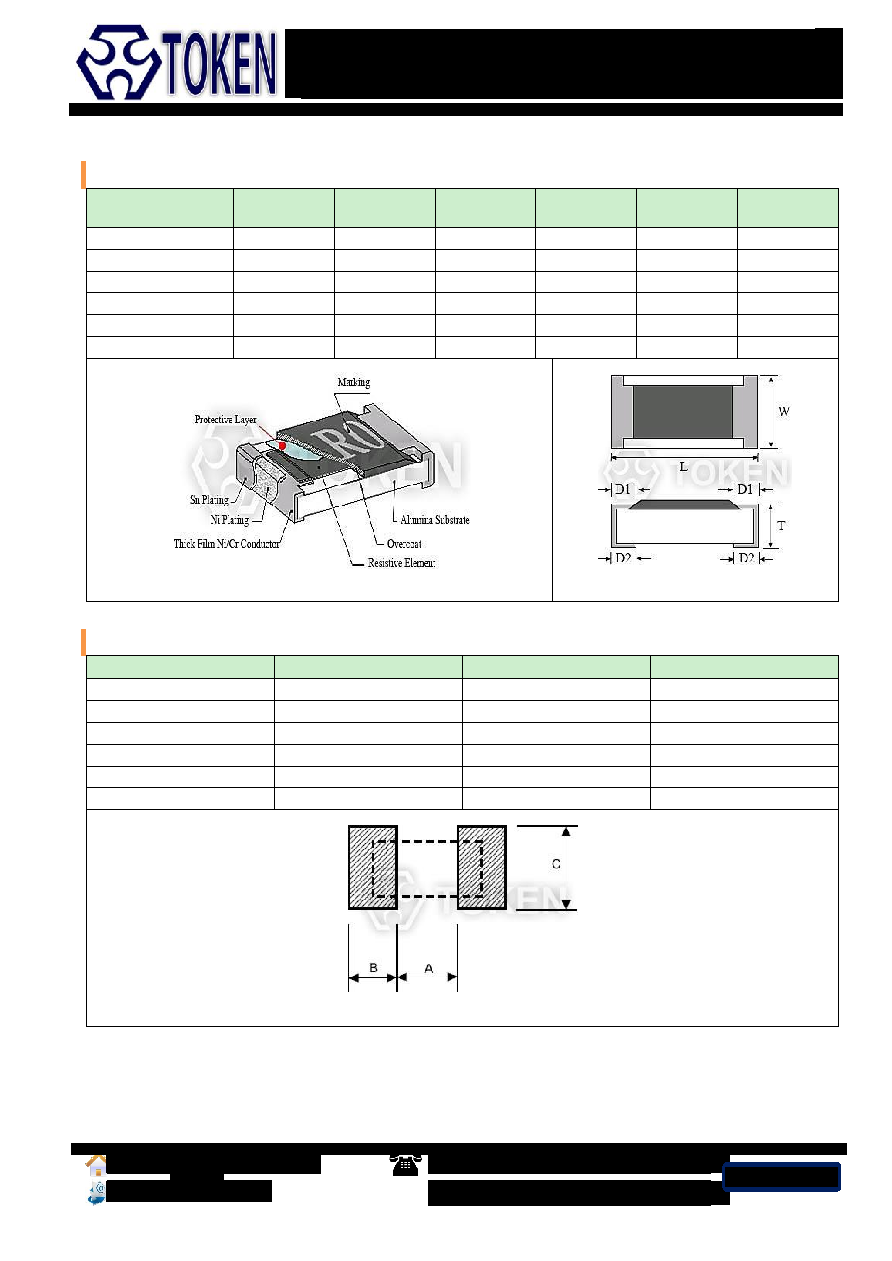

 Dimensions

Dimensions (Unit: mm) (PWR)

Codes

(Unit: mm)

Weight

(g)/1000pcs

PWR03 (0603)

1.60±0.10

0.80±0.10

0.45±0.10

0.30±0.20

2,042

PWR05 (0805)

2.00±0.10

1.25±0.10

0.50±0.10

0.35±0.20

0.40±0.25

4,368

PWR06 (1206)

3.10±0.10

1.55±0.10

0.55±0.10

0.50±0.25

0.50±0.20

8,947

PWR13 (1210)

3.10±0.10

2.60±0.15

0.55±0.10

0.50±0.25

0.50±0.20

15,959

PWR10 (2010)

5.00±0.10

2.50±0.15

0.55±0.10

0.60±0.25

0.50±0.20

24,241

PWR12 (2512)

6.35±0.10

3.10±0.15

0.55±0.10

0.60±0.25

0.50±0.20

39,448

Pulse Withstanding Chips (PWR) Construction

Dimensions (Unit: mm) (PWR)

Recommend Land Pattern (Unit: mm) (PWR)

Codes

A (mm)

B (mm)

C (mm)

PWR03 (0603)

0.90

0.60

0.90

PWR05 (0805)

1.20

0.70

1.30

PWR06 (1206)

2.00

0.90

1.60

PWR13 (1210)

2.00

0.90

2.80

PWR10 (2010)

3.80

0.90

2.80

PWR12 (2512)

3.80

1.60

3.50

Recommend Land Pattern (PWR)
