Multi-layer Chip Inductors - Ferrite

www.ctparts.com

CTML1206HCF

Series

From .47µH to 4.7µH

SPECIFICATIONS

Parts are available in ±20% inductance tolerance only.

Test

SRF

DCR

IDC

Part

Inductance

Freq.

Min.

±30%

Max.

Number

(µH)

(MHz)

(MHz)

(

Ω)

(mA)

CTML1206HCF-R47M

0.47

1MHz

100

0.14

1500

CTML1206HCF-R68M

0.68

1MHz

90

0.15

1500

CTML1206HCF-R82M

0.82

1MHz

80

0.16

1500

CTML1206HCF-1R0M

1.0

1MHz

60

0.16

1400

CTML1206HCF-1R2M

1.2

1MHz

60

0.16

1400

CTML1206HCF-1R5M

1.5

1MHz

50

0.20

1200

CTML1206HCF-1R8M

1.8

1MHz

50

0.20

1200

CTML1206HCF-2R2M

2.2

1MHz

40

0.22

1200

CTML1206HCF-3R3M

3.3

1MHz

30

0.24

1100

CTML1206HCF-4R7M

4.7

1MHz

20

0.30

1100

Not Shown at Actual Size

CHARACTERISTICS

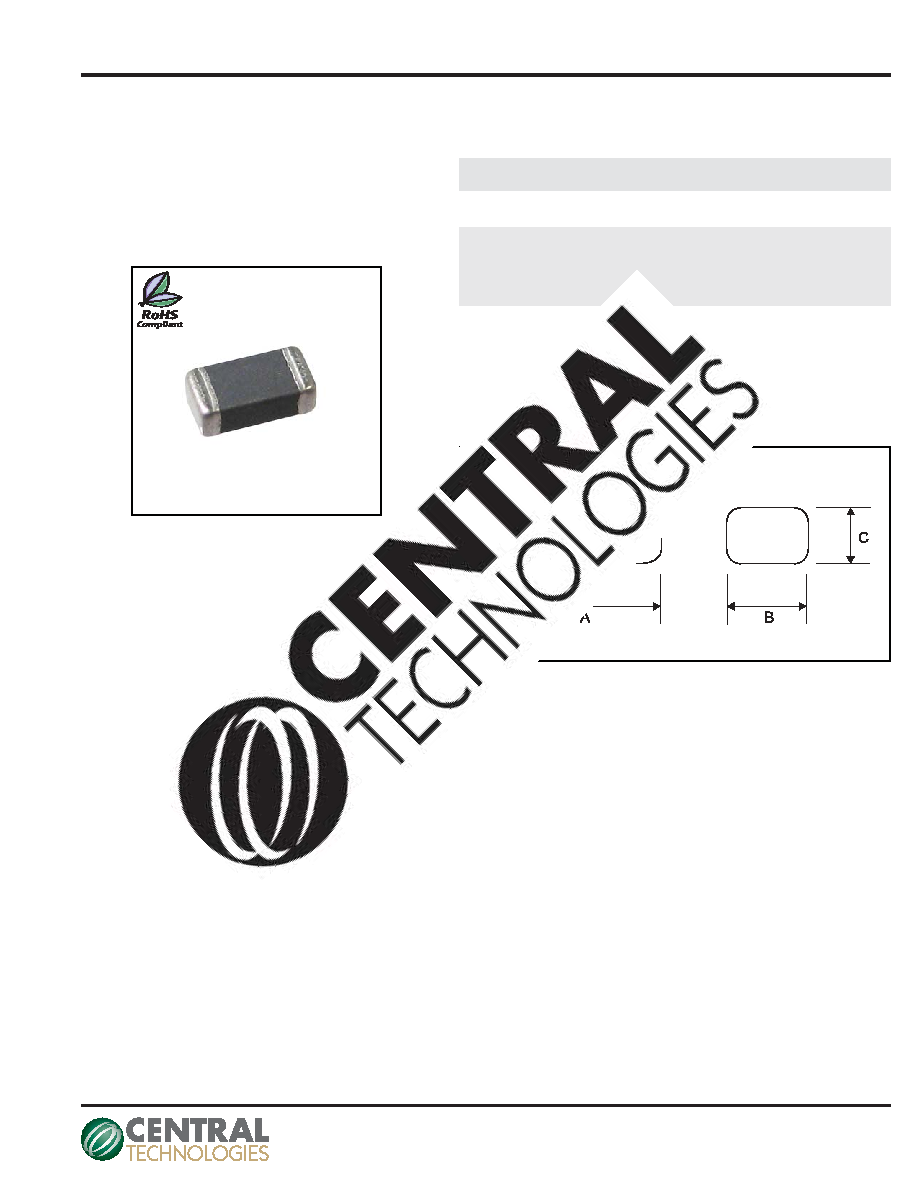

PHYSICAL DIMENSIONS

Description: Ferrite core, multi-layer chip inductor. Magnetic

shielded.

Applications: LC resonant circuits such as oscillator and signal

generators, RF filters, disk drives, audio and video equipment, TV,

radio and telecomunication equipment.

Operating Temperature: -25°C to +85°C

Inductance Tolerance: M = ±20%

Testing: Inductance and Q are tested on an HP4287A at 1MHz,

250mV.

Packaging: Tape & Reel.

Marking: Reels marked with inductance code and tolerance.

Additional Information: Additional electrical & physical

information available upon request.

Samples available. See website for ordering information.

A

B

C

D

3.2±0.2

1.60±0.2

1.1±0.2

0.5±0.3

0.126±0.008

0.062±0.008

0.043±0.008

0.020±0.012

Size

mm

inches
