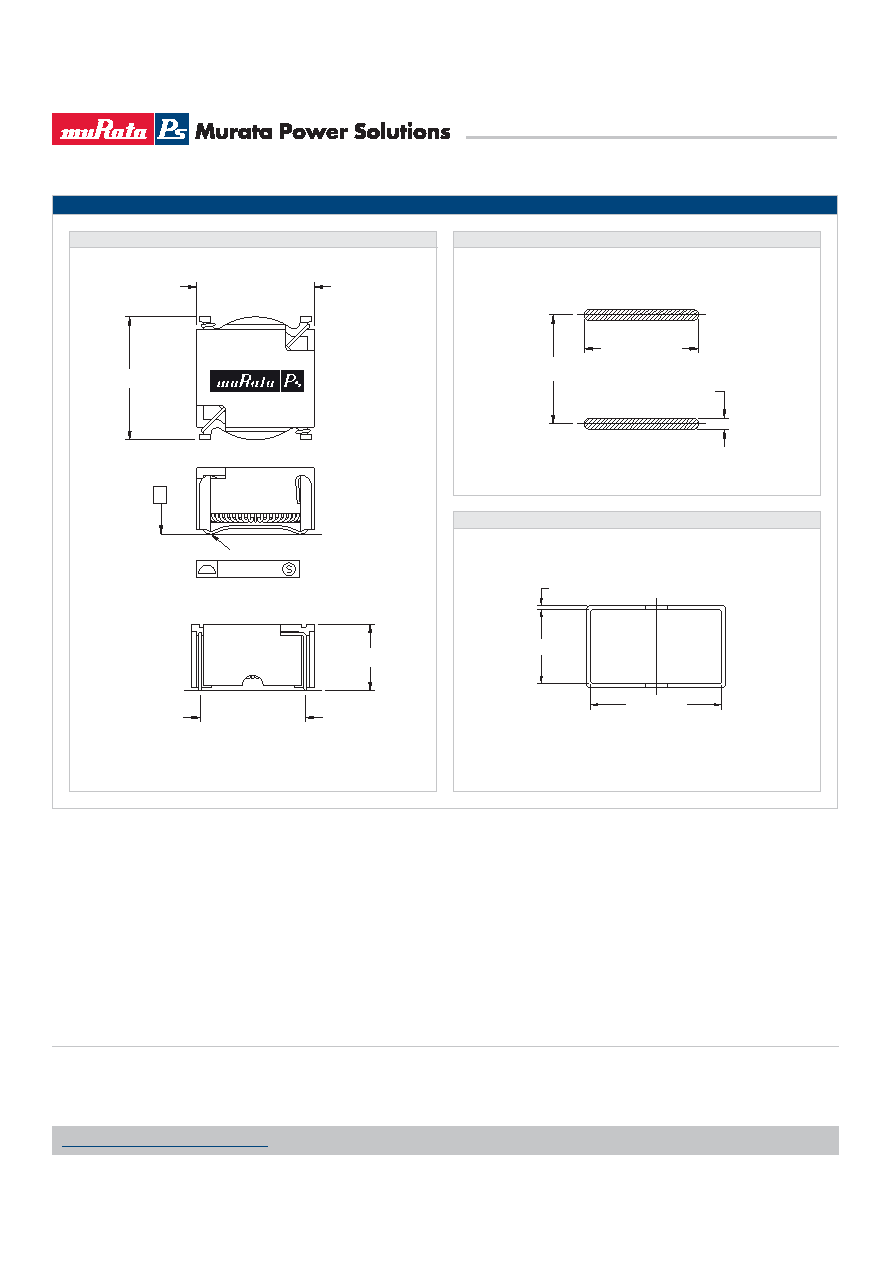

PACKAGE SPECIFICATIONS

MECHANICAL DIMENSIONS

RECOMMENDED FOOTPRINT DETAILS

TUBE OUTLINE DIMENSIONS

All dimensions in mm (inches).

Package weight 5.6g Typ.

All dimensions in mm (inches).

Tube quantity: 25

Tube material: Antistatic coated clear PVC

Tube length: 475±2mm (18.701±0.079)

All dimensions in mm (inches).

16.76 (0.660) Max.

17.53 (0.690) Max.

XYYWW

41330C

0.127 (0.005)

x4 Places

S

15.58 (0.614)

14.01 (0.552)

9.91 (0.390) Max.

15.75 (0.620)

14.99 (0.590)

1.52 (0.060)

18.00 (0.709)

10.10 (0.398)

0.60±0.15 (0.024±0.006)
