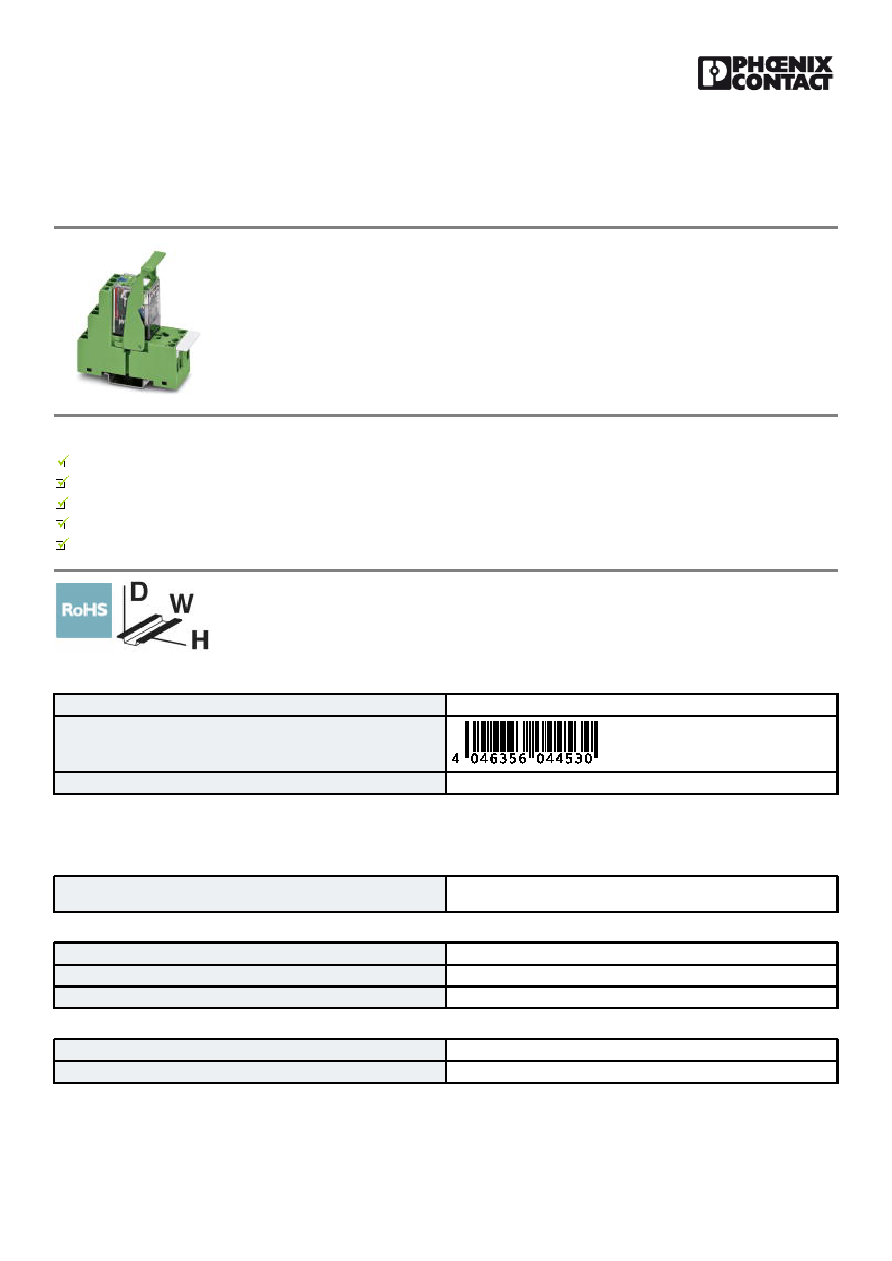

1 / 5 page

https://www.phoenixcontact.com/pi/products/2834643

07/23/2018 Page 1 / 5

Relay Module - PR2-RSC3-LDP-24DC/2X21 - 2834643

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

Preassembled relay modules with screw connection, consisting of: relay base, industrial relay with integrated

LED, free-wheeling diode and engage/disengage manual actuate lever, and retaining bracket. Input voltage:

24 V DC, two PDTs, 10 A

Why buy this product

With DC types, freewheeling diode is integrated in relay

Relay with detectable manual operation and status LED

Logical contact arrangement thanks to 1/3-level relay base

Mechanical switch position indicator

4 PDT types with multi-layer gold contacts

Key Commercial Data

Packing unit

5 STK

GTIN

4046356044530

Technical data

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download

area

Dimensions

Width

27 mm

Height

78.5 mm

Depth

86 mm

Ambient conditions

Ambient temperature (operation)

-25 °C ... 60 °C

Ambient temperature (storage/transport)

-25 °C ... 70 °C

Coil side
