Data Sheet
ADCMP606/ADCMP607
Rev. C | Page 9 of 14
VCM AT VCC = 2.5V
1.1
1.2
1.3
1.4
–0.2
0.2
0.6
1.0
1.4
1.8
2.2
2.6
3.0
PROPAGATION DELAY FALL ns
PROPAGATION DELAY RISE ns

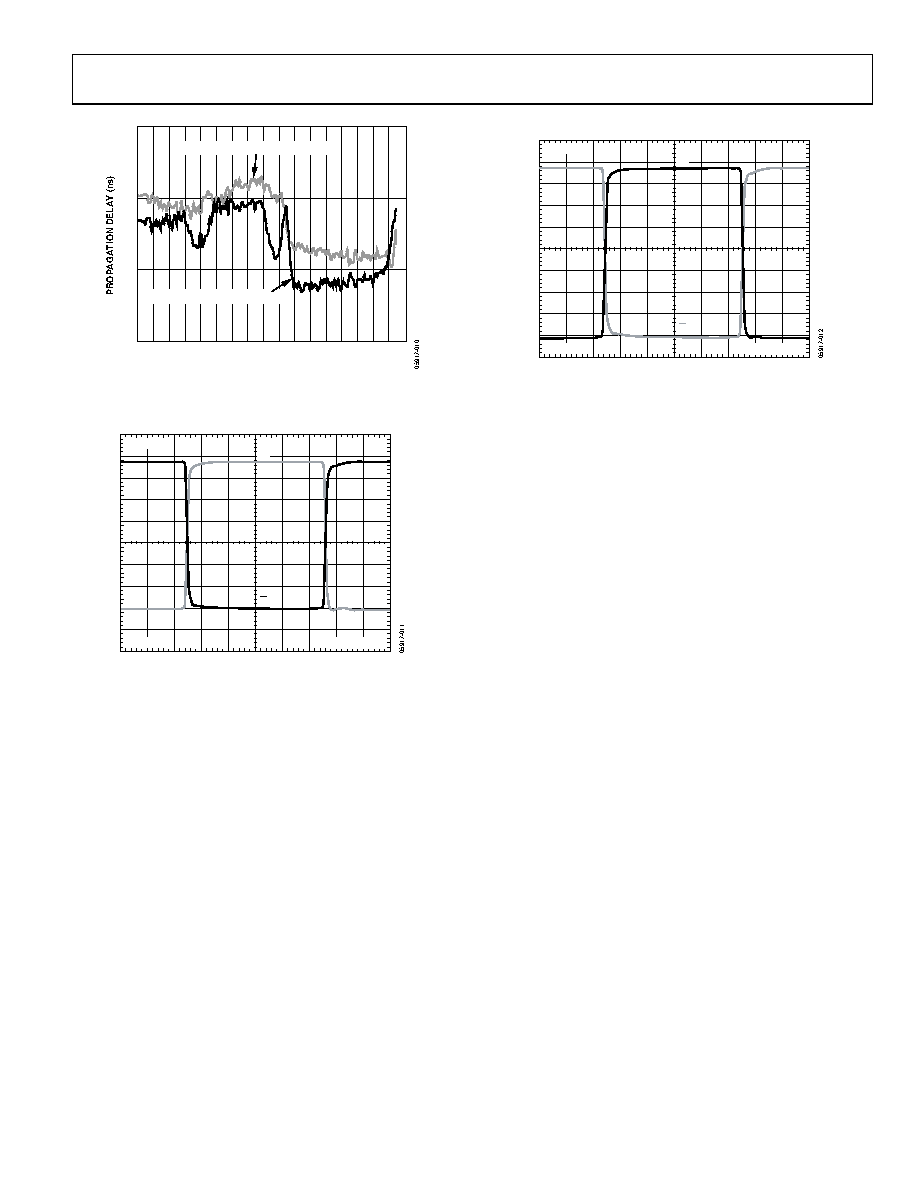

Figure 11. Propagation Delay vs. Input Common-Mode Voltage
2.050V
2.000ns/DIV
2.550V
Q
Q
Figure 12 .Output Waveform at VCC = 2.5 V
Q
Q
5.050V
2.000ns/DIV
5.550V
Figure 13. Output Waveform at VCC = 5.5 V
