Data Sheet
SSM3302
Rev. A | Page 9 of 20

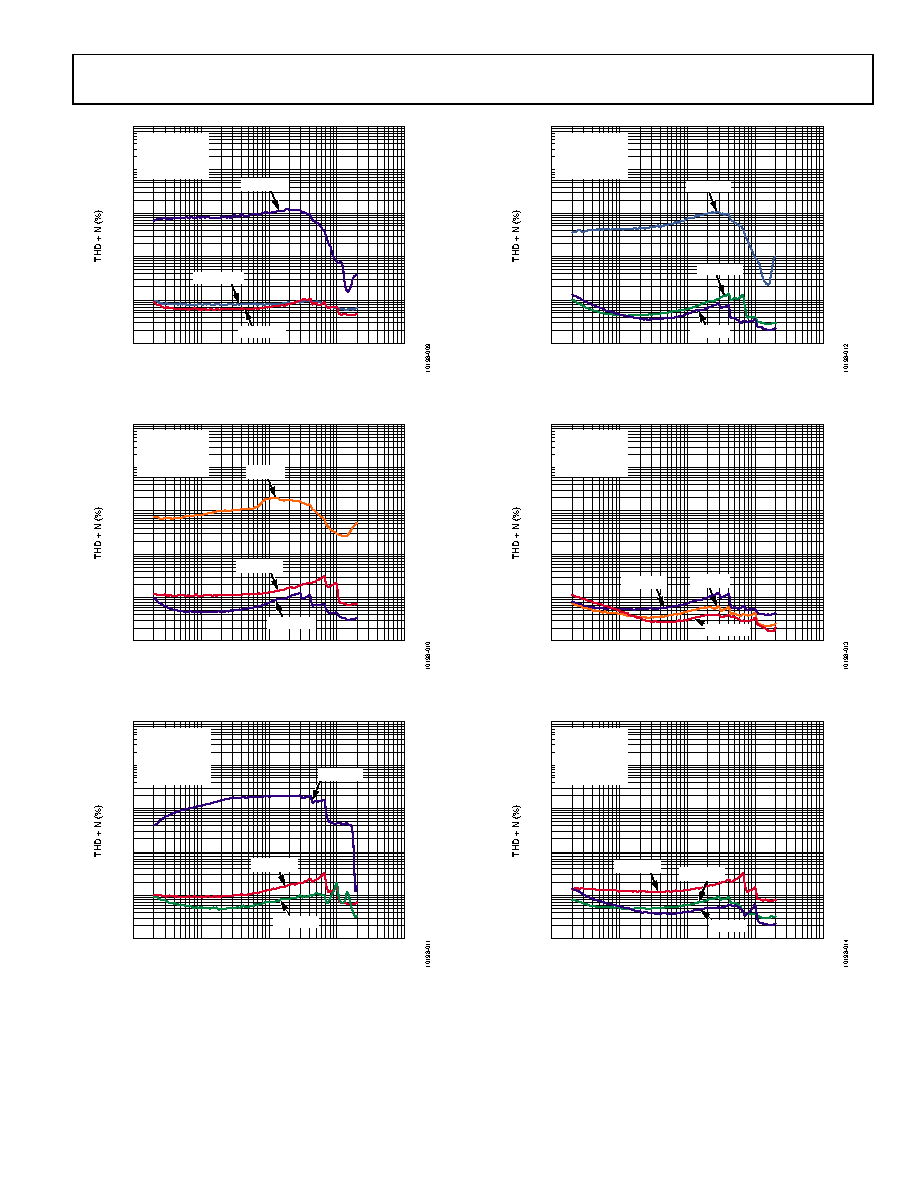

Figure 9. THD + N vs. Frequency;
RL = 8 Ω; PVDD = 7 V; PO = 0.25 W, PO = 0.5 W, PO = 2.5 W
Figure 10. THD + N vs. Frequency;
RL = 4 Ω; PVDD = 7 V; PO = 0.5 W, PO = 2.5 W, PO = 5 W
Figure 11. THD + N vs. Frequency;
RL = 2 Ω; Mono Mode; PVDD = 7 V; PO = 0.5 W, PO = 2.5 W, PO = 3.5 W
Figure 12. THD + N vs. Frequency;
RL = 8 Ω; PVDD = 12 V; PO = 2.5 W, PO = 5 W, PO = 7.5 W
Figure 13. THD + N vs. Frequency;
RL = 4 Ω; PVDD = 12 V; PO = 2.5 W, PO = 5 W, PO = 10 W
Figure 14. THD + N vs. Frequency;
RL = 2 Ω; Mono Mode; PVDD = 12 V; PO = 0.5 W, PO = 2.5 W, PO = 5 W
100
10
0.001
0.01
0.1
1
10
10k
1k
100
100k
FREQUENCY (Hz)
PVDD = 7V
RL = 8Ω + 33µH
GAIN = 9dB
EDGE = LOW
PO = 0.5W
PO = 0.25W
PO = 2.5W
100
10
0.001
0.01
0.1
1
10
10k
1k
100
100k
FREQUENCY (Hz)
PVDD = 7V
RL = 4Ω + 15µH
GAIN = 9dB
EDGE = LOW
PO = 2.5W
PO = 0.5W
PO = 5W
100
10
0.001
0.01
0.1
1
10
10k
1k
100
100k
FREQUENCY (Hz)
PVDD = 7V
RL = 2Ω + 7.5µH
GAIN = 9dB
EDGE = 0V
MONO = 5V
PO = 2.5W
PO = 0.5W
PO = 3.5W
100
10
0.001
0.01
0.1
1
10
10k
1k
100
100k
FREQUENCY (Hz)
PVDD = 12V
RL = 8Ω + 33µH
GAIN = 9dB
EDGE = LOW
PO = 5W
PO = 7.5W
PO = 2.5W
100
10
0.001
0.01
0.1
1
10
10k
1k
100
100k
FREQUENCY (Hz)
PVDD = 12V
RL = 4Ω + 15µH
GAIN = 9dB
EDGE = LOW
PO = 10W
PO = 2.5W
PO = 5W
100
10
0.001
0.01
0.1
1
10
10k
1k
100
100k
FREQUENCY (Hz)
PVDD = 12V
RL = 4Ω + 7.5µH
GAIN = 9dB
EDGE = LOW
MONO = 5V
PO = 5W
PO = 0.5W
PO = 2.5W
