I2C INTERFACE TIMING AND INTERNAL REGISTER DESCRIPTION

SLAVE ADDRESS [6:0]

R/W

CTRL

0 = WR

1 = RD

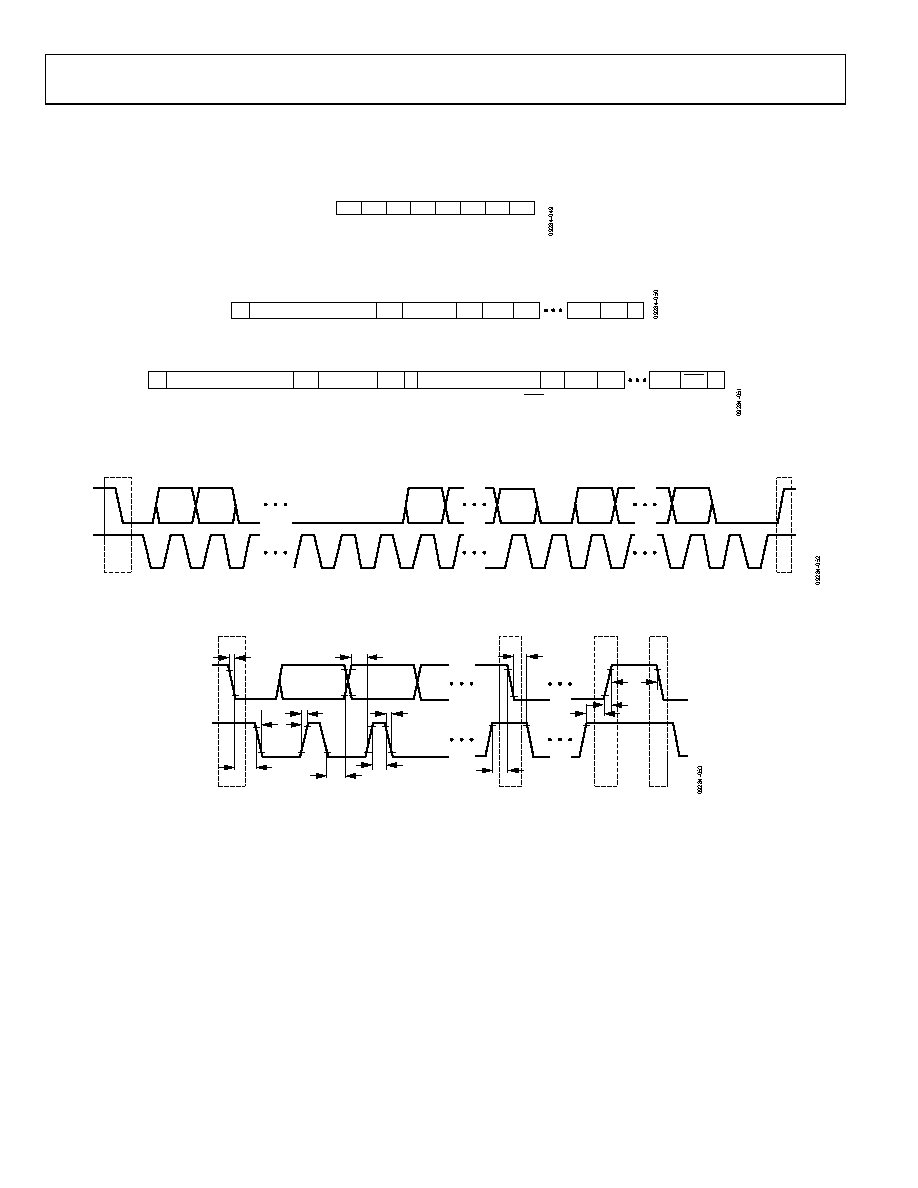

Figure 44. Slave Address Configuration

SLAVE ADDR, LSB = 0 (WR) A(S)

A(S)

DATA

SUB ADDR

A(S)

DATA

Figure 45. I2C Write Data Transfer

S = START BIT

P = STOP BIT

A(S) = ACKNOWLEDGE BY SLAVE

A(M) = ACKNOWLEDGE BY MASTER

A(M) = LACK OF ACKNOWLEDGE BY MASTER

SLAVE ADDR, LSB = 0 (WR)

SLAVE ADDR, LSB = 1 (RD)

A(S)

SUB ADDR

A(S) DATA A(M)

DATA

A(M)

Figure 46. I2C Read Data Transfer

START BIT

STOP BIT

ACK

SLADDR[4:0]

SLAVE ADDRESS

SUB ADDRESS

DATA

SUB ADDR[6:1]

DATA[6:1]

SCL

SDA

Figure 47. I2C Data Transfer Timing

tBUF

SDA

SCL

tLOW

tHD;STA

tHD;DAT

tSU;DAT

tHIGH

tSU;STA

tSU;STO

tHD;STA

Figure 48. I2C Port Timing Diagram
