Specification
NET2890 USB Interface Controller
____________________________________________________________________________________
NetChip Technology, Inc., 1999
335 Pioneer Way, Mountain View, California 94041
TEL (650) 526-1490
FAX (650) 526-1494
http://www.netchip.com
Rev 2.0, Draft 9, July 16, 1999
13

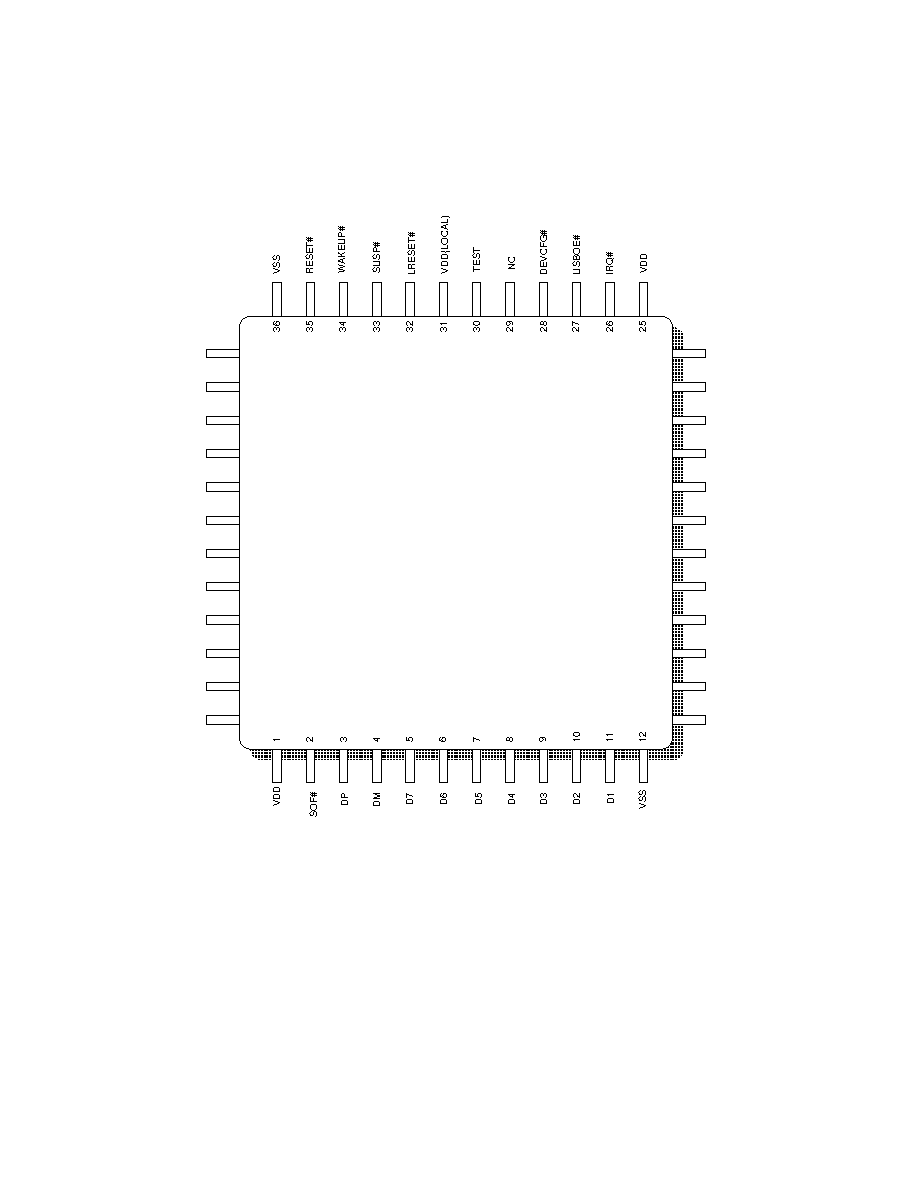

2. Pin Connection Diagram
BUSPWR#
NET 2890
QFP12 - 48 pin
(Top View)
VDD
D0
CS#
LCLK
IOR#
IOW#
DRQ
DACK#
EOT#
PWRGOOD#
VSS
VDD
A0
A1
VSS
13
14
15
16
17
18
19
20
21
22
23
24
37
38
39
40
41
42
43
44
45
46
47
48
A2
A3
A4
VDD
CLK IN
CLK OUT
VSS
TESTOUT
