CMS1-1-R datasheet(3/6 Pages) EATON

Datenblatt-Suchmaschine für elektronische Bauteile

CMS1-1-R Datenblatt(PDF) 3 Page - Eaton All Rights Reserved.

Teilenummer	CMS1-1-R

Bauteilbeschribung	Common mode inductors, surface mount

PDF	6 Pages

Scroll/Zoom	100%

Hersteller	EATON [Eaton All Rights Reserved.]

Direct Link	https://www.eaton.com

Logo

3 / 6 page

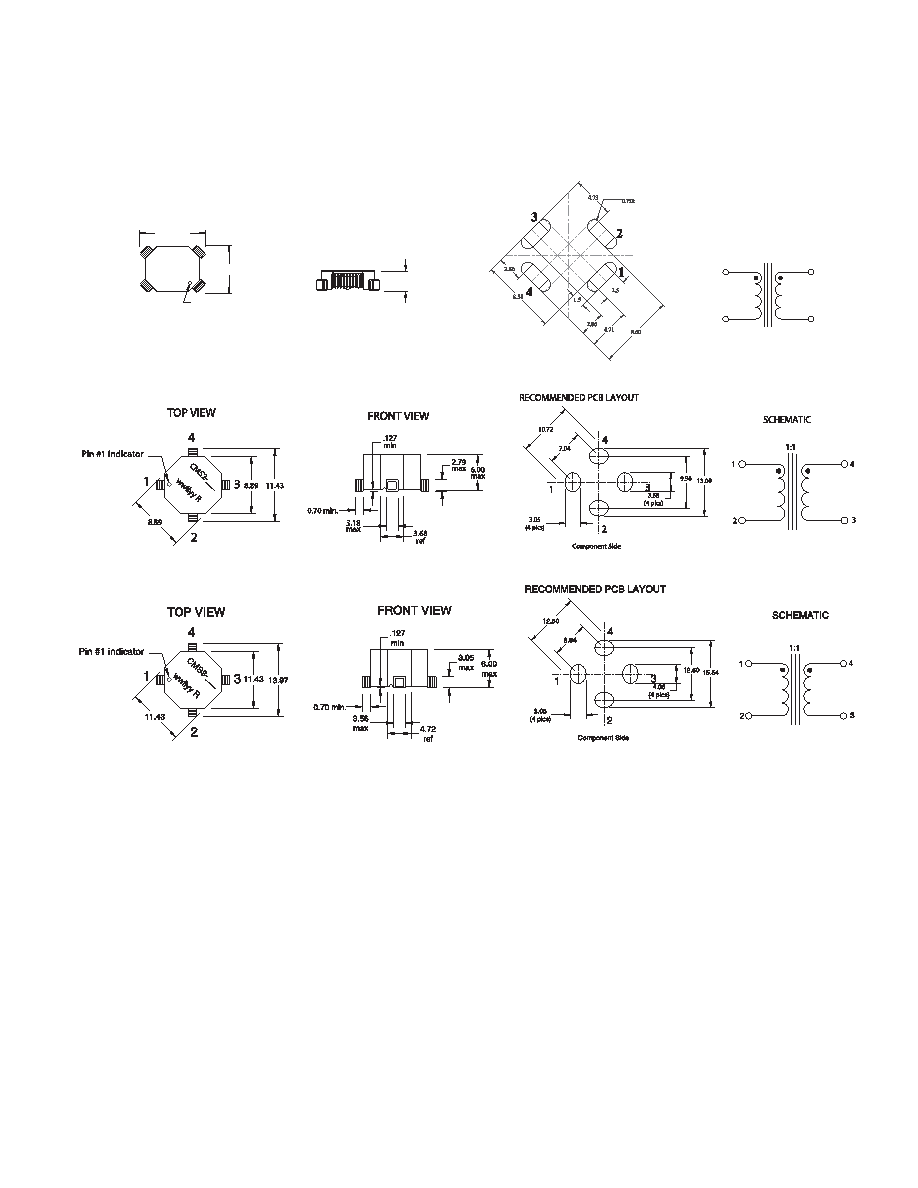

Technical Data

4313

Effective October 2015

CMS

Common mode inductors, surface mount

www.eaton.com/elx

33333

44444

22222

11111

TOP VIEW

9.4 max

7.2 max

Pin 1 indicator

White dot

wwllyy R

CMS1-

FRONT VIEW

2.6 max

RECOMMENDED PCB LAYOUT

SCHEMATIC

1:1

wwllyy = Date code R = Revision level

Dimensions–mm

CMS1

CMS2

CMS3
