Data Sheet
ADMV4420
Rev. A | Page 13 of 61
30
28
26
24
22
20
18
14
10
16
12
RF FREQUENCY (GHz)
+85°C
+25°C
–40°C

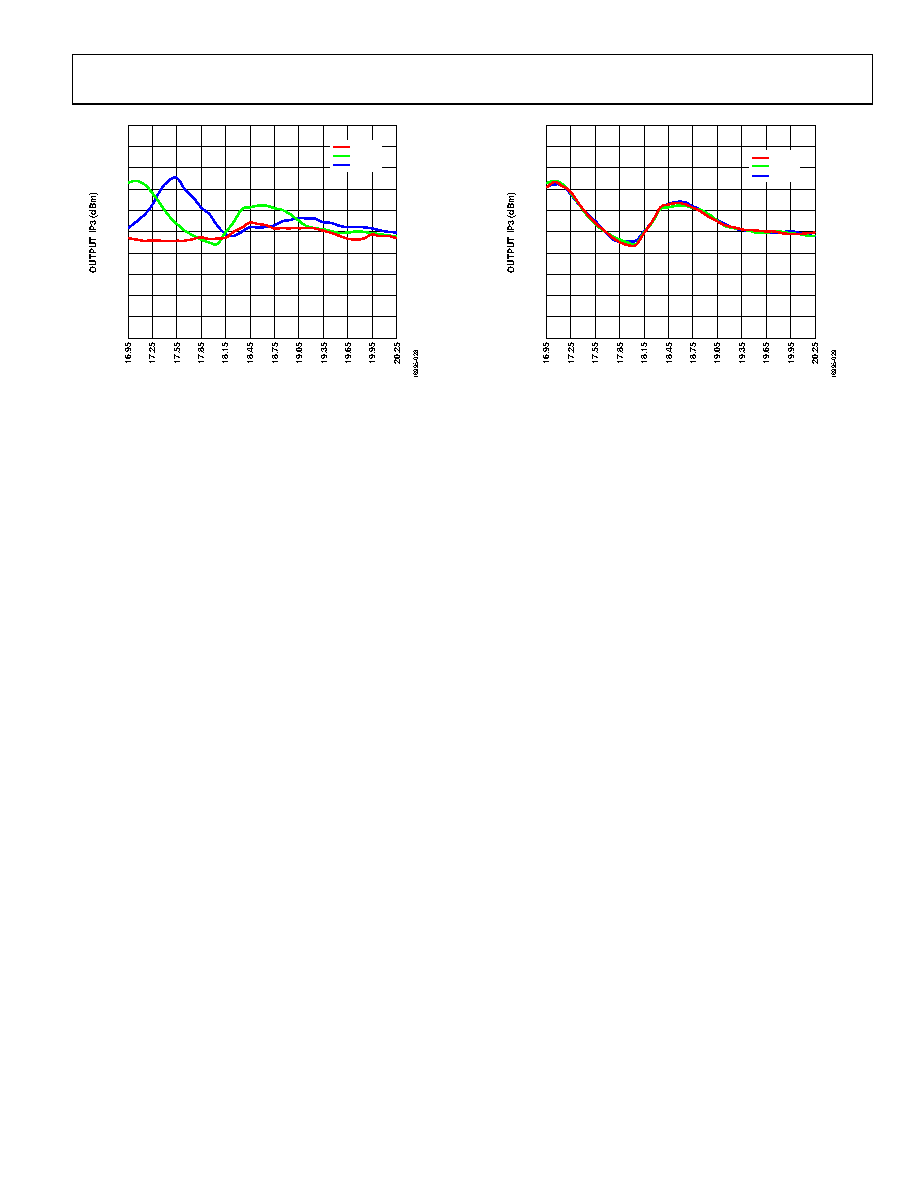

Figure 30. Output IP3 vs. RF Frequency at Various Temperatures
30
28
26
24
22
20
18
14
10
16
12
RF FREQUENCY (GHz)
5.25V
5.00V
4.75V
Figure 31. Output IP3 vs. RF Frequency at Various Supply Voltages,
TA = 25°C
