Data Sheet

ADRF5545A

Rev. A | Page 19 of 20

APPLICATIONS INFORMATION

To generate the evaluation PCB used in a typical application

circuit (see the ADRF5545A-EVALZ user guide for more

information), use proper RF circuit design techniques. Signal

lines at the RF port must have a 50 Ω impedance, and the

package ground leads and the backside ground slug must

connect directly to the ground plane. The evaluation board

shown in Figure 47 is available from Analog Devices, Inc., upon

request.

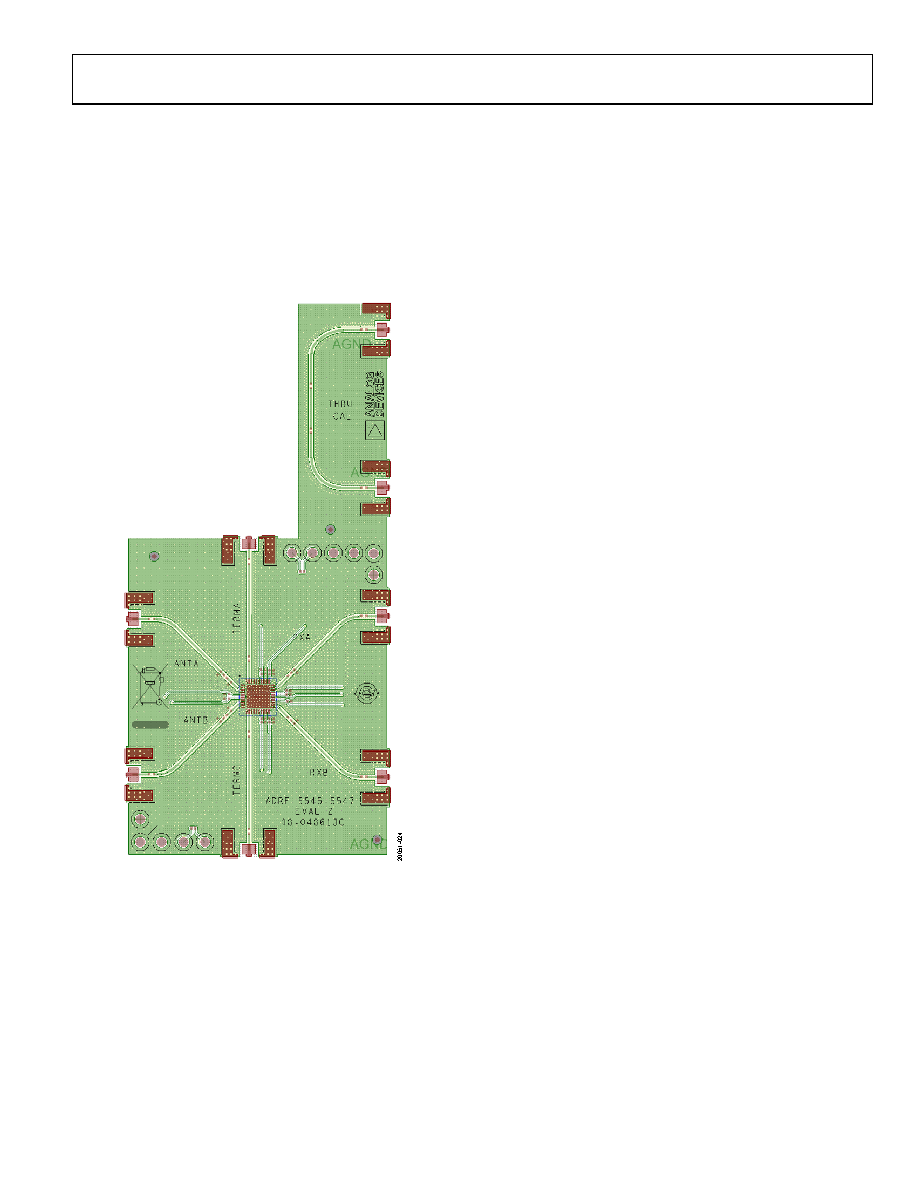

Figure 47. ADRF5545A-EVALZ Evaluation Board

2.6 GHZ OPERATION

The ADRF5545A can be used for applications at 2.6 GHz (see

the ADRF5545A-EVALZ user guide for more information).

Table 2 shows the specifications of this evaluation board tuned

at 2.6 GHz. See Figure 27 to Figure 46 for the typical

performance plots reflecting these specifications at 2.6 GHz.
