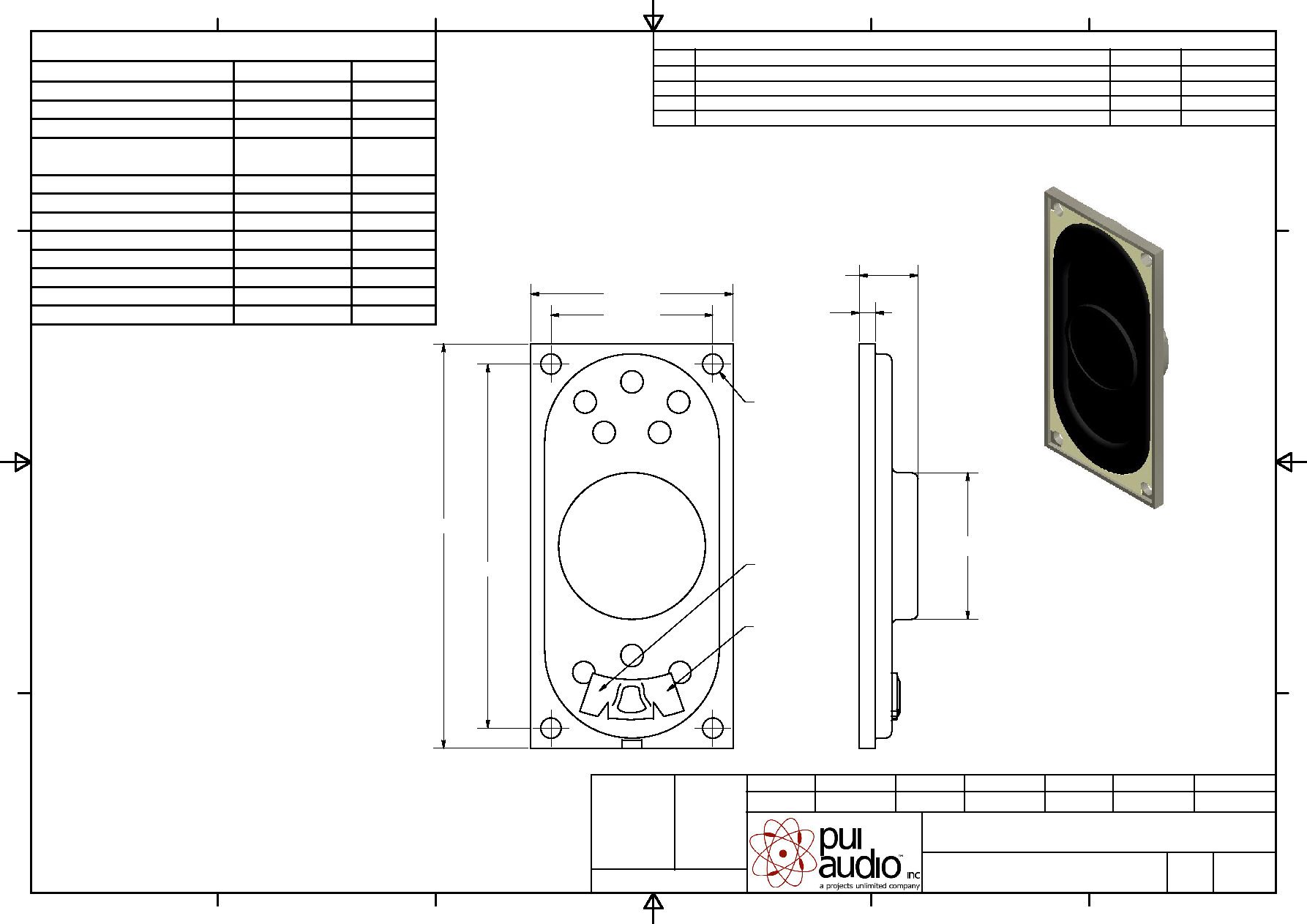

Speaker

AS04008CO-R

J.A.F.

E.P.

B.R.

12/12/2008

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

2/21/2006

Date

2/21/2006

Date

2/21/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS04008CO-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

2/21/2006

A

REVISED POWER RATINGS, SPL & FREQ.

3/6/2006

E.P.

B

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

12/22/2008

B.R.

C

REVISED RESONANT FREQUENCY

9/25/2012

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

2

W

MAX INPUT POWER

3

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 1W/0.5M

(AT 0.8, 1.0, 1.2, 1.5 kHz)

83

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

500

20%

Hz

FREQUENCY RANGE

200 ~ 20,000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

CLOTH

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-20 ~ +60

C

WEIGHT

7.6

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

20

0.2

16

0.2

36

0.2

40

0.2

2 (4)

1.6

0.15

5.8

0.3

14.5

0.3

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

2003, Projects Unlimited Inc.

SPEAKER

TERMINAL

(+)

SPEAKER

TERMINAL

(-)
