1 / 1 page

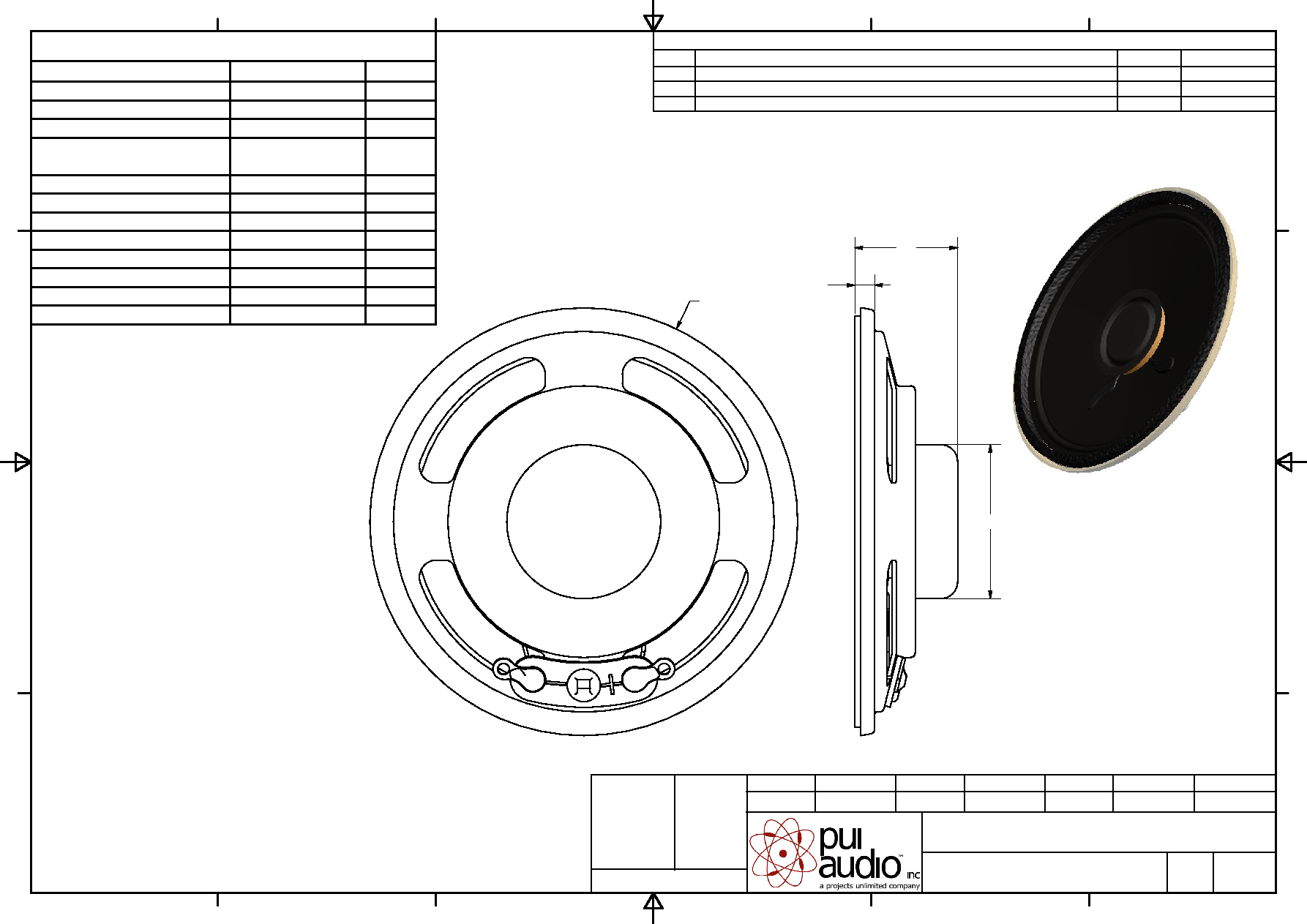

Speaker

AS05008PR-WR-R

J.D.

E.P.

B.R.

9/25/2007

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

5/8/2006

Date

5/9/2006

Date

5/9/2006

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE 0.5 AND

ANGLES ARE 3 .

AS05008PR-WR-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE

APPROVED

-

RELEASED FROM ENGINEERING

5/8/2006

A

REVISED TO INVENTOR 3-D DRAWING TEMPLATE

9/25/2007

B.R.

B

REVISED SPECS. AND DIMENSIONS OF PART, ADDED NOTE 5

8/3/2011

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

1

W

MAX INPUT POWER

1.5

W

IMPEDANCE

8

15%

OHM

OUTPUT SPL @ 1W/1M

(AT 0.6, 0.8, 1.0, 1.2 kHz)

84

3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

550

20%

Hz

FREQUENCY RANGE

550 ~ 5000

Hz

HOUSING MATERIAL

METAL

-

CONE MATERIAL

TREATED PAPER

-

MAGNET MATERIAL

Nd-Fe-B

-

OPERATING TEMPERATURE

-30 ~ +55

C

WEIGHT

14.8

grams

NOTES:

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

4. CONE HAS BEEN TREATED FOR WATER RESISTANCE.

5. BASE SPEAKER PUI# AS05008PR-A-R

2003, Projects Unlimited Inc.

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

50

12

2.3

0.3

18

0.3
