1

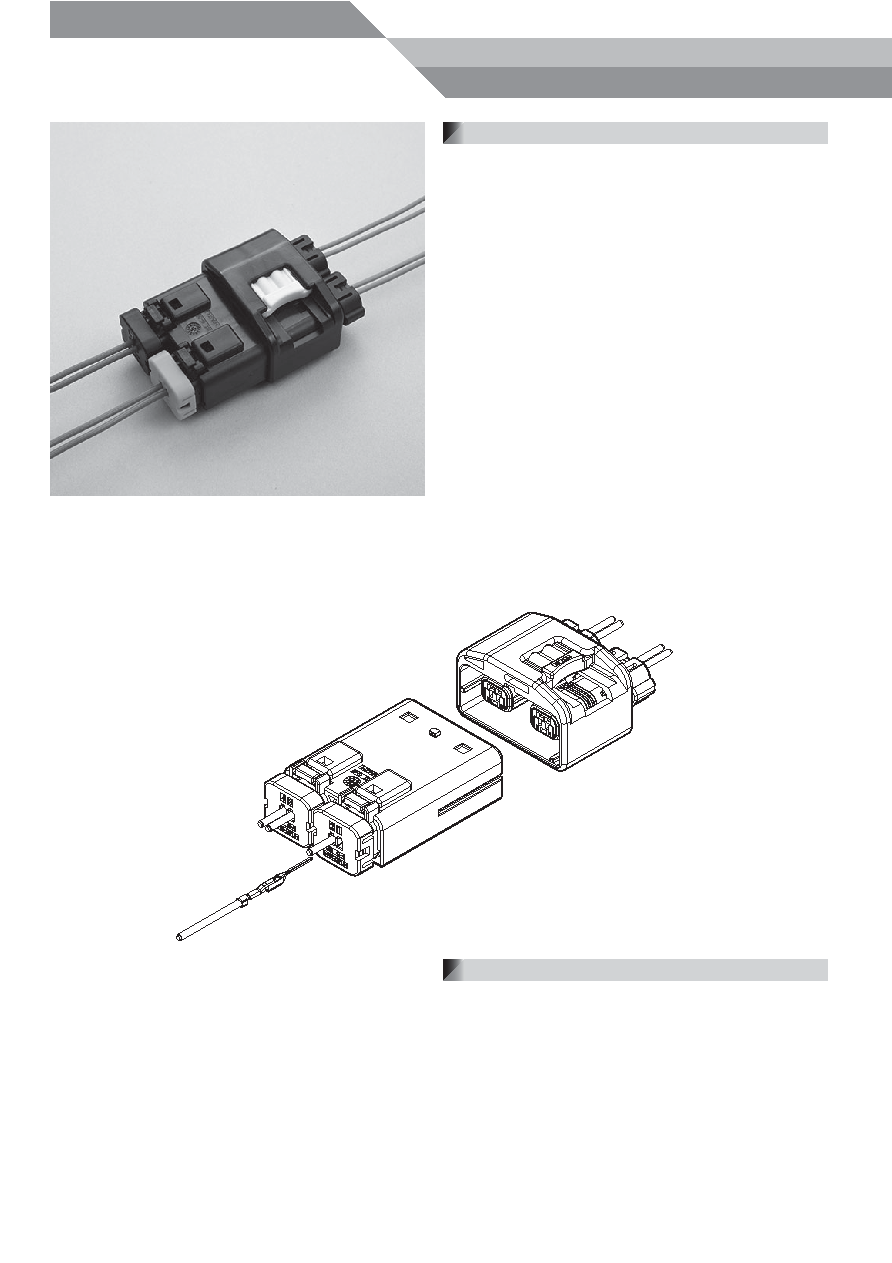

SISCCONNECTOR Wire-to-wire/Sealedconnector

Wire-to-wire/Sealed connector

0.64 mm mat sealed wire to wire connector with rigid

design and spring lock mechanism.

Spring force prevents half-mating during mating and keeps

constant rigid connection between male and female

connector.

●0.64 mm Mat Sealed Connector

●Anti Vibration Mechanism

High reliability rigid connector enables to keep

higher durability at shock and vibration environment.

●Go / No-Go Mating System

Compression spring prevents half-mating.

●Current rating: 5 A AC, DC max.

●Withstanding voltage: 1,000 VAC/minute

●Temperature range: -40°C to +120°C

(including temperature rise in applying

electrical current)

●Contact resistance: Initial value/ 10 mΩmax.

After environmental tests/ 20 mΩ max.

●Insulation resistance: 100 MΩmin.

●Applicable wire: AVSS/AESSXF

0.3 mm2 to 0.5 mm2

* Compliant with ELV/RoHS.

* Contact JST for details.

Features

Specifications
