Specifications

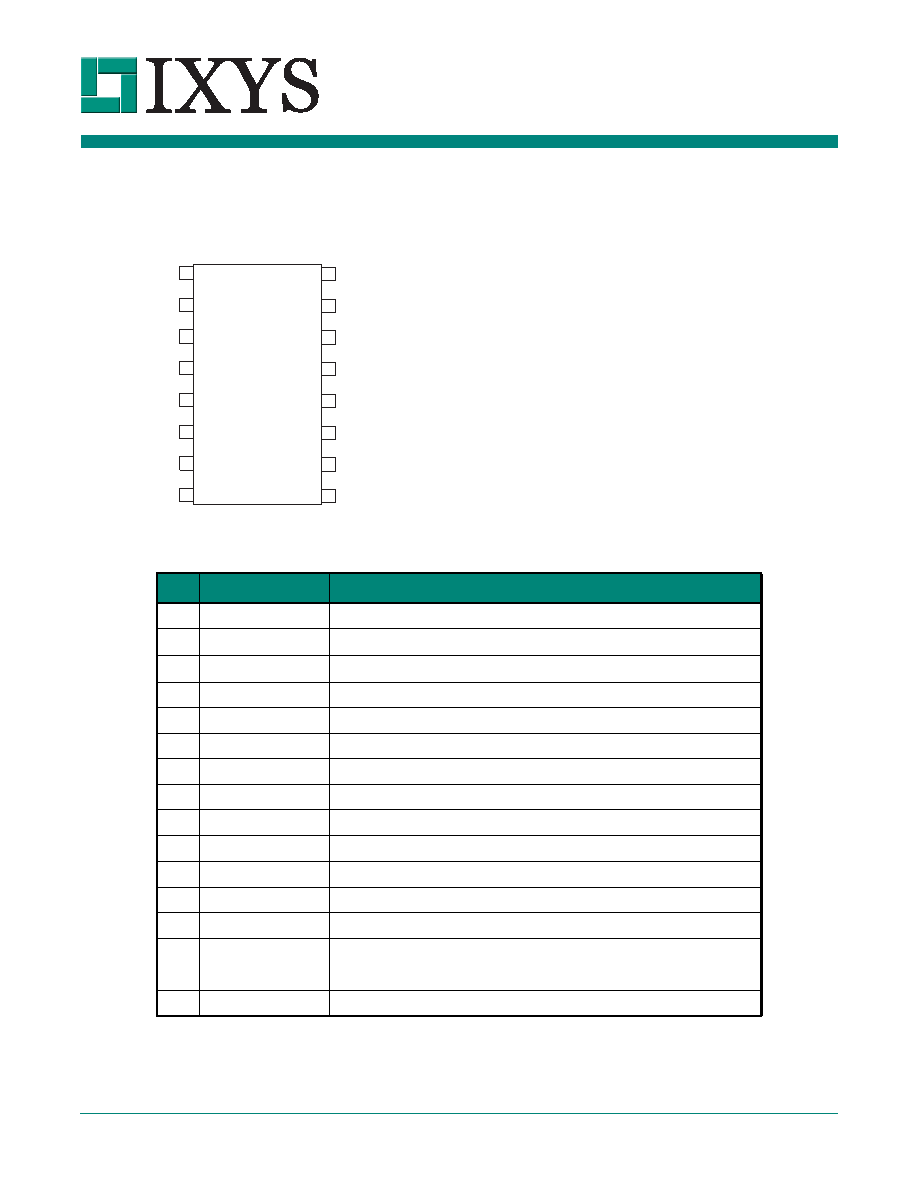

1.1 Package Pinout: 16-Pin SOIC Package

1.2 Pin Description: 16-Pin SOIC Package

1

16

2

15

3

14

4

13

5

12

6

11

7

10

8

9

V

DD

OUTSRC

V

DD

DESAT

FAULT

IN

COM

VREG

OUTSNK

V

SS

OUTSOFT

INSOFT

CAP

GND

V

SS

SET

IX4351

Pin#

Name

Description

1OUTSRC

Gate driver source output

2

Positive supply voltage for gate driver outputs and logic circuitry

3

Positive supply voltage for gate driver outputs and logic circuitry

4DESAT

Sense input for the desaturation detection comparator

5FAULT

Open-Drain Fault status output

6IN

Logic input

7COM

Common ground connection

8VREG

4.6V regulator output

9

SET

Negative bias voltage set input

10

Negative drive voltage supply

11

GND

Charge pump ground connection

12

CAP

Flying charge pump capacitor connection

13

INSOFT

Soft shutdown comparator input

14

OUTSOFT

Soft shutdown sink driver output

15

Negative drive voltage supply

16

OUTSNK

Gate driver sink output
