TS2411

3-6

2004/09 rev. B

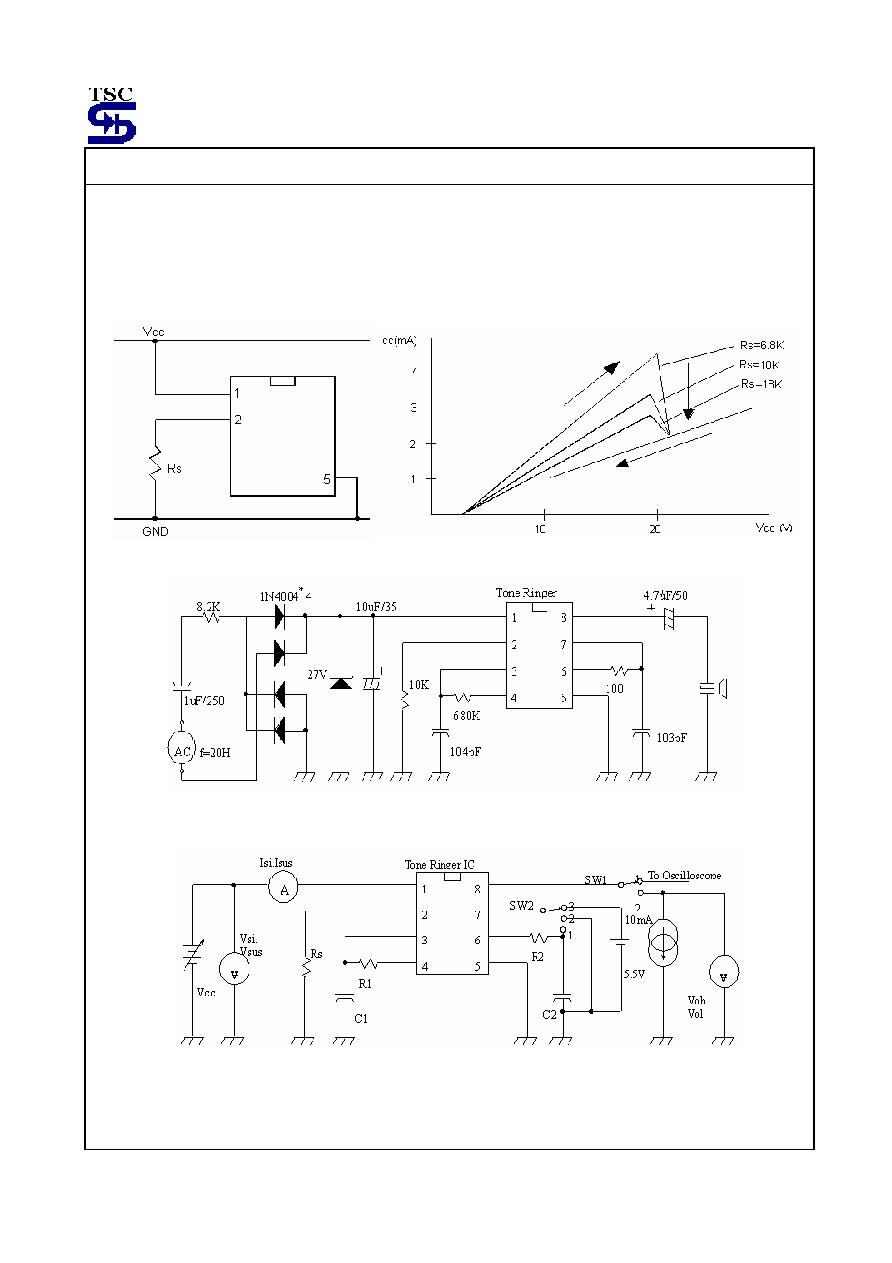

Application Circuit

In the IC, the supply initiation current (lsi) can be changed using the RSL Pin. As show is the diagram, the RSL (Pin 2)

is grounded through resistor Rs. By changing the Rs value, supply initiation current can be changed.

Supply voltage (Vcc) vs. supply current (lcc) characteristics resulting from changes in the value of Rs are shown in the

following diagram.

Figure 1. Ringing Start Voltage Test Circuit

Figure 2. Test Circuit (1)
