IS25LP032D
IS25WP032D
Integrated Silicon Solution, Inc.- www.issi.com
57
Rev. A12
08/04/2020
8.15 WRITE DISABLE OPERATION (WRDI, 04h)
The Write Disable (WRDI) instruction resets the WEL bit and disables all write instructions. The WRDI instruction
is not required after the execution of a write instruction, since the WEL bit is automatically reset.

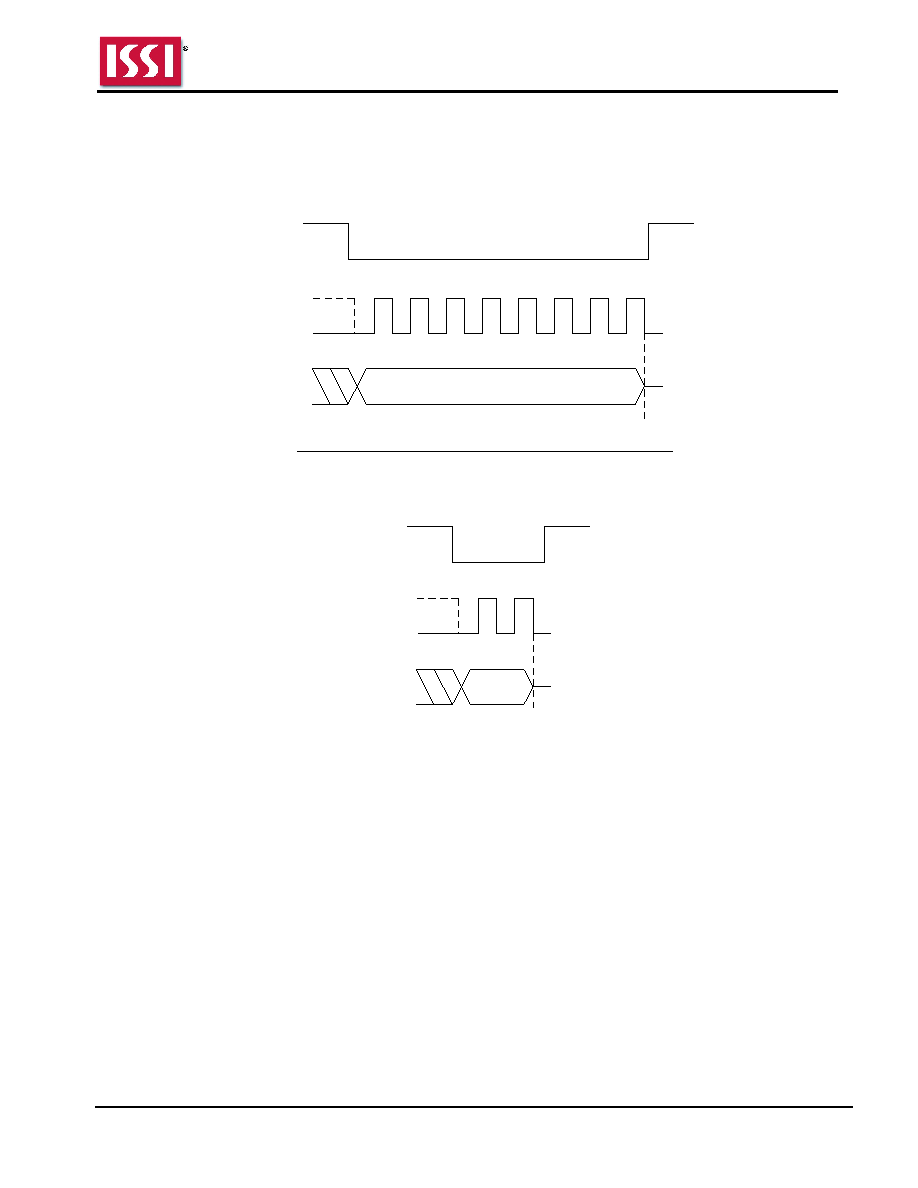

Figure 8.24 Write Disable Sequence In SPI Mode
Instruction = 04h
CE#
SCK
SI
0
1
2
3
4
5
6
7
Mode 3
Mode 0
SO
High Impedance
Figure 8.25 Write Disable Sequence In QPI Mode
04h
CE#
SCK
IO[3:0]
0
1
Mode 3
Mode 0
