nRF24AP2-USB Product Specification

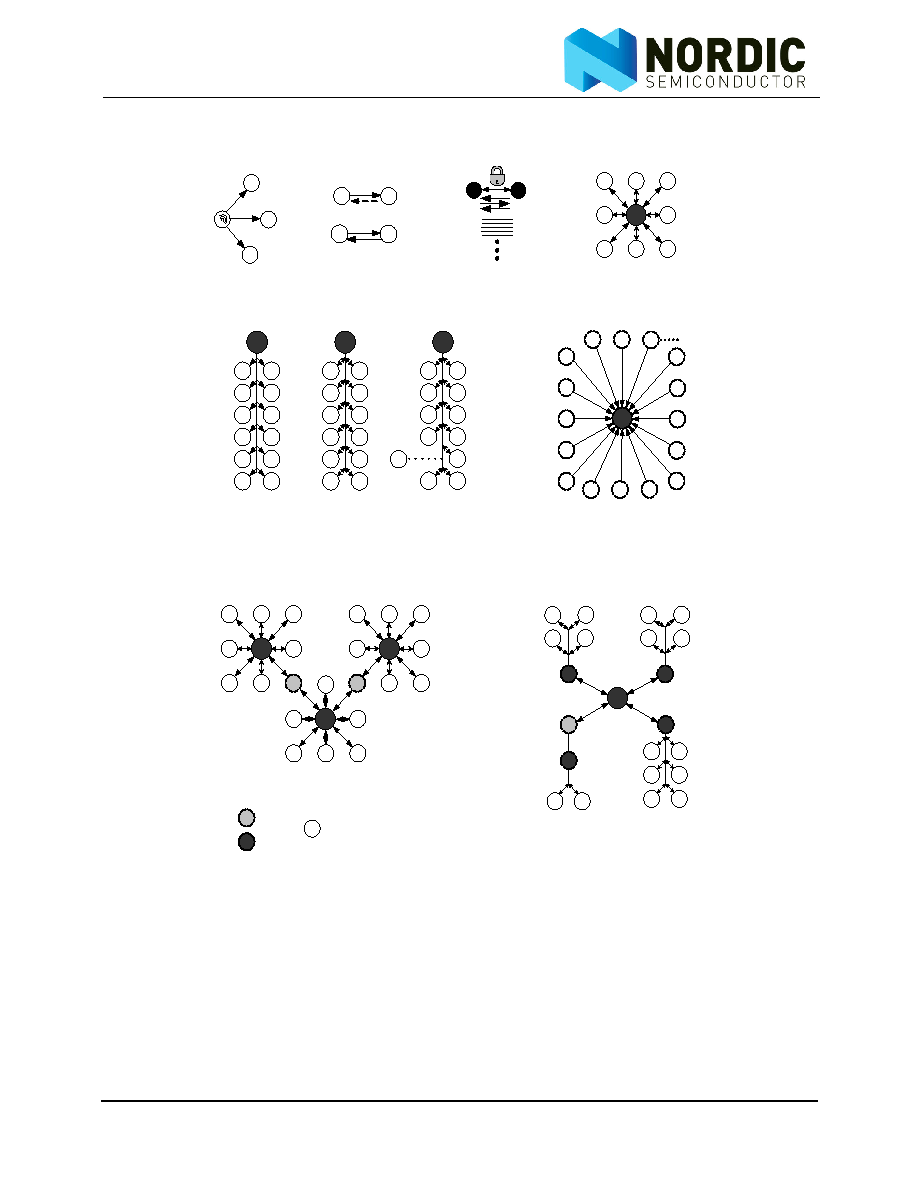

Figure 10. Network topology examples supported by ANT
4.2.7
ANT message protocol
The host microcontroller handles all the configuration and control of the various ANT node and channel
parameters in nRF24AP2 over a simple serial interface, by using the command library. See the document
ANT Message Protocol and Usage for further details on the command library.
1
12
2
11
3
10
4
9
5
8
6
7
M
PEER
TO
PEER
STAR
PRACTICAL MESH
SHARED
BI-DIRECTIONAL
8
7
6
9
10
11
12
13
14
15
16
5
4
3
2
1
SCANNING MODE
ANT-FS
(Secure Authenticated)
1
12
2
11
3
10
4
9
?
8
6
7
M
AD-HOC
AUTO
SHARED
1
12
2
11
3
10
4
9
5
8
6
7
M
SHARED
UNI-DIRECTIONAL
n
Broadcast
Bidirectional
Acknowledged
BROADCAST
SHARED CLUSTER
Sensor
Hub
Relay
