SDA0511CDN Datenblatt(PDF) 3 Page - Shanghai Leiditech Electronic Technology Co., Ltd

Teilenummer SDA0511CDN
Bauteilbeschribung  1-Line Bi-directional TVS Diode
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Hersteller  LEIDITECH [Shanghai Leiditech Electronic Technology Co., Ltd]
Direct Link  http://www.leiditech.com
Logo LEIDITECH - Shanghai Leiditech Electronic Technology Co., Ltd

SDA0511CDN Datenblatt(HTML) 3 Page - Shanghai Leiditech Electronic Technology Co., Ltd

  SDA0511CDN Datasheet HTML 1Page - Shanghai Leiditech Electronic Technology Co., Ltd SDA0511CDN Datasheet HTML 2Page - Shanghai Leiditech Electronic Technology Co., Ltd SDA0511CDN Datasheet HTML 3Page - Shanghai Leiditech Electronic Technology Co., Ltd SDA0511CDN Datasheet HTML 4Page - Shanghai Leiditech Electronic Technology Co., Ltd
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image

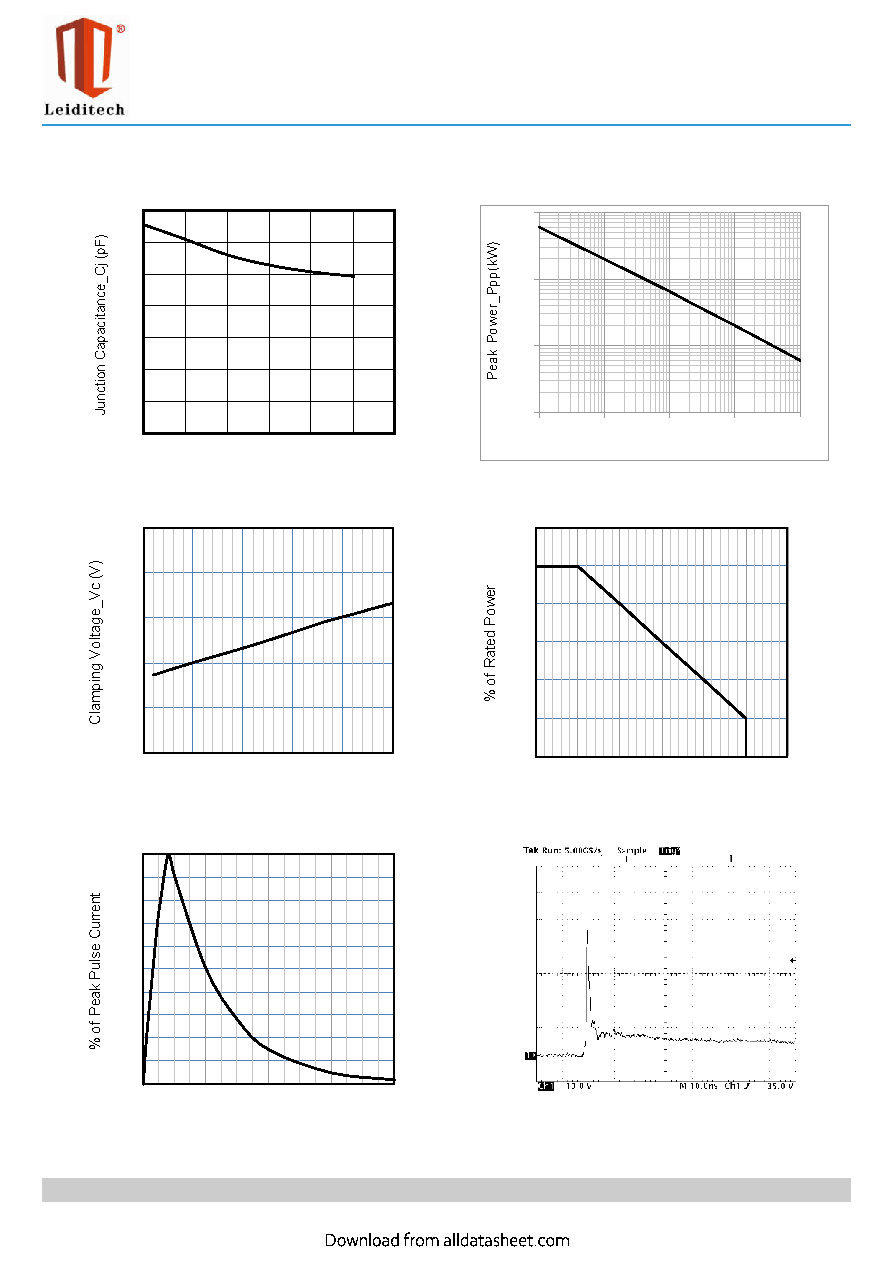

Typical Performance Characteristics (TA=25°C unless otherwise Specified)
Junction Capacitance vs. Reverse Voltage
Peak Pulse Power vs. Pulse Time
Clamping Voltage vs. Peak Pulse Current
Power Derating Curve
8 X 20uS Pulse Waveform
ESD Clamping Voltage
8 kV Contact per IEC61000−4−2
0
20
40
60
80
100
120
0
25
50
75
100
125
150
Ambient Temperature_Ta(℃)
0
10
20
30
40
50
60
70
80
90
100
0
20
40
60
80
Time_t(uS)
0
10
20
30
40
50
60
70
0
1
2
3
4
5
6
Reverse Voltage_VR (V)
0
5
10
15
20
25
0
5
10
15
20
25
Peak Pulse Current_Ipp (A)
0.01
0.1
1
10
0.1
1.0
10.0
100.0
1000.0
Pulse Duration_tp (uS)
Rev :
www.leiditech.com
01.06.2015
3/4
SDA0511CDN
