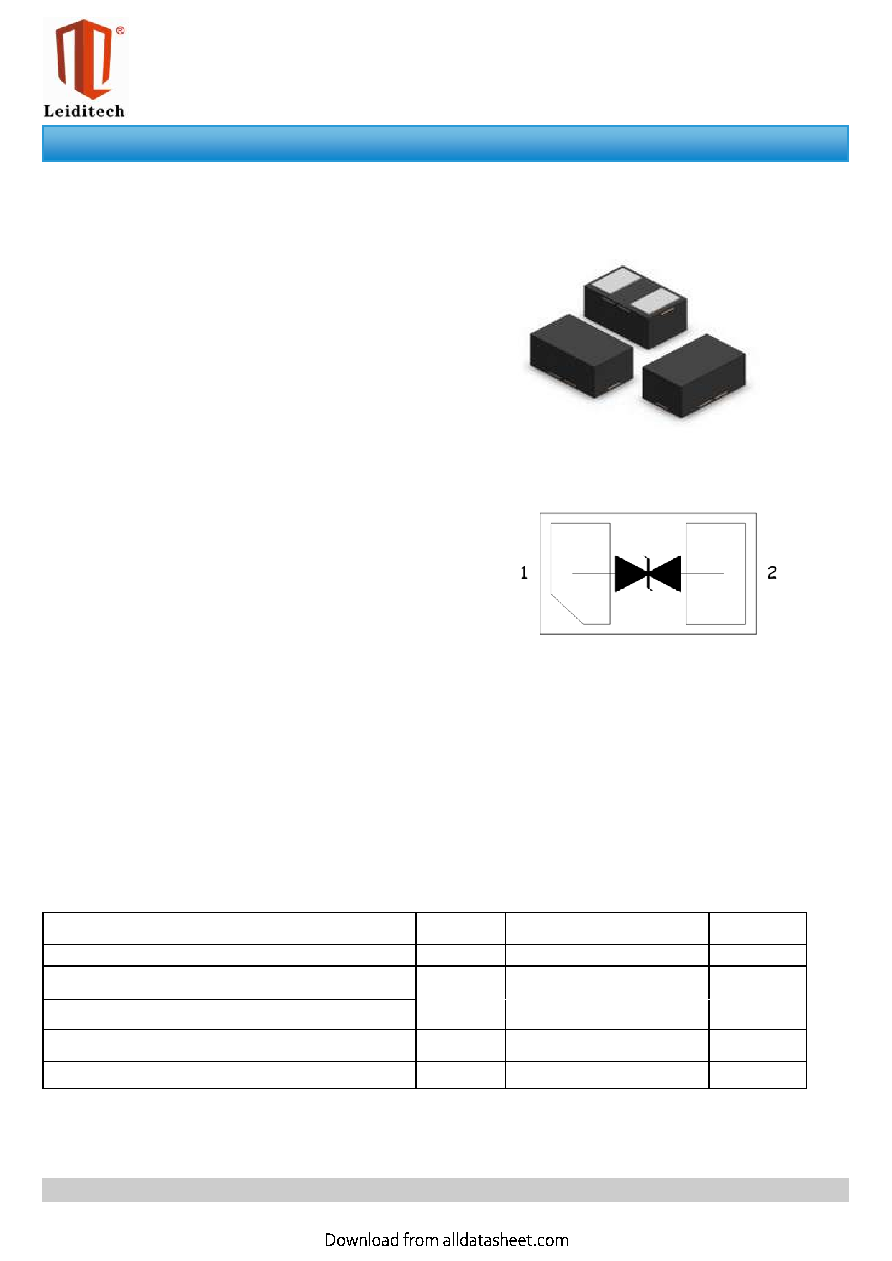

ESD1811CDN
Features
●
●
●
●
Applications
●
●
●
●
●
Dimensions DFN1006
Pin Configuration
Mechanical Characteristics
●
●
●
●
Absolute Maximum Ratings(Tamb=25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Peak Pulse Power (8/20µs)
Ppp
150
W
ESD per IEC 61000−4−2 (Air)
VESD
± 30
Kv
ESD per IEC 61000−4−2 (Contact)
± 30
Operating Temperature Range
TJ
-55 to +150
℃
Storage Temperature Range
TSTJ
-55 to +150
℃
LOW VOLTAGE BIDIRECTIONAL TVS DIODE
●
●
150 Watts Peak Pulse Power per Line (tp=8/20μs)
Protects One Bidirectional I/O Lines
Low Clamping Voltage
RoHS Compliant
IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
IEC61000-4-5 (LIGHTING) 18A (8/20μs)
●
●
●
Cellular Handsets & Accessories
Keypads, Side Keys, Audio Ports
Portable Instrumentation'
Notebooks, Desktops, and Servers
Digital Lines
Tablet PC
DFN1006 Package
Molding Compound Flammability Rating : UL 94V-O
Weight 0.5 Millgrams (Approximate)
Reel Size : 7 inch
Lead Finish : Lead Free
Rev :
www.leiditech.com
01.06.2018
1/6
