MODEL: M2EXV

M2EXV SPECIFICATIONS

ES-5133 Rev.3 Page 5/5

http://www.m-system.co.jp/

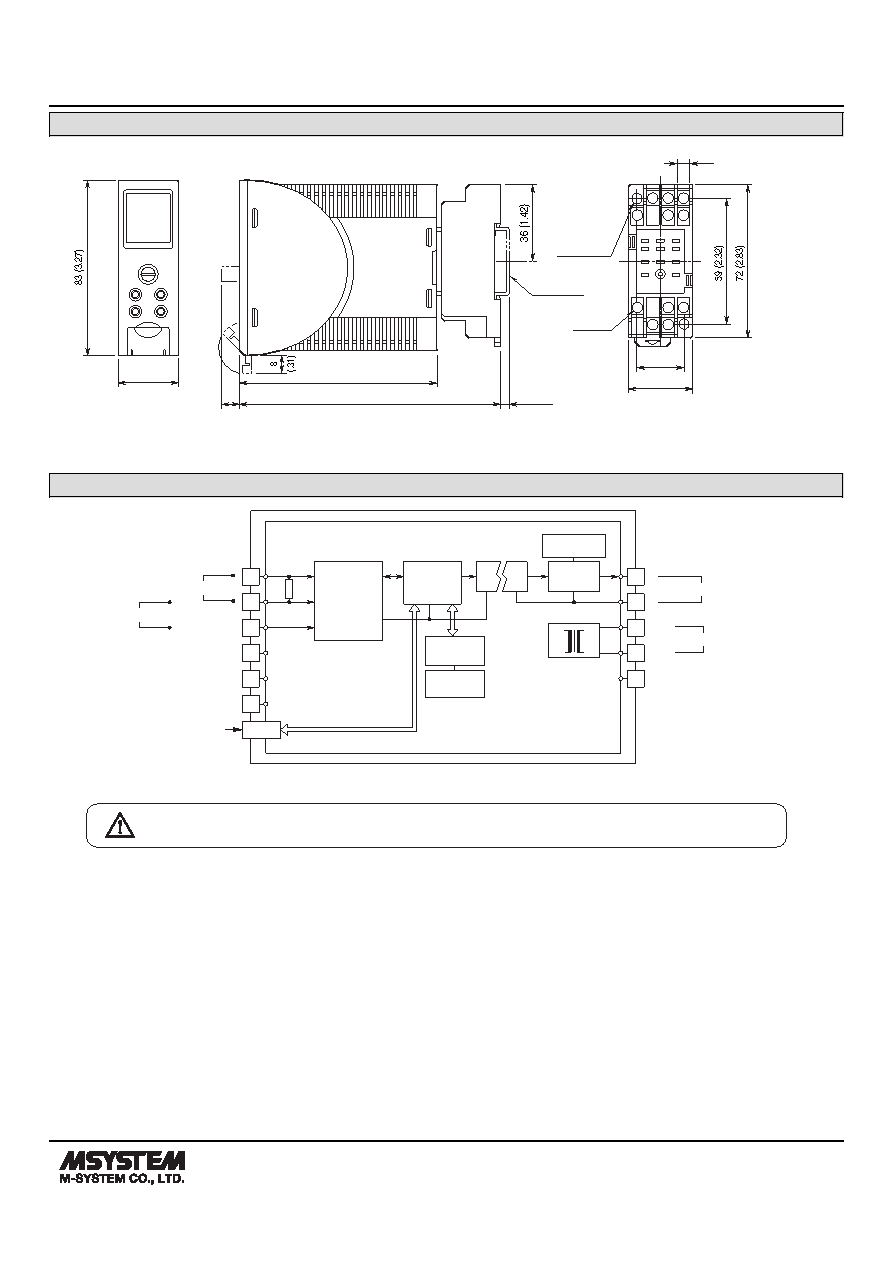

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

29 (1.14)

94 (3.70)

8

(.31)

124 (4.88)

22 (.87)

6 (.23)

11–M3

SCREW

29.5 (1.16)

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

DIN RAIL

35mm wide

[4 (.16)]

• When mounting, no extra space is needed between units.

4

8 7

10

11

5

6

1

2

3

9

SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM

4

3

5

6

8

10

11

9

+

–

Input Current

+

–

Input Voltage

1

2

24.9Ω

CONFIGURATOR

JACK

Isolation

Low Drift

Amplifie

Output

Driver

Digital

Computation

Circuit

Display

Circuit

CONTROL

SW

Output Setting

DIP SW

–

OUTPUT

U(+)

V(–)

POWER

Base Socket
