MODEL: M6NPP

M6NPP SPECIFICATIONS

ES-7919 Rev.6 Page 4/5

http://www.m-system.co.jp/

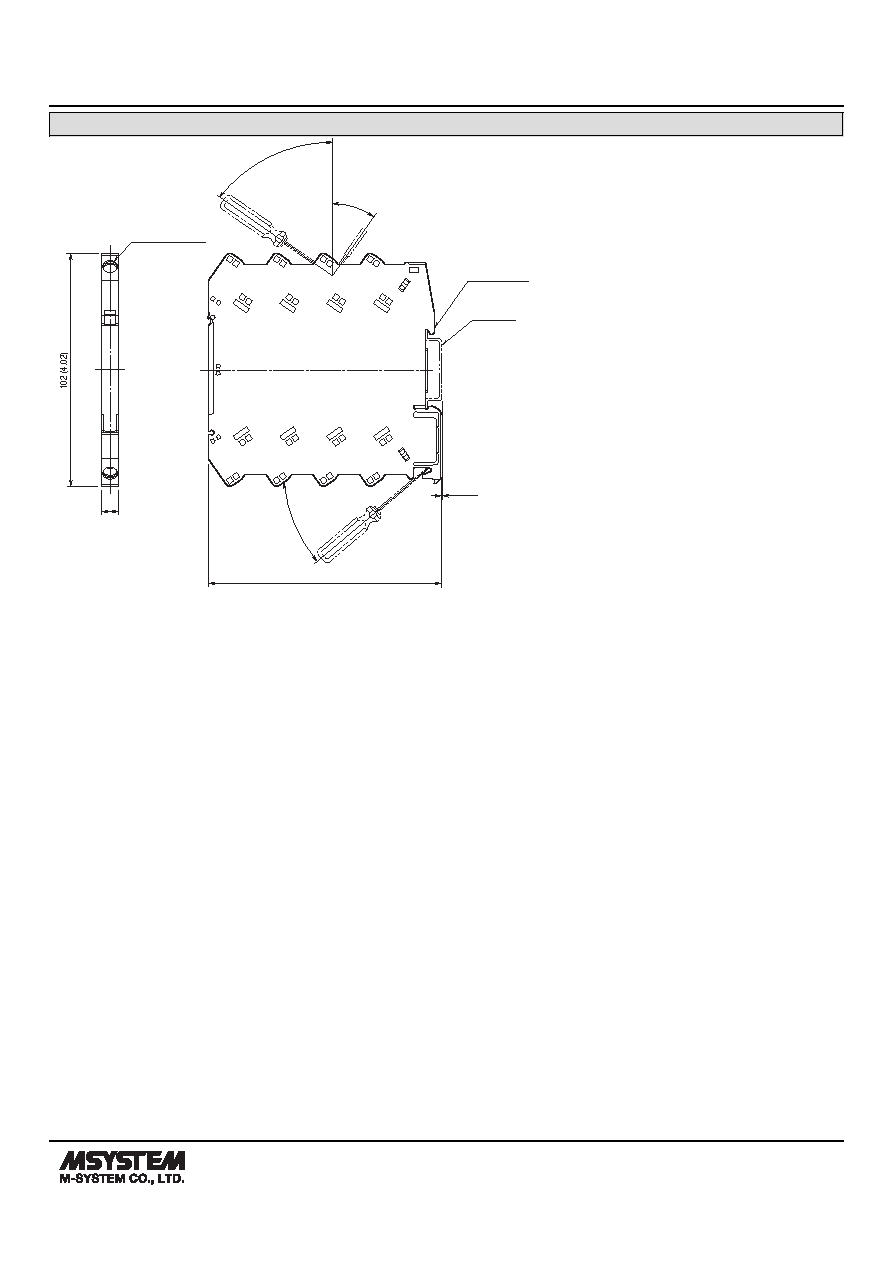

EXTERNAL DIMENSIONS & TERMINAL ASSIGNMENTS unit: mm (inch)

7.5 (.30)

DIN RAIL HOOK

102 (4.02)

[1 (.04)]

8–M3

SCREW TERMINAL

WIRE INSERTION ANGLE

: approx. 35°

SCREWDRIVER *

INSERTION ANGLE

: approx. 55°

SCREWDRIVER

INSERTION ANGLE

: approx. 40°

DIN RAIL

35mm wide

5

6

7

8

1

2

3

4

• When mounting, no extra space is needed between units.

*Screwdriver stem diameter: 6 mm (.24”) or less
