Data Sheet
ADA4255
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 17 of 64

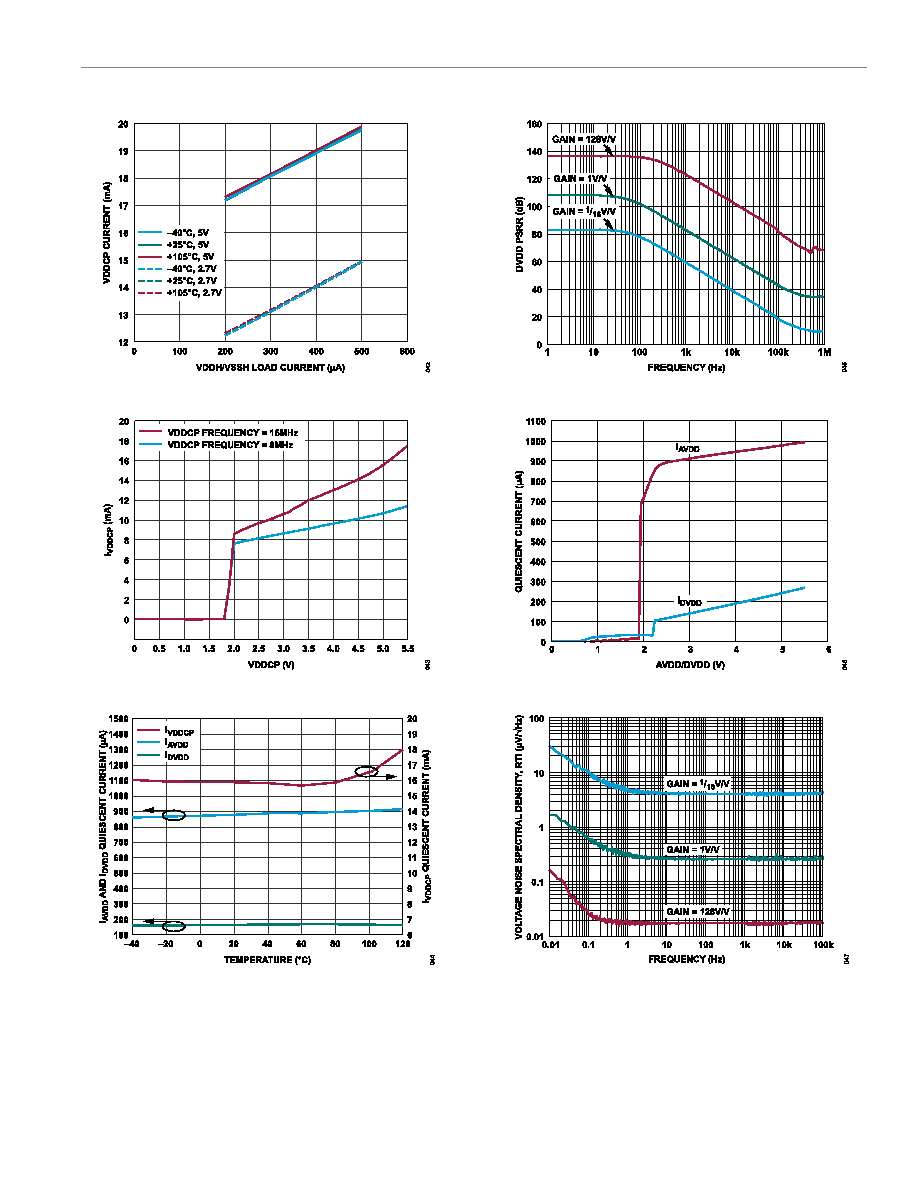

Figure 42. VDDCP Current vs. VDDH/VSSH Load Current
Figure 43. IVDDCP vs. VDDCP
Figure 44. IAVDD, IDVDD, and IVDDCP Quiescent Current vs. Temperature
Figure 45. DVDD PSRR vs. Frequency
Figure 46. Quiescent Current vs. AVDD and DVDD
Figure 47. Voltage Noise Spectral Density, RTI vs. Frequency
