PLL601-01

Low Phase Noise PLL Clock Multiplier

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 09/03/04 Page 1

FEATURES

• Low phase noise XO

• Input from crystal or clock at 10-27MHz.

• Integrated crystal load capacitor: no external

load capacitor required.

• Output clocks up to 160MHz.

• Low phase noise (-125dBc/Hz @ 1kHz).

• Output Enable function.

• Low jitter (RMS): 7.2ps (period), 11.2ps (accum.)

• Advanced low power sub-micron CMOS process.

• 3.3V operation.

• Available in 16-Pin SOIC or TSSOP.

DESCRIPTION

The PLL601-01 is a low cost, high performance and

low phase noise clock synthesizer. Using Phase-

Link’s proprietary analog and digital Phase Locked

Loop techniques, this IC can produce up to a

160MHz output.

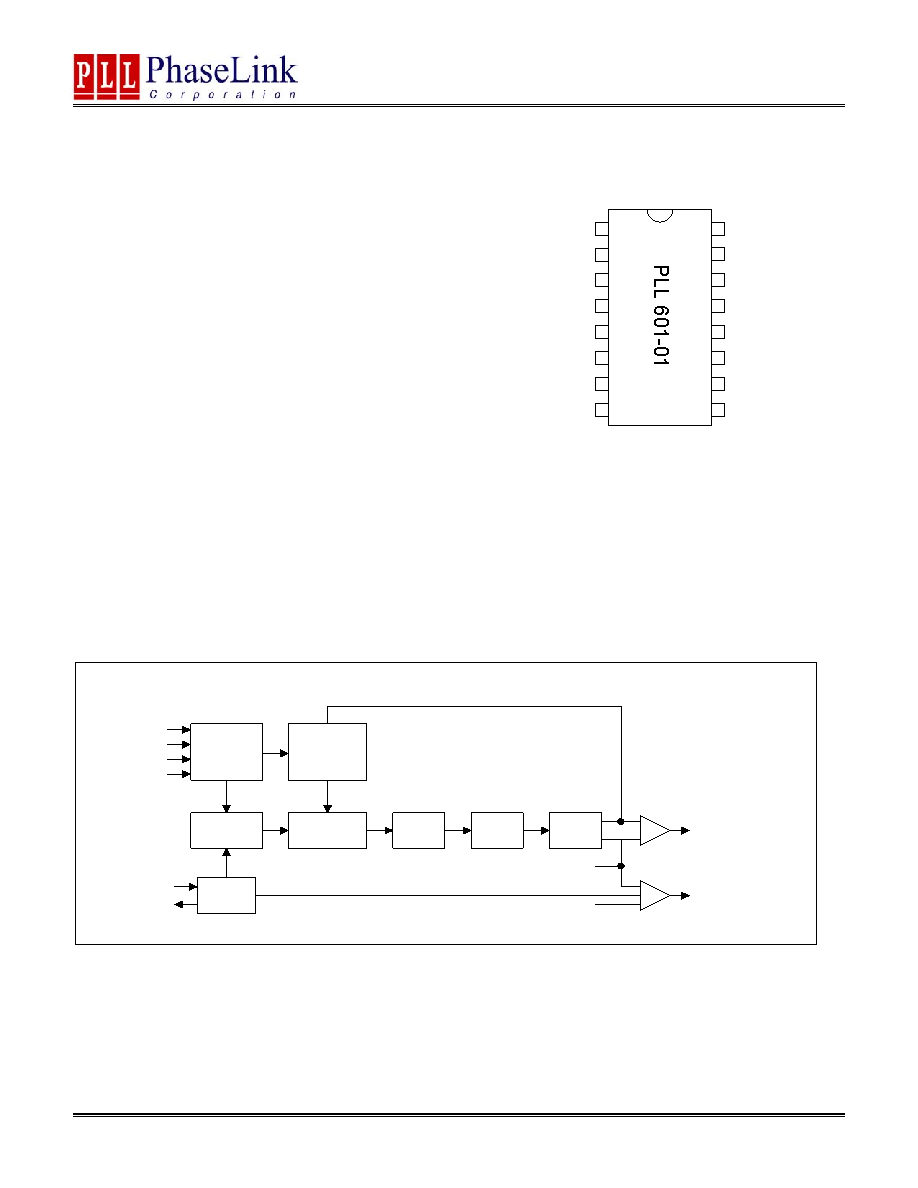

PIN CONFIGURATION

Note: ^ denotes internal pull up.

BLOCK DIAGRAM

1

2

3

4

5

6

7

8

CLK

9

10

11

12

13

14

15

16

REFEN

VDD

XOUT

S1^

XIN

GND

REFOUT

OE^

S0^

S3^

S2^

Reference

Divider

Phase

Comparator

Charge

Pump

Loop

Filter

VCO

ROM Based

Multipliers

VCO

Divider

XTAL

OSC

CLK

REFOUT

OE

REFEN

S3

S2

S1

S0

XIN

XOUT
