PLL602-20

200MHz XO IC With Selectable 4X/8X Multiplier

47745 Fremont Blvd., Fremont, California 94538 Tel (510) 492-0990 Fax (510) 492-0991 www.phaselink.com Rev 02/18/05 Page 5

CRYSTAL SPECIFICATIONS

PARAMETERS

SYMBOL

MIN.

TYP.

MAX.

UNITS

Fundamental Crystal Resonator Frequency

10

30

MHz

Crystal Loading Rating

11

pF

Maximum Sustainable Drive Level

500

µW

Operating Drive Level

100

µW

Crystal Shunt Capacitance

C0

6

pF

Effective Series Resistance, Fundamental, 10-30MHz

30

Ω

Note: A detailed crystal specification document is also available for this part

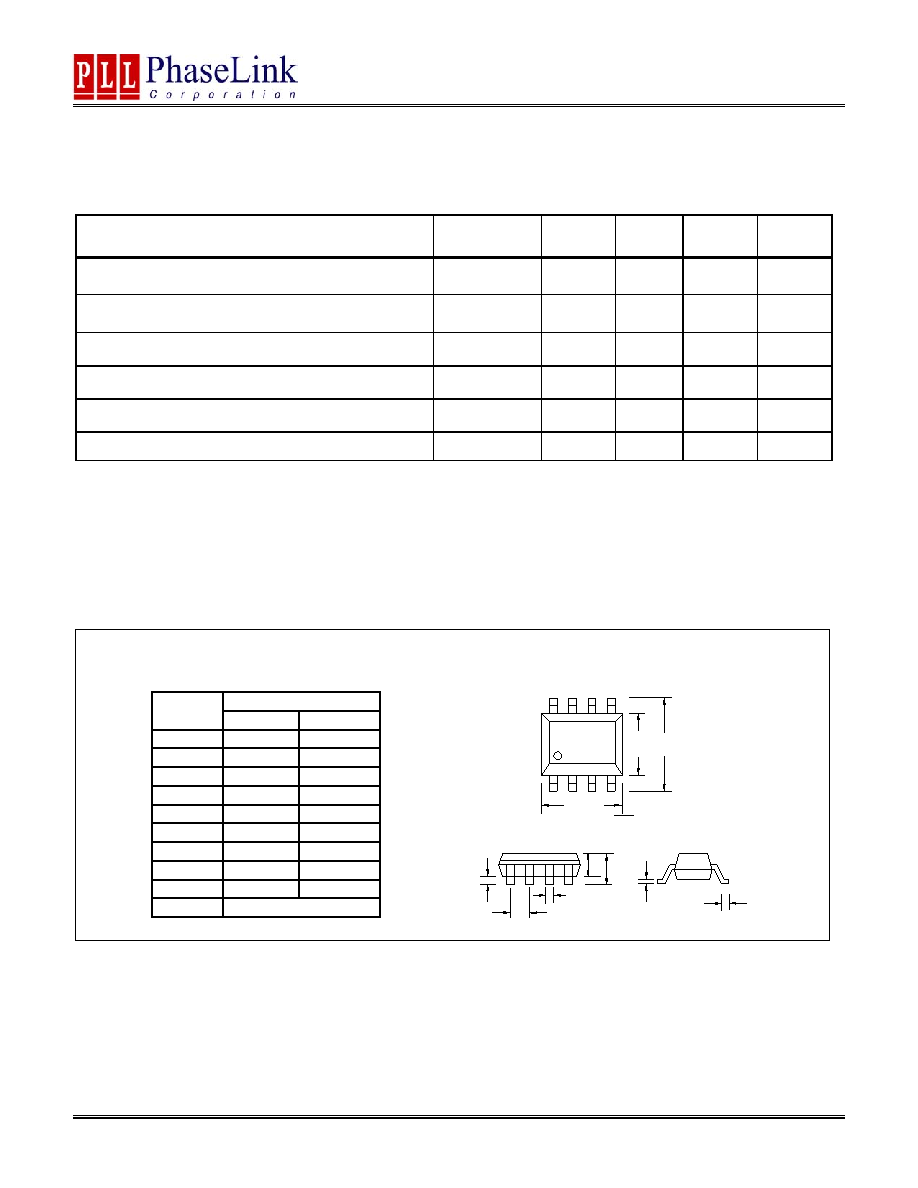

PACKAGE DRAWINGS (GREEN PACKAGE COMPLIANT)

SOIC 8L

Dimension in MM

Symbol

Min.

Max.

A

1.35

1.75

A1

0.10

0.25

A2

1.25

1.50

B

0.33

0.53

C

0.19

0.27

D

4.80

5.00

E

3.80

4.00

H

5.80

6.20

L

0.40

0.89

e

1.27 BSC

C

L

A2

E

H

D

A1

e

b

A
