5.50

0.217

0.80

0.031

5.00

0.197

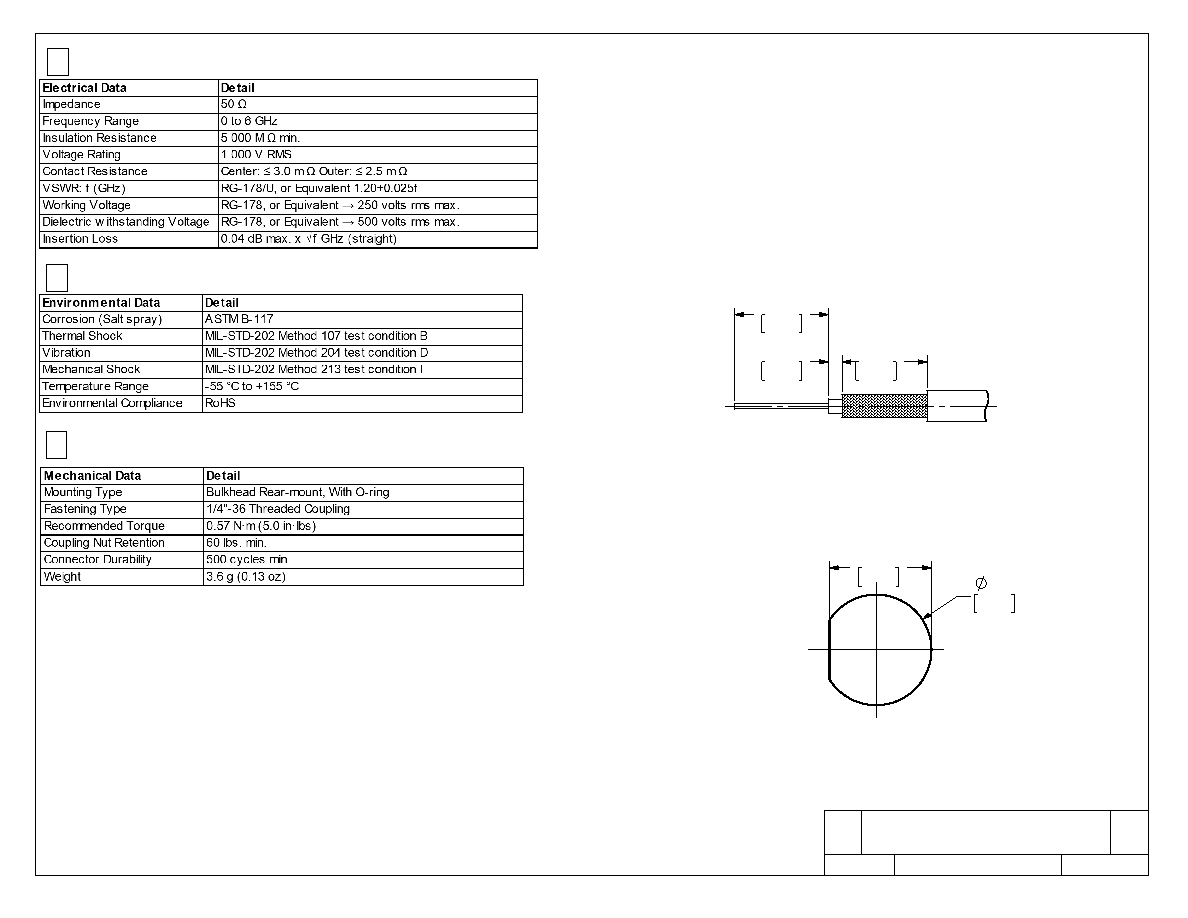

RECOMMENDED CABLE STRIPPING DIMENSIONS

CAN ALSO BE USED WITH:

RG-196

RG-178

CABLE

6.50

0.256

6.00

0.236

RECOMMENDED MOUNTING HOLE

5

6

TABLE I

TABLE II

TABLE III

7

ASSEMBLY INSTRUCTIONS

Strip the cable.

1.

Slide the coax into the support until the outside insulation

2.

bottoms out against the inside shoulder of the support.

Solder the support onto the braid.

3.

Plaec the spacer onto the center-conductor.

4.

Solder or crimp the socket onto the center conductor.

5.

Insert the socket, center-conductor, spacer and support into te

6.

body until the top of the socket is even with the white

insulation in the body.

Crimp the tail of the body onto the support with a 0.093" hex

7.

crimp tool.

SHEET 2 OF 2

LDCFDAL_A

SCALE: 4:1

A

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

SEE SHEET 1 FOR REVISIONS

A

CONSMA014-R178-*
