CONSMA015-R178-G datasheet(2/2 Pages) LINX

Teilenummer	CONSMA015-R178-G

Bauteilbeschribung	SMA FEMALE BULKHEAD MOUNT CABLE END CRIMP W/O-RING FOR RG-178 CABLE

PDF	2 Pages

Scroll/Zoom	100%

Hersteller	LINX [Linx Technologies]

Direct Link	https://linxtechnologies.com/wp/

Logo

2 / 2 page

5.00

0.197

0.80

0.031

5.00

0.197

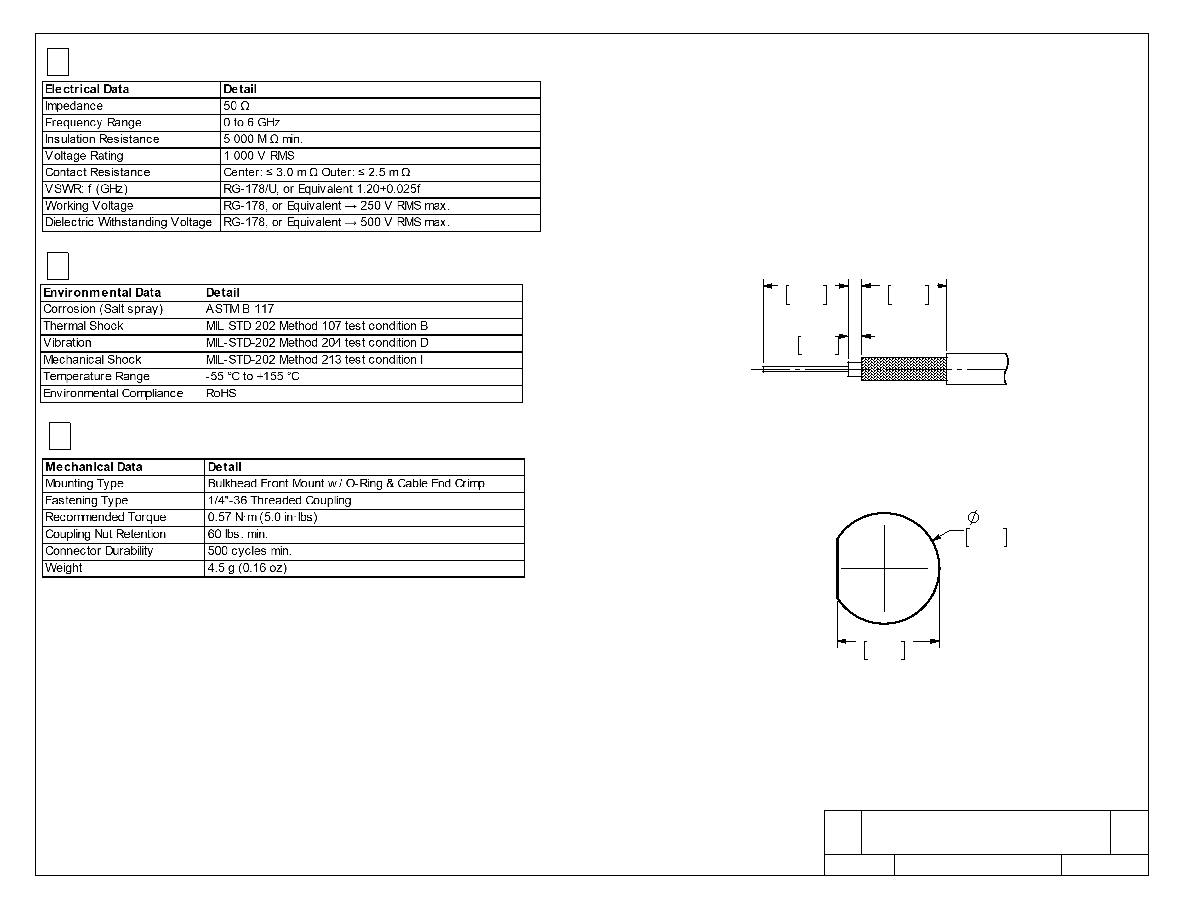

RECOMMENDED CABLE STRIPPING DIMENSIONS

CAN ALSO BE USED WITH:

RG-196

RG-178

CABLE

6.50

0.256

6.00

0.236

RECOMMENDED MOUNTNG HOLE

TABLE I

TABLE II

TABLE III

ASSEMBLY INSTRUCTIONS

Strip the cable to the recommended dimensions.

Solder the support onto the braid.

Place the spacer onto the center-conductor.

Solder, or crimp the socket onto the center-conductor.

Insert the socket, center-conductor, spacer and support into

the body until the top of the socket is flush with the white

insulation in the body.

Crimp the tail of the body onto the support with a 0.093" hex

crimp tool.

SHEET 2 OF 2

LDCFDAL_A

SCALE: 4:1

SIZE DWG. NO.

REV

DO NOT SCALE DRAWING

SEE SHEET 1 FOR REVISIONS

CONSMA015-R178-*
