AD9959

Data Sheet

Rev. C | Page 34 of 44

SCLK

SDIO_0

INSTRUCTION CYCLE

DATA TRANSFER CYCLE

(I0)

(I1)

(I2)

(I3)

(I4)

(I5)

(I6)

(I7)

(D0)

(D1)

(D2)

(D3)

(D4)

(D5)

(D6)

(D7)

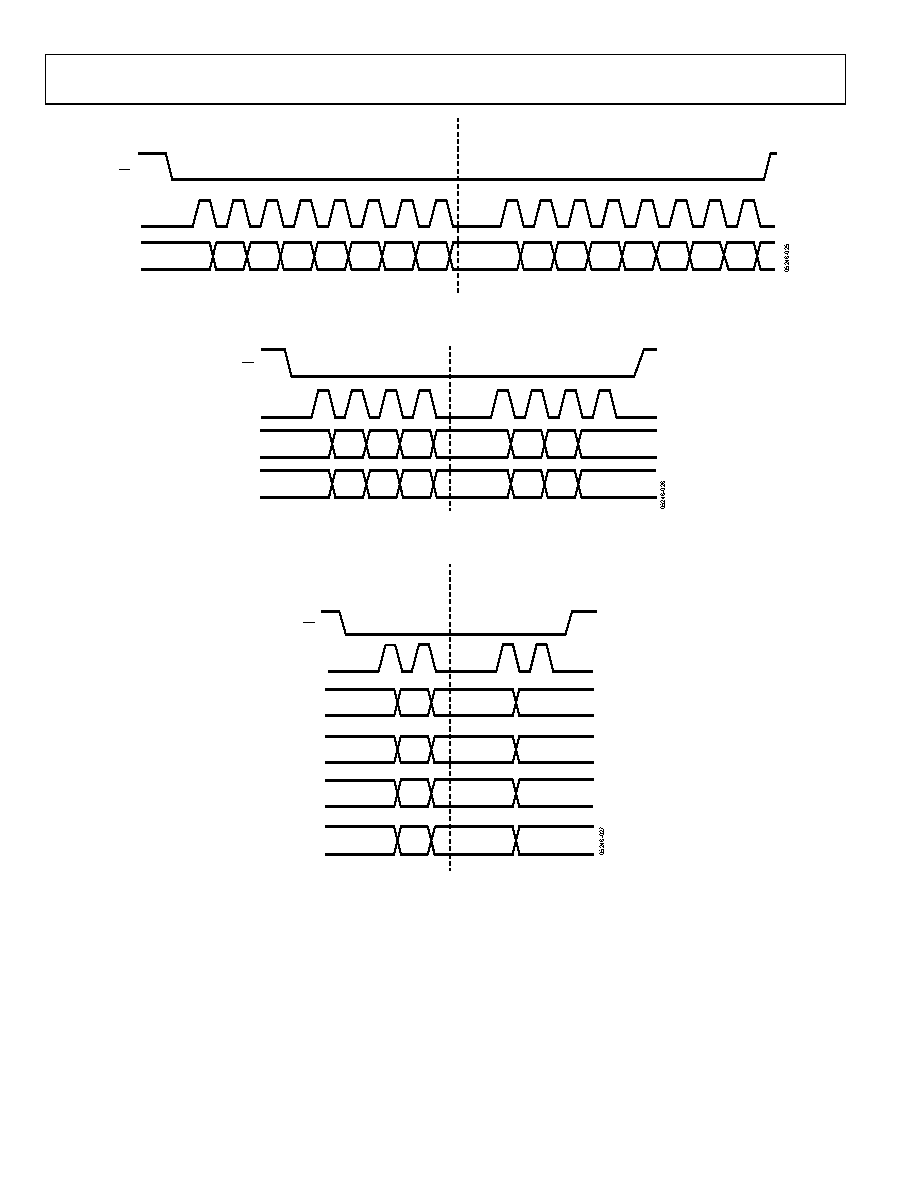

Figure 43. Single-Bit Serial Mode Write Timing—Clock Stall Low

INSTRUCTION CYCLE

DATA TRANSFER CYCLE

SCLK

SDIO_1

SDIO_0

(D1)

(D3)

(D5)

(D7)

(D0)

(D2)

(D4)

(D6)

(I0)

(I2)

(I4)

(I6)

(I1)

(I3)

(I5)

(I7)

Figure 44. 2-Bit Serial Mode Write Timing—Clock Stall Low

INSTRUCTION CYCLE

DATA TRANSFER CYCLE

SCLK

SDIO_1

SDIO_0

SDIO_2

SDIO_3

(I3)

(I5)

(I1)

(I7)

(I2)

(I4)

(I0)

(I6)

(D3)

(D5)

(D1)

(D7)

(D2)

(D4)

(D0)

(D6)

Figure 45. 4-Bit Serial Mode Write Timing—Clock Stall Low
