PL133-47

DS20006670A-page 6



2022 Microchip Technology Inc. and its subsidiaries

3.0

NOMINAL PERFORMANCE CHARACTERISTICS

U

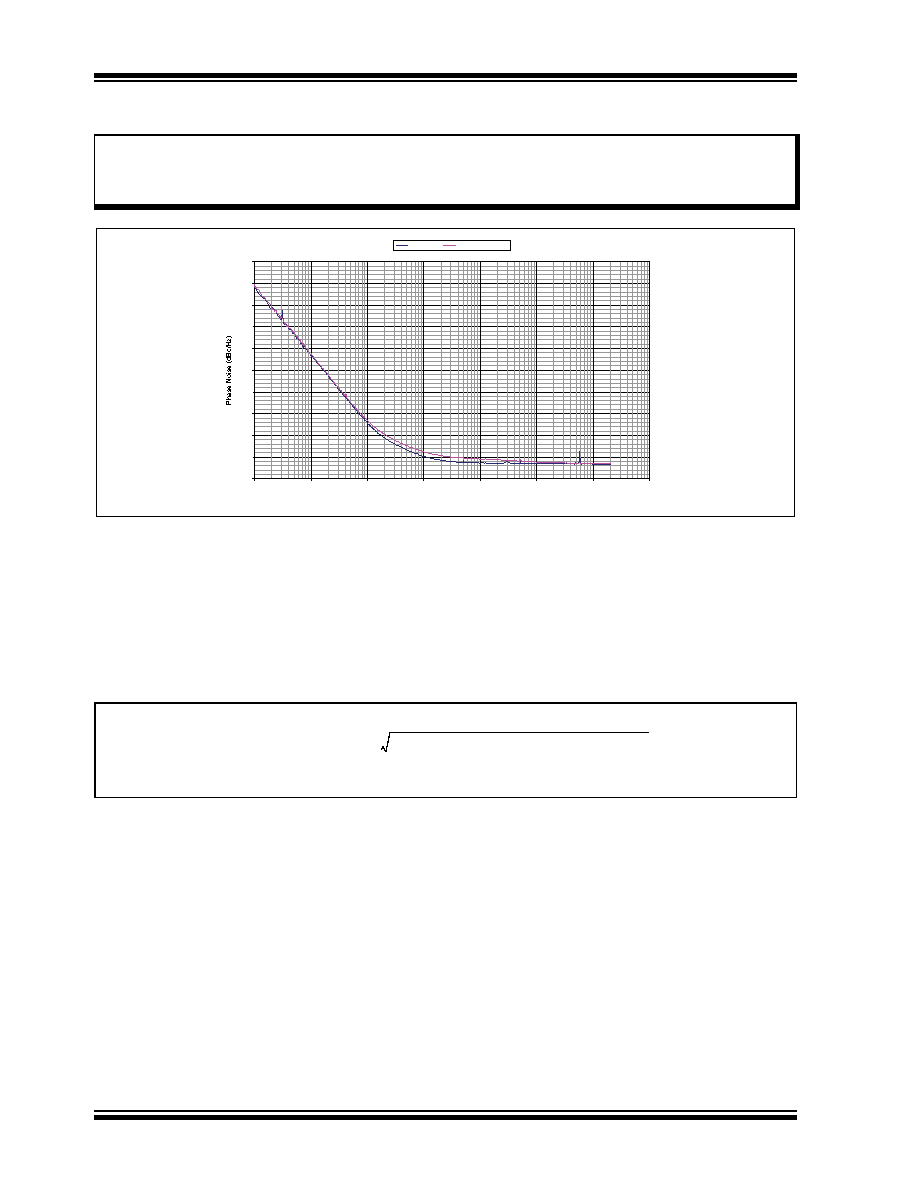

FIGURE 3-1:

2 kHz - 20 MHz, 0.059 ps Typical.

When a buffer is used to pass a signal then the buffer will add a little bit of its own noise. The phase noise on the output

of the buffer will be a little bit more than the phase noise in the input signal. The noise added by the buffer to the input

signal is quantified by the additive phase jitter defined by the following formula:

EQUATION 3-1:

Note:

The graphs and tables provided following this note are a statistical summary based on a limited number of

samples and are provided for informational purposes only. The performance characteristics listed herein

are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified

operating range (e.g., outside specified power supply range) and therefore outside the warranted range.

-160

-150

-140

-130

-120

-110

-100

-90

-80

-70

-60

10

100

1000

10000

100000

1000000

10000000

100000000

Offset Frequency (Hz)

REF Input

PL133-47 Output

AdditivePhaseJitter

OutputPhaseJitter



InputPhaseJitter



–

=
