TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 8 of 15

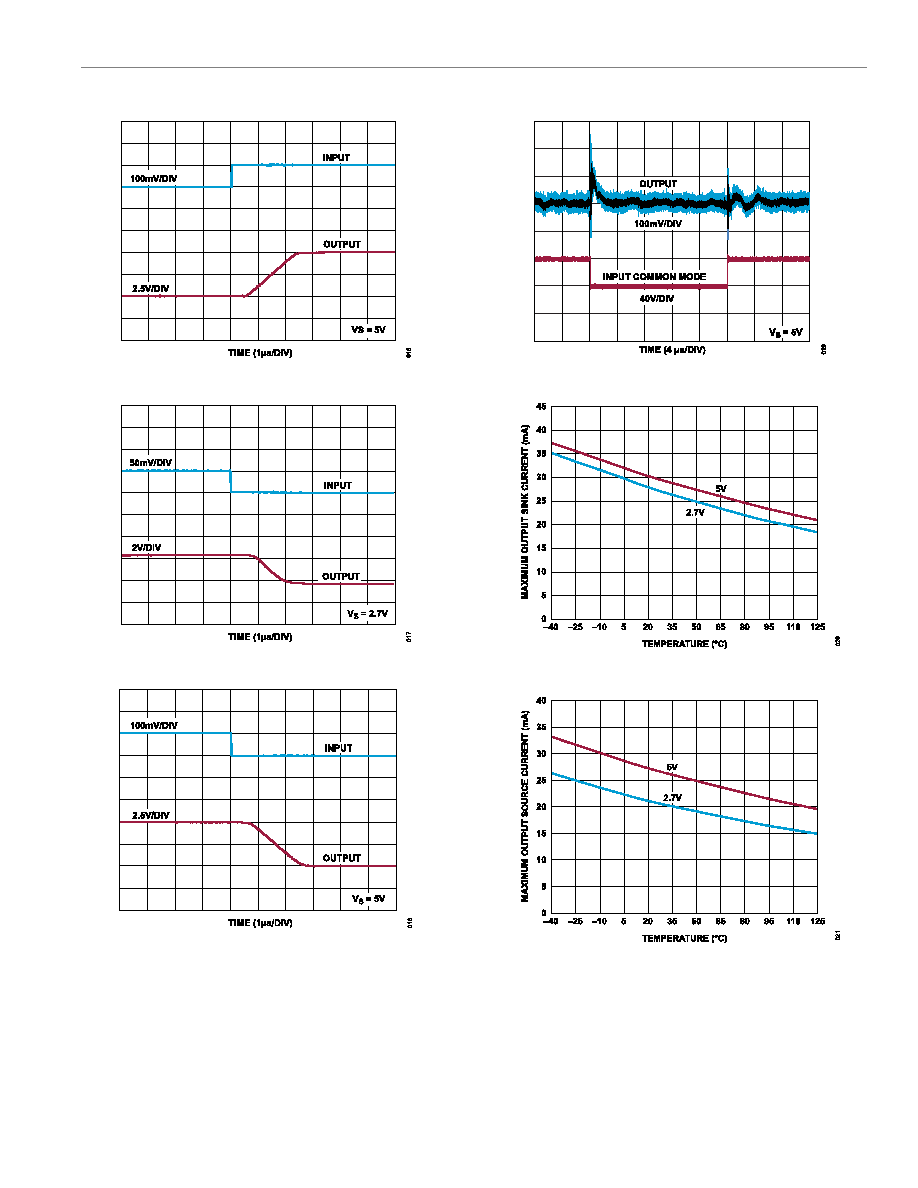

Figure 16. Differential Overload Recovery, Rising (VS = 5 V)

Figure 17. Differential Overload Recovery, Falling (VS = 2.7 V)

Figure 18. Differential Overload Recovery, Falling (VS = 5 V)

Figure 19. Input Common-Mode Step Response (VS = 5 V, Inputs Shorted)

Figure 20. Maximum Output Sink Current vs. Temperature

Figure 21. Maximum Output Source Current vs. Temperature
