CUI DEVICES | SERIES: AMT21 | DESCRIPTION: MODULAR ABSOLUTE ENCODER
date 08/05/2022 | page 7 of 10
cuidevices.com
AMT212

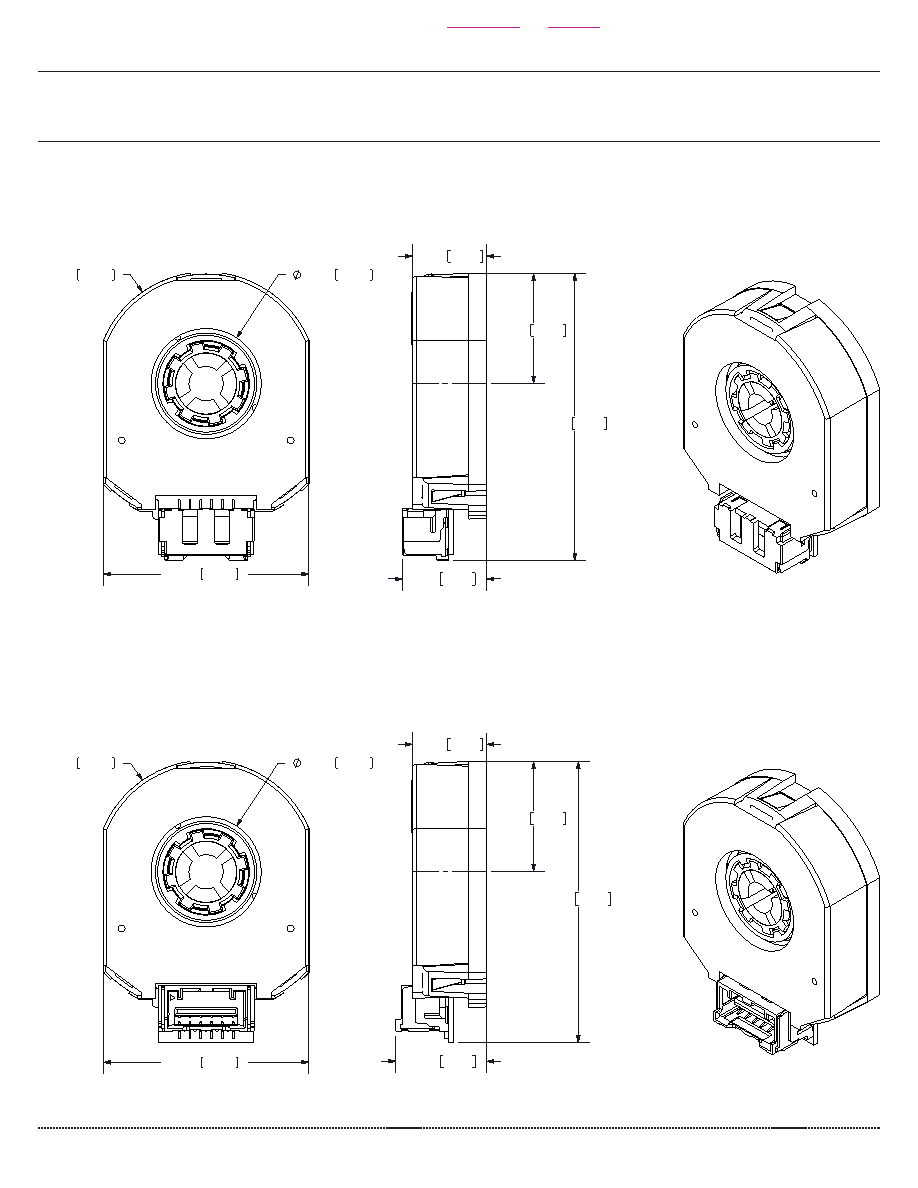

MECHANICAL DRAWING
units: mm
tolerance: ±0.1
R15.49 0.610
15.30 0.602
28.58 1.125
10.30 0.406
11.70 0.461
39.94 1.573
15.33 0.604
AMT213
units: mm
tolerance: ±0.1
R15.49 0.610
15.30 0.602
28.58 1.125
10.30 0.406
12.60 0.496
39.06 1.538
15.33 0.604
Additional Resources: Product Page | 3D Model
