CRYSTAL OSCILLATORS

357 Beloit Street, P.O. Box 457, Burlington, WI 53105-0457 U.S.A. Phone 262/763-3591 FAX 262/763-2881

Email: nelsales@nelfc.com

www.nelfc.com

Data Sheet 0635G

Specifications:

Product Data Sheet

Features

• SC-cut crystal

• High Stability (up to ± 5x10

-9

)

• Low Aging (5x10

-10

/day, 5x10

-8

/year)

• Low Phase Noise (-160 dBc/Hz, TYP, floor)

• Sine Wave or HCMOS/TTL output

• 4.8 MHz to 160 MHz Frequencies Available

Applications

• Telecommunication Systems

• Data Communications

• GPS

• Instrumentation

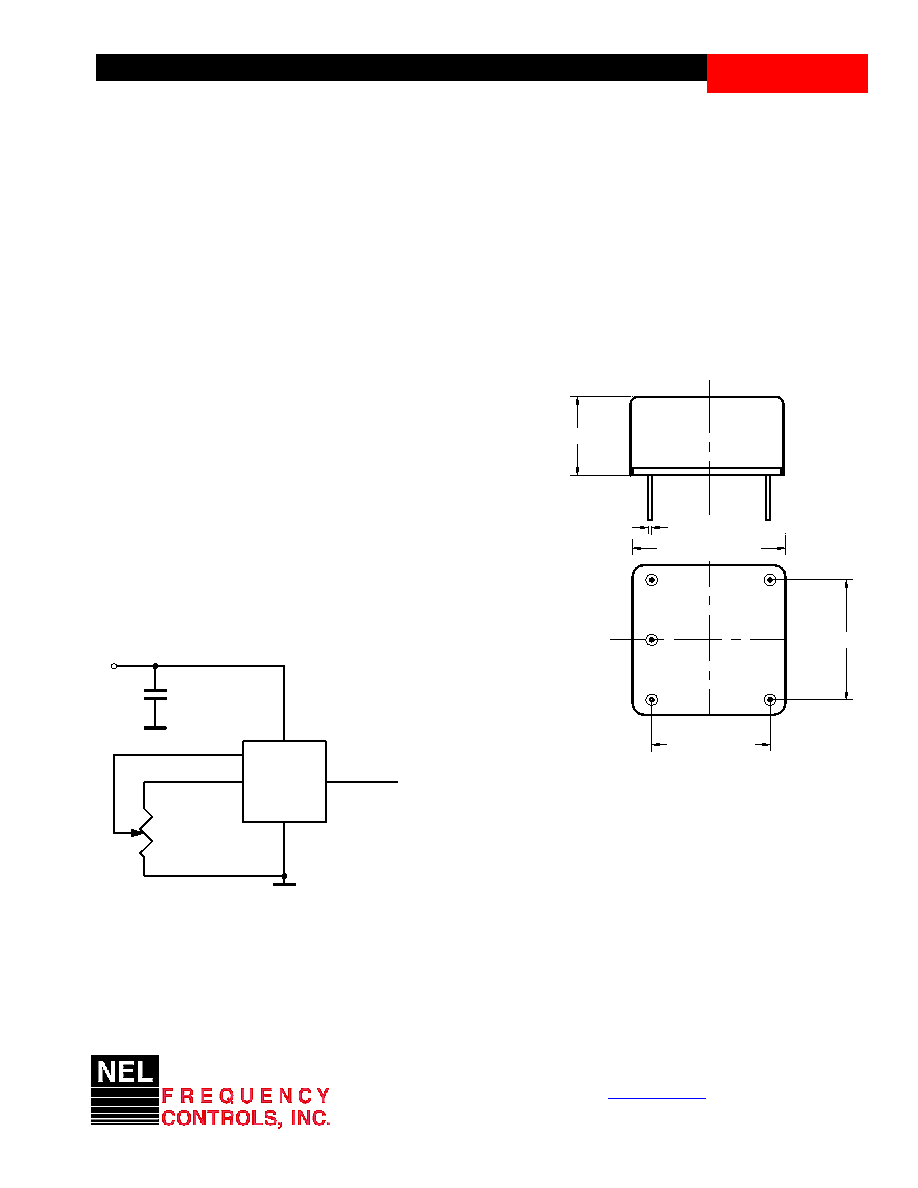

OD-X8HXXXXX

Precision SC-cut OCXO in 20x20 mm Through Hole Package

OUTPUT

10K

Vref

2

4

DUT

5

Vc

Vcc

1

3

0.600 (15.24 mm)

0.600 (15,24 mm)

3

5

2

1

4

0.42 (10,7 mm)

0.800 SQ. (20,4 mm)

Ø0.018 (0,46 mm)TYP
