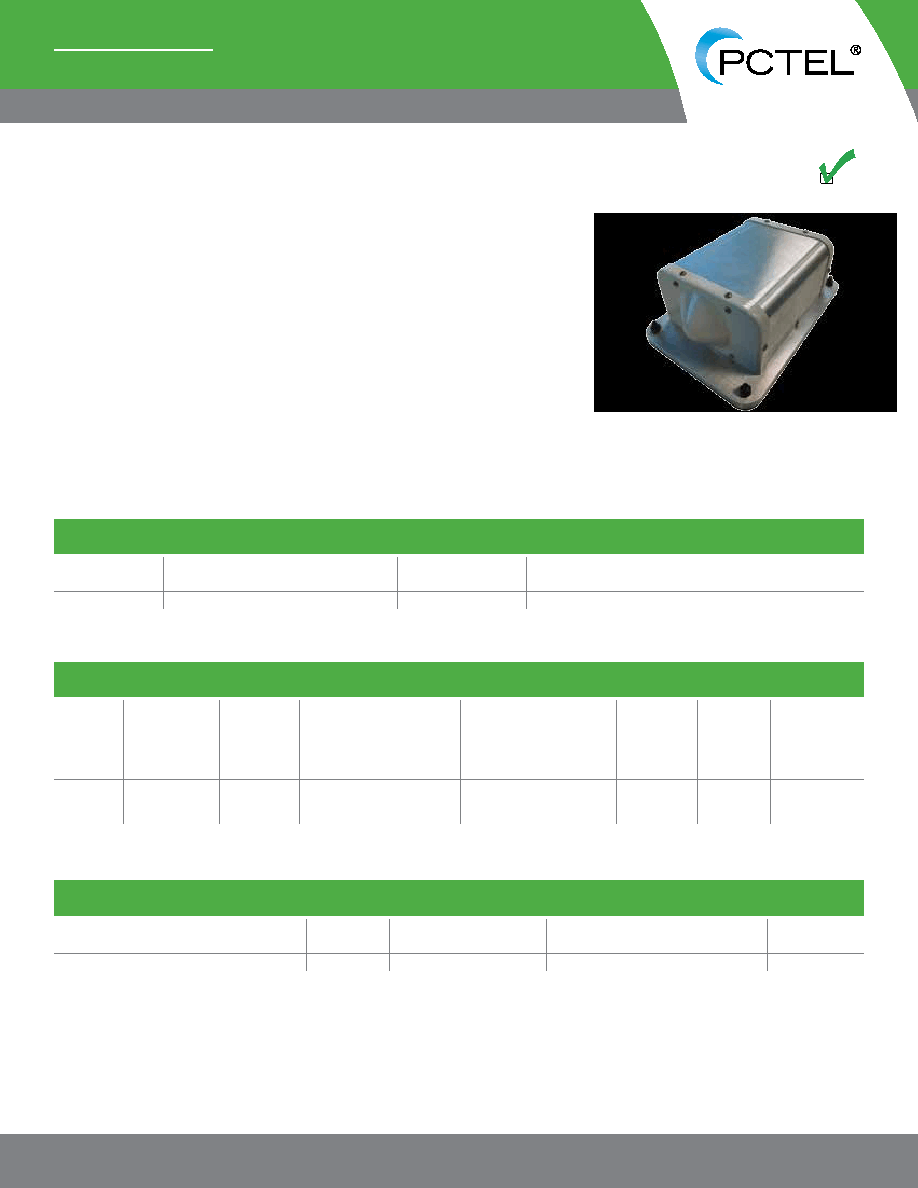

MOBILE ANTENNAS

PCT-RSABD-DP

* Gain is ground plane dependent; more gain can be achieved with larger ground plane.

U.S. Patent Pending

The PCT-RSABD-DP bi-directional antenna is designed to survive high vibration rail

installations, including roof mounting on locomotive and passenger cars.

Features

•

Dual feed, dual slant ± 45°, linear polarization

•

Designed for metallic or non-metallic roof mounting, no ground plane required

•

Extremely rugged purpose built for rail and metro applications

•

Symmetrical patterns, maintains same pattern performance

over each polarization

•

High port-to-port performance correlation

•

Designed to meet EN50155 & AAR certification requirements

Bi-Directional Train Top Antenna

PCT-RSABD-DP

Bi-Directional Antenna - Rail, Train Top

ELECTRICAL SPECIFICATIONS - RF ANTENNA

Gain*

Typical VSWR Bandwidth

Beamwidth

(Free Space, Non-Metallic

Ground Plane)

Beamwidth

(Ground Plane Mounted

Peformance)

Port-to-Port

Isolation

Nominal

Impedance Polarization

10-13 dBi* <2:1 (max 2.5:1) 4.9-5.9 GHz

H-Plane 42°

E-Plane 28°

H-Plane 39°

E-Plane 21°

> 22 dB

50 ohms

Dual Slant 45°,

Linear

STANDARD CONFIGURATION

Model

Cable

Connector

Mount

PCT-RSABD-DP

Sold Separately

QMA Female

Through-hole stud mounting for 1-inch holes

MECHANICAL & ENVIRONMENTAL SPECIFICATIONS (ALL MODELS)

Dimensions

Weight

Temperature Range

Housing Antenna Material

Ingress

Protection

8.3 x 5.5 x 3.3 inches (210 x 140 x 85 mm)

2.7 lbs

-40°C to +85°C

Aluminum, hard coat anodized

IP56

RoHS

COMPLIANT
