Low Profile Wideband Rail Antenna

Rail Antenna

Low Profile Wideband Rail Antenna

Rail Antenna

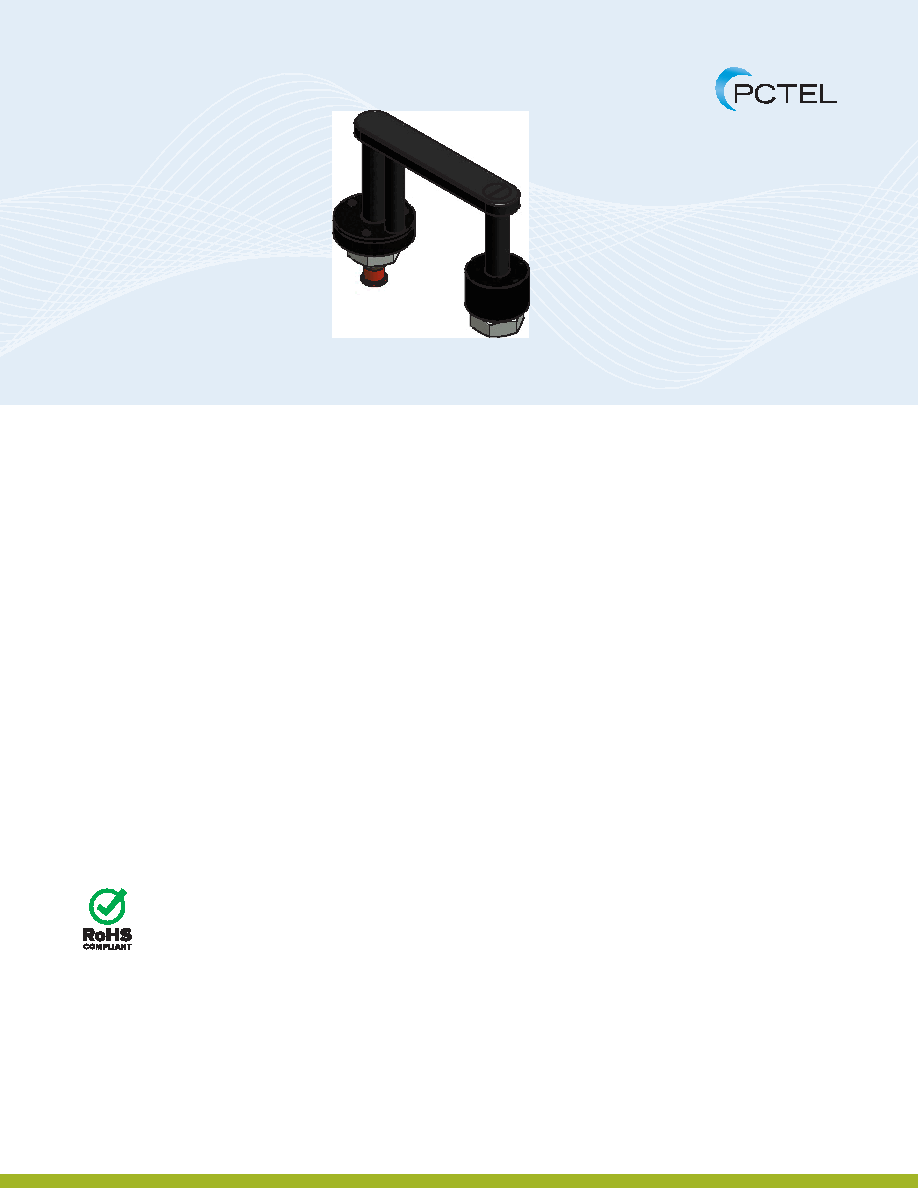

The rugged PCTEL® PCT-RSA directional antennas are designed to be roof mounted on

locomotive, crew car, or other railroad vehicles exposed to severe vibration and harsh

environmental conditions.

Features

• Versatile – may be mounted on locomotive, crew car, or other rugged vehicles

• Rugged – hard coat anodized fully welded aluminum construction

• Low profile – approximately 4.4 inches tall

• Field tunable – optimizes performance in various mounting conditions

• Easy of installation – Two-hole stud mounting

• AAR compliant design

Applications

• Roof mounting on locomotives, crew cars and other railroad vehicles

Certifications

2

SPECIFICATIONS

> pctel.com/antenna-products

ISO-VIEW

SCALE 1 : 2

A

A

B

B

1

1

2

2

3

3

4

4

SEE

COMPONENT

PRINTS

SEE COMPONENT

PRINTS

IP

MATERIAL:

CHECKED

DRAWN

FINISH:

11/15/2016

DATE

PCT-RSA-220

PCTEL, INC.

471 BRIGHTON DRIVE

BLOOMINGDALE, IL 60108

PH. 630-372-6800

FAX. 630-372-8077

B

SCALE

SHEET

1 OF 1

DRAWING NO.

DESCRIPTION

1:1

11/15/2016

SIZE

FOR TOLERANCES NOT SPECIFIED USE:

UNLESS OTHERWISE SPECIFIED

DIMENSIONS ARE IN MILLIMETERS

CE

[X.X mm

.3 mm]

ANGULAR

 1

DATE

[X mm

3 mm]

[ X.XX mm

.13 mm]

VHF220 MHZ PCT-RSA ANTENNA
