SSM2211
Rev. D | Page 7 of 24

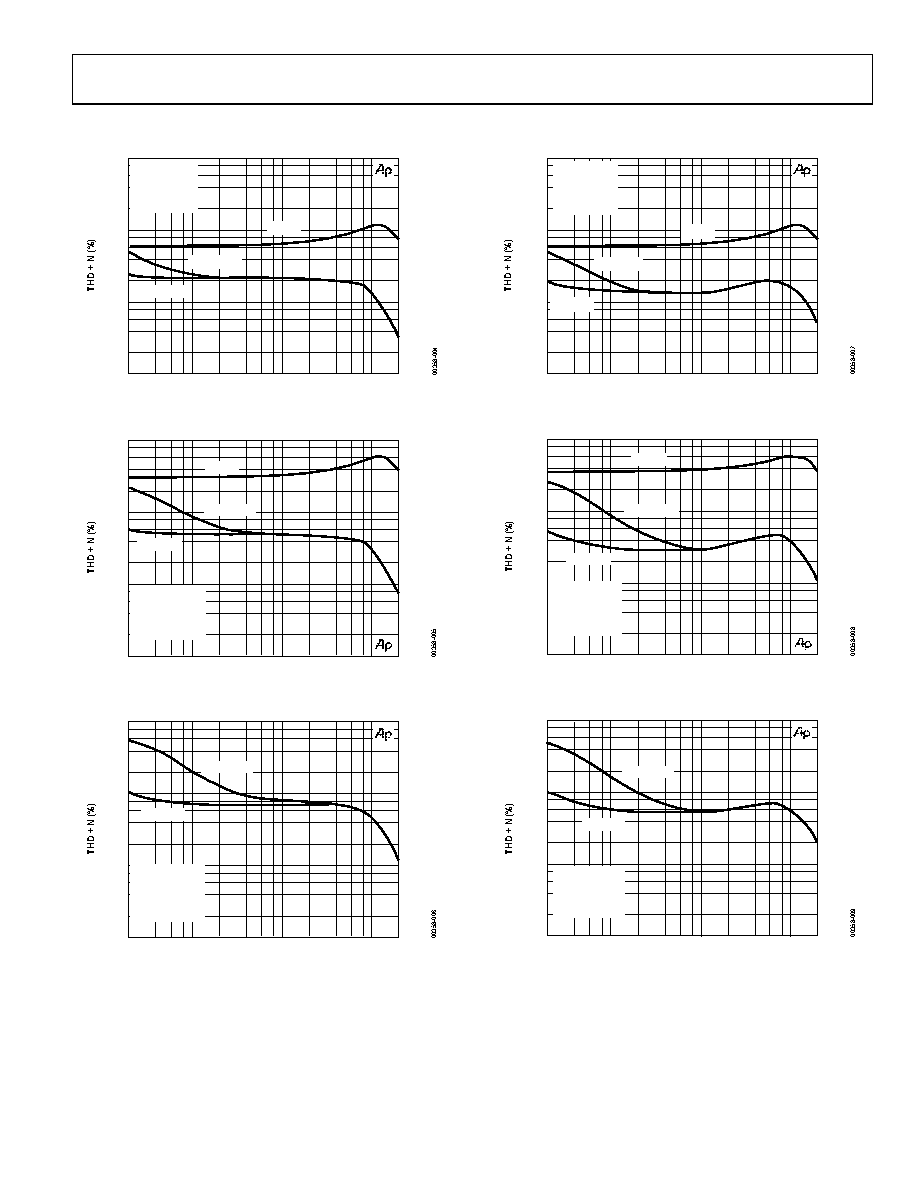

TYPICAL PERFORMANCE CHARACTERISTICS
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
CB = 0
CB = 0.1μF
CB = 1μF
TA = 25°C
VDD = 5V
AVD = 2 (BTL)
RL = 8Ω
PL = 500mW
Figure 4. THD + N vs. Frequency
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
CB = 0
CB = 0.1μF
CB = 1μF
TA = 25°C
VDD = 5V
AVD = 10 (BTL)
RL = 8Ω
PL = 500mW
Figure 5. THD + N vs. Frequency
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
CB = 0.1μF
CB = 1μF
TA = 25°C
VDD = 5V
AVD = 20 (BTL)
RL = 8Ω
PL = 500mW
Figure 6. THD + N vs. Frequency
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
CB = 0
CB = 0.1μF
CB = 1μF
TA = 25°C
VDD = 5V
AVD = 2 (BTL)
RL = 8Ω
PL = 1W
Figure 7. THD + N vs. Frequency
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
CB = 0
CB = 0.1μF
CB = 1μF
TA = 25°C
VDD = 5V
AVD = 10 (BTL)
RL = 8Ω
PL = 1W
Figure 8. THD + N vs. Frequency
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
CB = 0.1μF
CB = 1μF
TA = 25°C
VDD = 5V
AVD = 20 (BTL)
RL = 8Ω
PL = 1W
Figure 9. THD + N vs. Frequency
