SSM2211
Rev. D | Page 10 of 24
POUTPUT (W)
10
1
0.01
20n
0.1
2
0.1
1
TA = 25°C
VDD = 2.7V
AVD = 2 (BTL)
RL = 8Ω
FREQUENCY = 20Hz

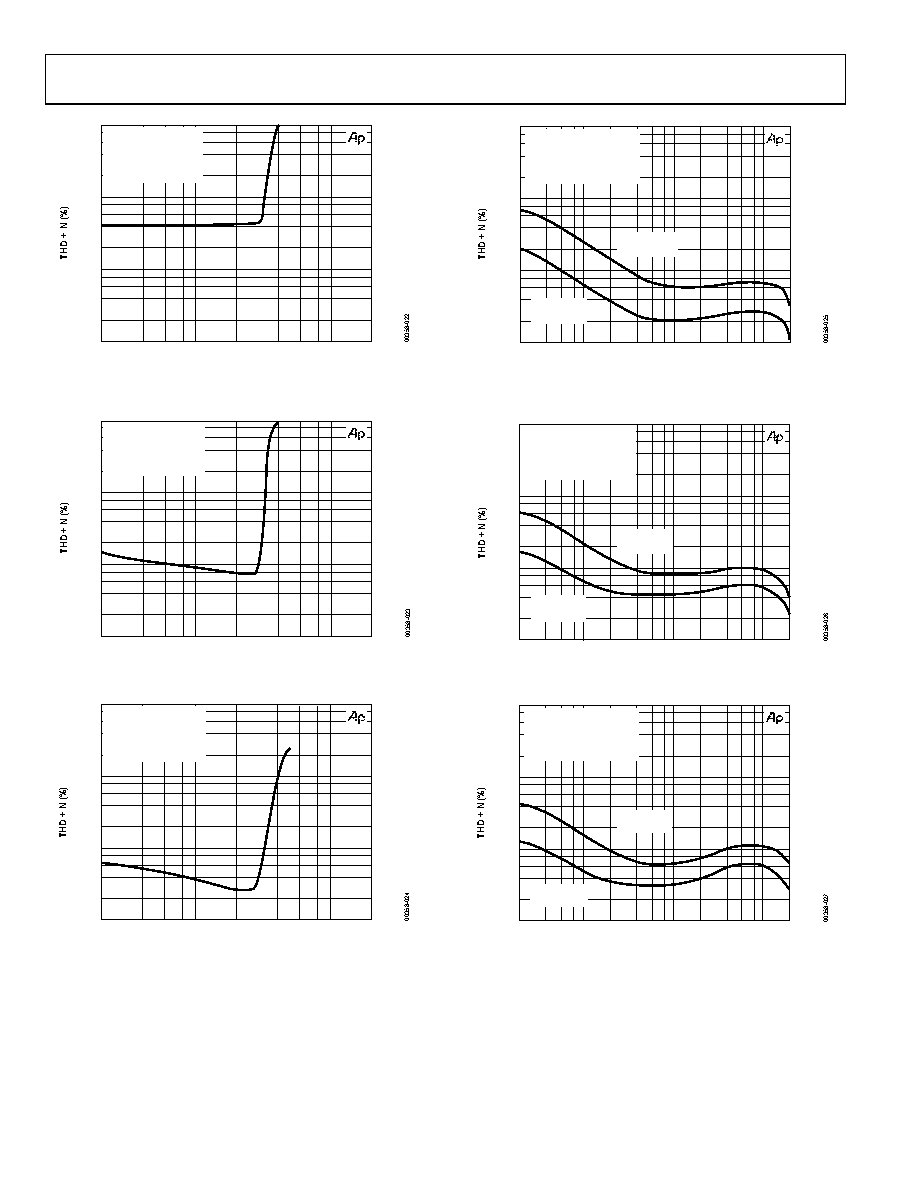

Figure 22. THD + N vs. POUTPUT
POUTPUT (W)
10
1
0.01
20n
0.1
2
0.1
1
TA = 25°C
VDD = 2.7V
AVD = 2 (BTL)
RL = 8Ω
FREQUENCY = 1kHz
Figure 23. THD + N vs. POUTPUT
POUTPUT (W)
10
1
0.01
20n
0.1
2
0.1
1
TA = 25°C
VDD = 2.7V
AVD = 2 (BTL)
RL = 8Ω
FREQUENCY = 20kHz
Figure 24. THD + N vs. POUTPUT
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
RL = 32Ω
PO = 60mW
RL = 8Ω
PO = 250mW
TA = 25°C
VDD = 5V
AVD = 10 SINGLE ENDED
CB = 0.1μF
CC = 1000μF
Figure 25. THD + N vs. Frequency
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
RL = 32Ω
PO = 20mW
RL = 8Ω
PO = 85mW
TA = 25°C
VDD = 3.3V
AVD = 10 SINGLE ENDED
CB = 0.1μF
CC = 1000μF
Figure 26. THD + N vs. Frequency
FREQUENCY (Hz)
10
1
0.01
20
100
20k
1k
10k
0.1
RL = 32Ω
PO = 15mW
RL = 8Ω
PO = 65mW
TA = 25°C
VDD = 2.7V
AVD = 10 SINGLE ENDED
CB = 0.1μF
CC = 1000μF
Figure 27. THD + N vs. Frequency
