Surface Mount Sense Resistors

OARS, OARS-XP, OARSZ Series

Flammability

The resistor will not burn or emit incandescent particles under any condition of applied temperature or overload.

Marking

The parts are legend marked with ohmic value and tolerance code.

Packaging Data

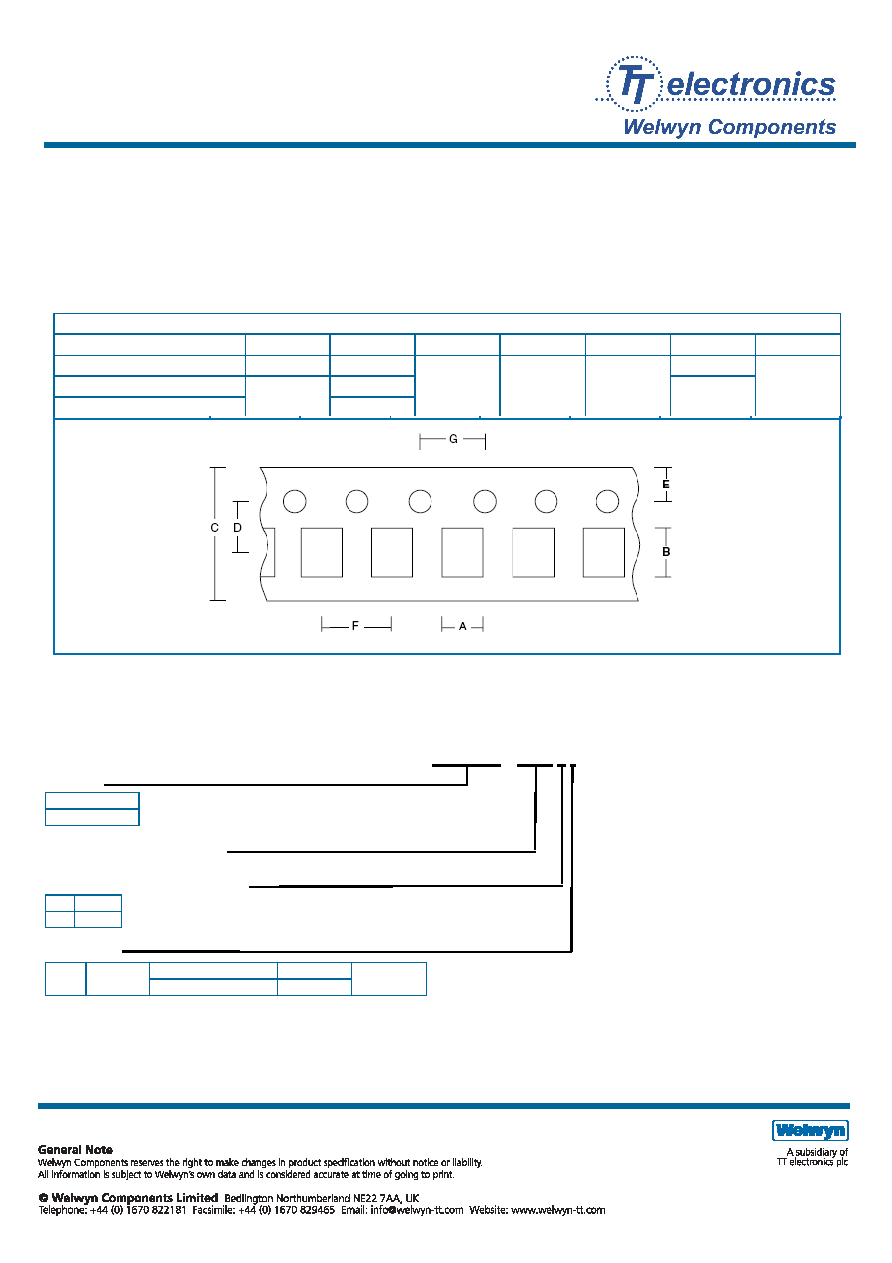

Dimensions (mm)

Type

A

B

C

D

E

F

G

OARS1, OARS-1Z 4.32±0.08 11.7±0.08

8±0.1

OARS-XP-R001

11.94±0.1

OARS-XP >R001

7.21±0.1

11.56±0.1

24±0.3

11.5±0.1

1.75±0.1

12±0.1

4±0.1

Ordering Procedure

Example: OARS1 at 10 milliohms and 5% tolerance on a reel of 1900 pieces -

O A R S 1 – R 0 1 J I

Type

OARS1

OARS-XP

Value (use IEC62 code)

Tolerance (use IEC62 code)

F

1%

J

5%

Packing

OARS1

1900/reel

I

Tape

OARS-XP

1200/reel Standard

For the zero-ohm link, order

OARS-1Z (Pack quantity is 1900/reel)

Issue F .09.07
