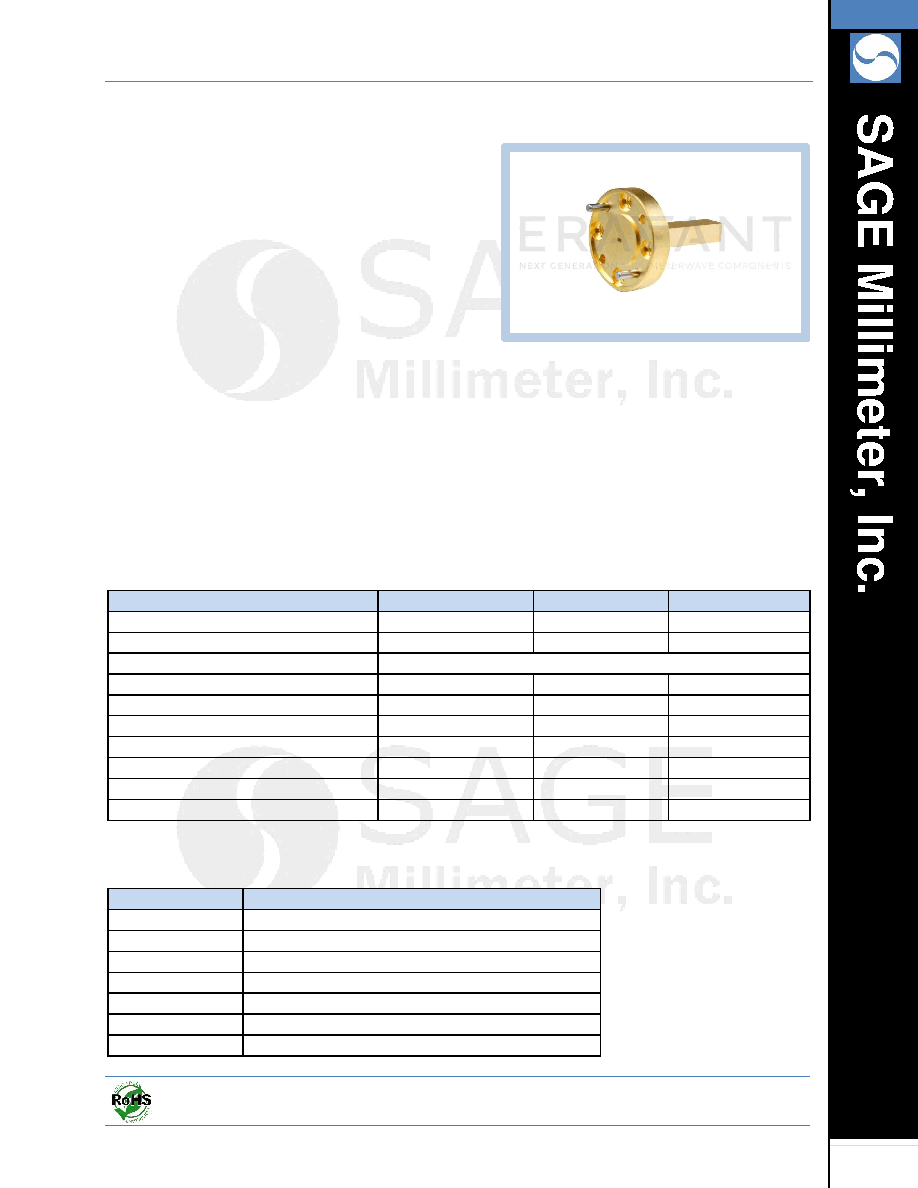

SAP-08-R2

Rev. 1.2

www.eravant.com | 501 Amapola Avenue, Torrance, CA 90501

Phone: 424-757-0168 | Fax: 424-757-0188 | Email: support@eravant.com

Page | 1

WR-08 Probe Antenna

Copyright © 2022 by Eravant

Description:

Model SAP-08-R2 is an F-band probe antenna that

operates from 90 GHz to 140 GHz. The antenna offers

6.5 dBi nominal gain and 115 degrees typical half power

beamwidth on the E-plane and 60 degrees typical half

power beamwidth on the H-plane. The antenna

supports linear polarized waveforms. The input of this

antenna is a WR-08 waveguide with UG-387/U-M Anti-

Cocking flange.

Features:

• Rectangular Waveguide Interface

• Precisely Machined and Gold Plated

• Linear Polarization

• High Return Loss

Applications:

• Antenna Ranges

• Antenna Gain Measurements

• System Setups

Electrical Specifications:

Parameter

Minimum

Typical

Maximum

Frequency

90 GHz

140 GHz

Gain

6.5 dBi

Polarization

Linear

3 dB Beamwidth, E-Plane

115°

3 dB Beamwidth, H-Plane

60°

Side Lobes, E-Plane

-10 dB

Side Lobes, H-Plane

-14 dB

Return Loss

9 dB

Specification Temperature

+25°C

Operating Temperature

-40°C

+85°C

Mechanical Specifications:

Item

Specification

Antenna Port

WR-08 Waveguide

Flange Type

UG-387/U-M Anti-Cocking Flange

Size

1.00” (L) x 0.75 (Ø)

Material

Brass

Finish

Gold Plated

Weight

0.4 Oz

Outline

AP-RF-A
