TNETE2101
10BASE-T/100BASE-TX/100BASE-FX
LOW-POWER PHYSICAL-LAYER INTERFACE
SPWS032D – JANUARY 1997 – REVISED MARCH 1999
8
POST OFFICE BOX 655303
• DALLAS, TEXAS 75265

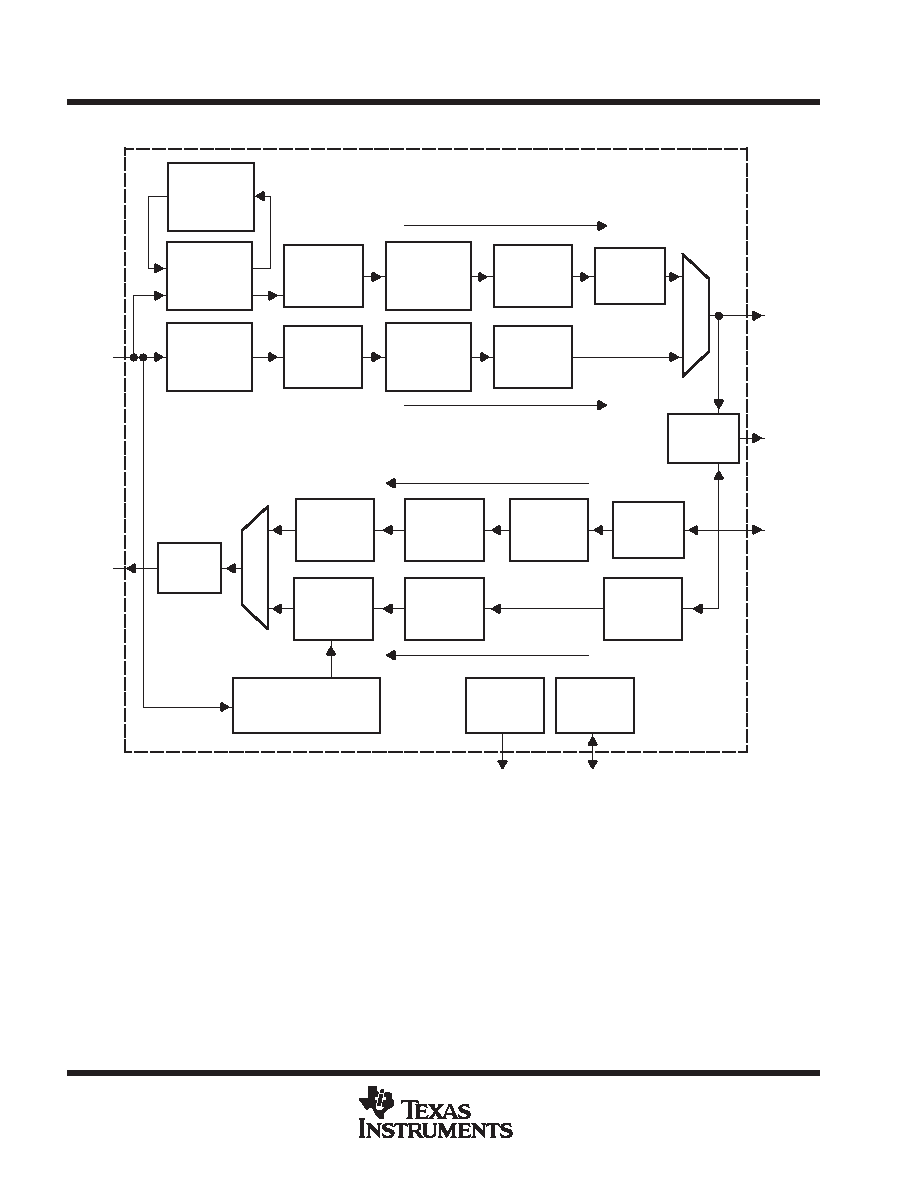

functional block diagram for UTP interface
Serialize
Rise-Time
Control
Wave Shape
BLW
Correction
Adaptive
Equalization
Smart
Squelch
Digital
Clock
Recovery
Digital
Clock
Recovery
Descrambler
Manchester
Decode
RCVP
RCVN
MRXD0
MRXD1
MRXD2
MRXD3
MCRS
MRXDV
MRXER
MRCLK
5B4B
Decode
Collision
Detect
MCOL
MTXD0
MTXD1
MTXD2
MTXD3
MTXEN
MTXER
MTCLK
Scramble
Manchester
Encode
Serialize
XMTP
XMTN
Line
Driver
Align
Align
Autonegotiation and
Link Status Monitor
10BASE-T
100BASE-TX
10BASE-T
100BASE-TX
LED
Controller
JTAG
5B4B
Encode
LED Terminals
