Data Sheet
ADL5906
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 10 of 30

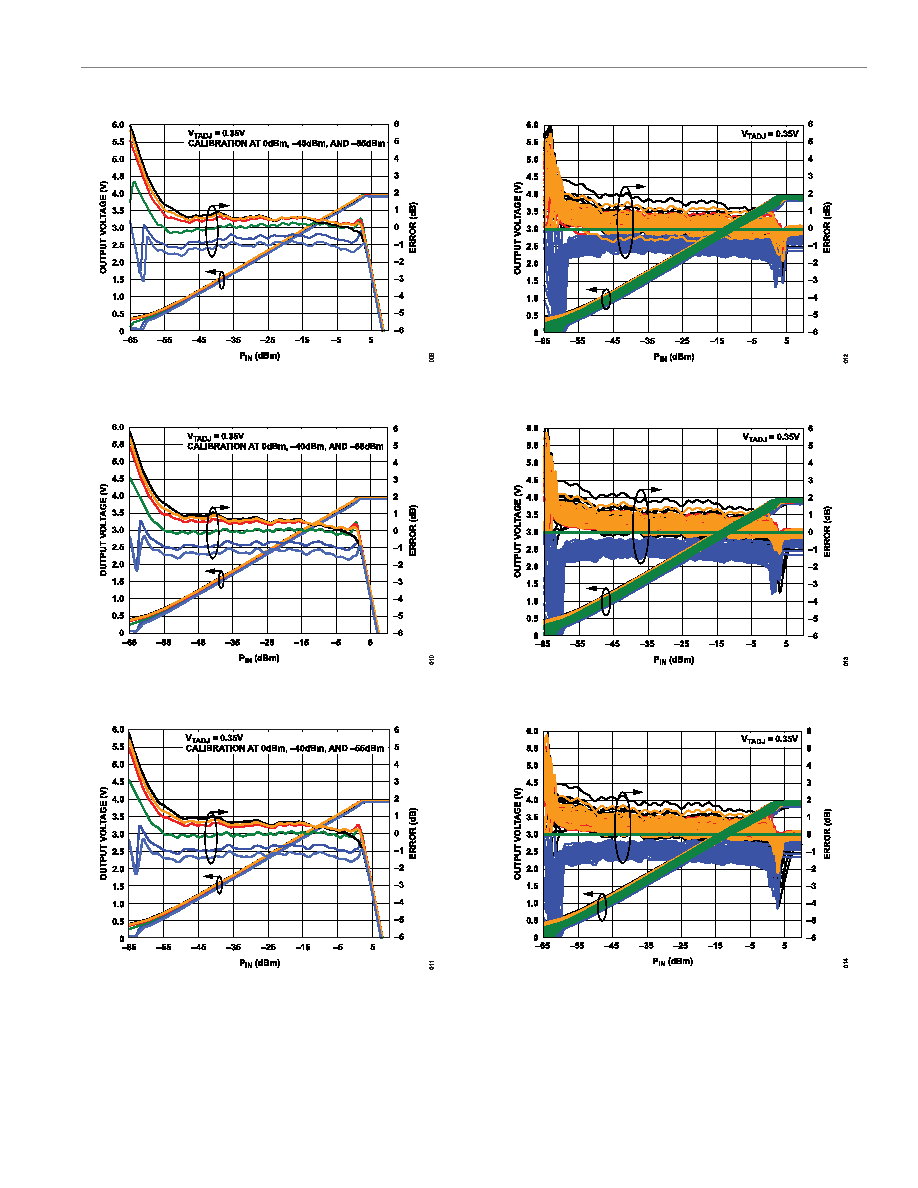

Figure 9. VRMS and Log Conformance Error vs. Input Level and Temperature
at 100 MHz
Figure 10. VRMS and Log Conformance Error vs. Input Level and Temperature
at 700 MHz
Figure 11. VRMS and Log Conformance Error vs. Input Level and Temperature
at 900 MHz
Figure 12. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 100 MHz
Figure 13. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 700 MHz
Figure 14. Distribution of Log Conformance Error with Respect to VRMS at
25°C vs. Input Level and Temperature at 900 MHz
