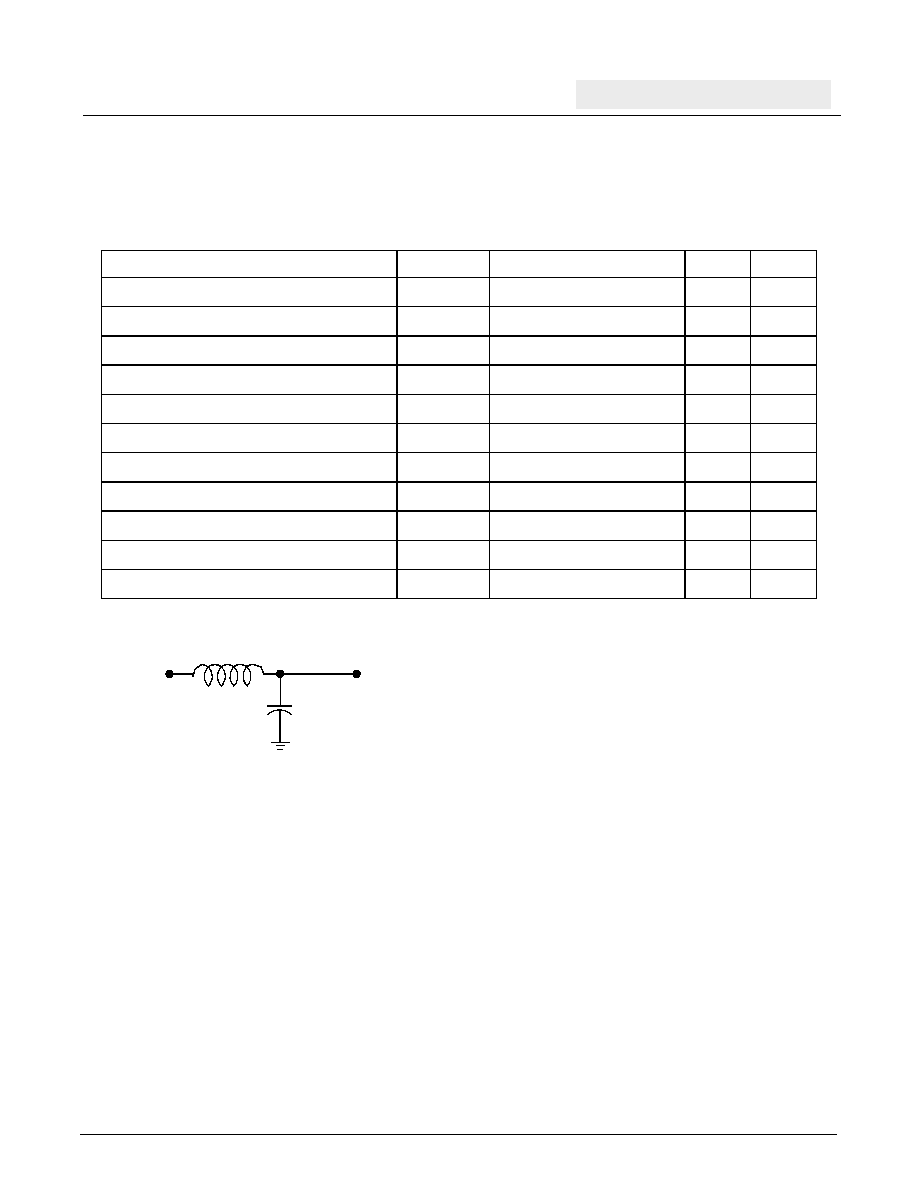

PowerPC 440SPe Embedded Processor
58
AMCC Proprietary
Revision 1.23 - Sept 21, 2006
Preliminary Data Sheet
Device Characteristics
Table 7. Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause
permanent damage to the device. None of the performance specification contained in this document are guaranteed when
operating at these maximum ratings.
Characteristic
Symbol
Value
Unit
Notes
Supply Voltage (Internal logic)
VDD
0 to +1.6
V
Supply Voltage (I/O interface, except DDR SDRAM)
OVDD
0 to +3.6
V
Supply Voltage (PCI-X I/O)
PxVDD
0 to +3.6
V
Supply Voltage (PCI-X DDR I/O)
PxVDD
0 to +1.6
V
Supply Voltages (System PLLs)
AxVDD
0 to +1.6
V
1
Supply Voltages (PCI-X PLLs)
APxVDD
0 to +1.6
V
1
Supply Voltage (DDR SDRAM logic)
SVDD
0 to +2.7
V
Supply Voltage (DDR2 SDRAM logic)
SVDD
0 to +1.95
V
Input Voltage (3.3V LVTTL receivers)
VIN
0 to +3.6
V
Storage temperature range
TSTG
-55 to +150
°C
Case temperature under bias
TC
-40 to +120
°C2
Notes:
1. The analog voltages used for the on-chip PLLs can be derived from the logic voltage, but must be filtered before entering the
PPC440SPe. A separate filter, as shown below, is recommended for each voltage:
2. This value is not a specification of the operational temperature range, it is a stress rating only.
VDD
C
AxVDD, APxVDD
L
L – SMT ferrite bead chip, Murata BLM31A700S
C – 0.1
μF ceramic
Murata BLM15AG102SN1
C – 1
μF ceramic
PCIE_PLLVDDA & B
PCI Express
