Mechanical Cam Switches

BNS 816-B10-PA-16-602-11

Order Code: BNS03CC

Internet

www.balluff.com

eCl@ss 9.1: 27-27-06-02

Subject to change without notice: 186495

ETIM 6.0: EC001829

BNS03CC_0.119_2024-08-23

1 / 2

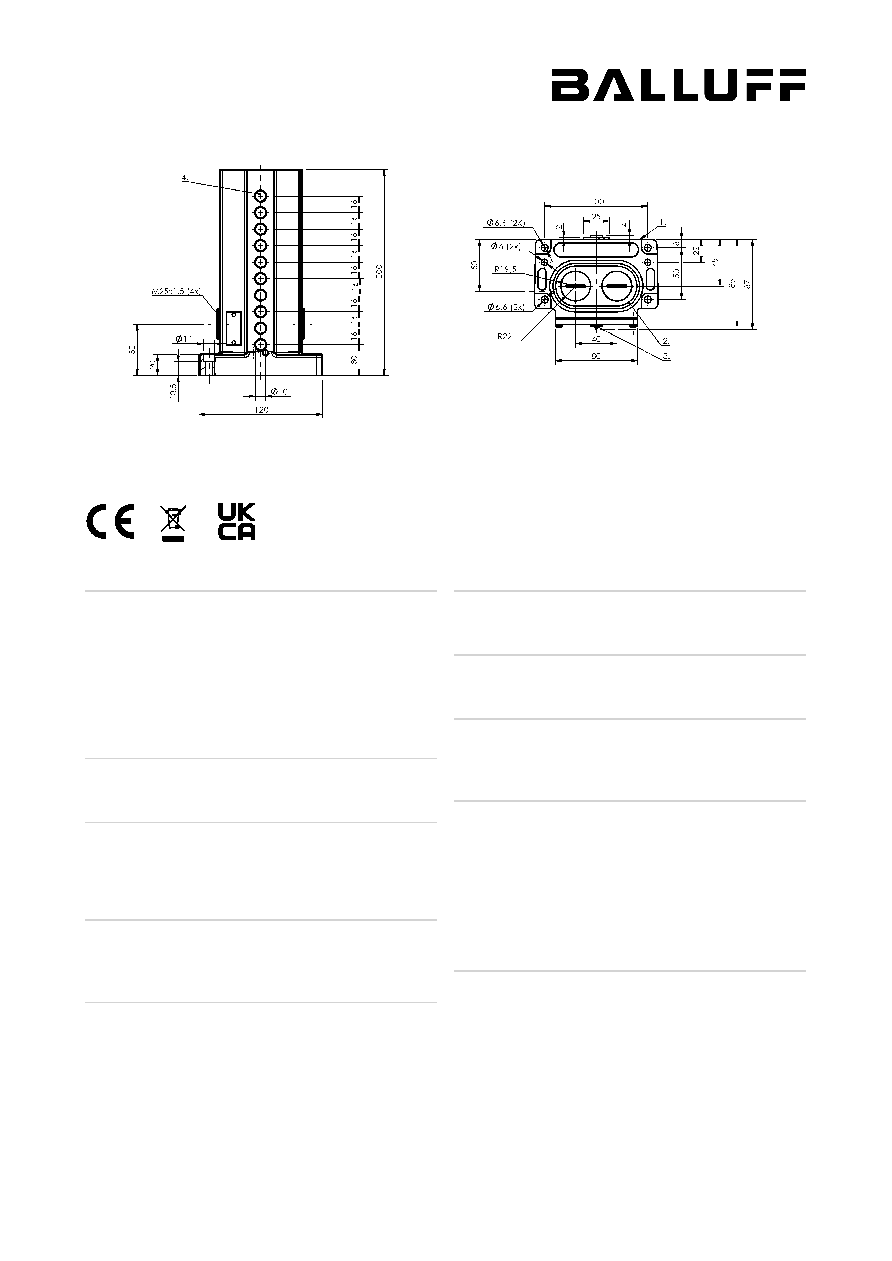

1) Reference edge, 2) Sealing ring, 3) Function indicator FD/FE/LL, 4) Sensing surface

Basic features

Approval/Conformity

CE

UKCA

WEEE

Basic standard

IEC 60947-5-2

DIN switch

DIN 43697

Operating principle

1-10. Switch position: Inductive

Version

Inductive

Display/Operation

Function indicator

1-10. Switch position: Optical fiber

Electrical connection

Connection type

1-10. Switch position: Screw

terminal

Electrical version

3-/4-wire

Electrical data

Continuous current

1-10. Switch position: 0.2 A

Rated operating voltage Ue

1-10. Switch position: 24 V DC

Environmental conditions

Ambient temperature

-25...70 °C

IP rating

IP67

Functional safety

MTTF (40 °C)

BES 517-110: 490 a

Interface

Switching output

PNP complementary

Material

Housing material

Aluminium, Anodized

Housing material, surface protection

Anodized

Mechanical data

Dimension

120 x 200 x 86.5 mm

Distance cam - active surface

1-10. Switch position: 0…1.62 mm

Flange, feed-through

2 threaded exit M25

Installation

Vertical

Plunger spacing 1st switch position

30 mm

Switching element

1-10. Switch position: BES

517-110

Range/Distance

Assured operating distance Sa

1-10. Switch position: 1.6 mm

Range

2 mm

Rated operating distance Sn

1-10. Switch position: 2.0 mm

Switch position spacing

16 mm
