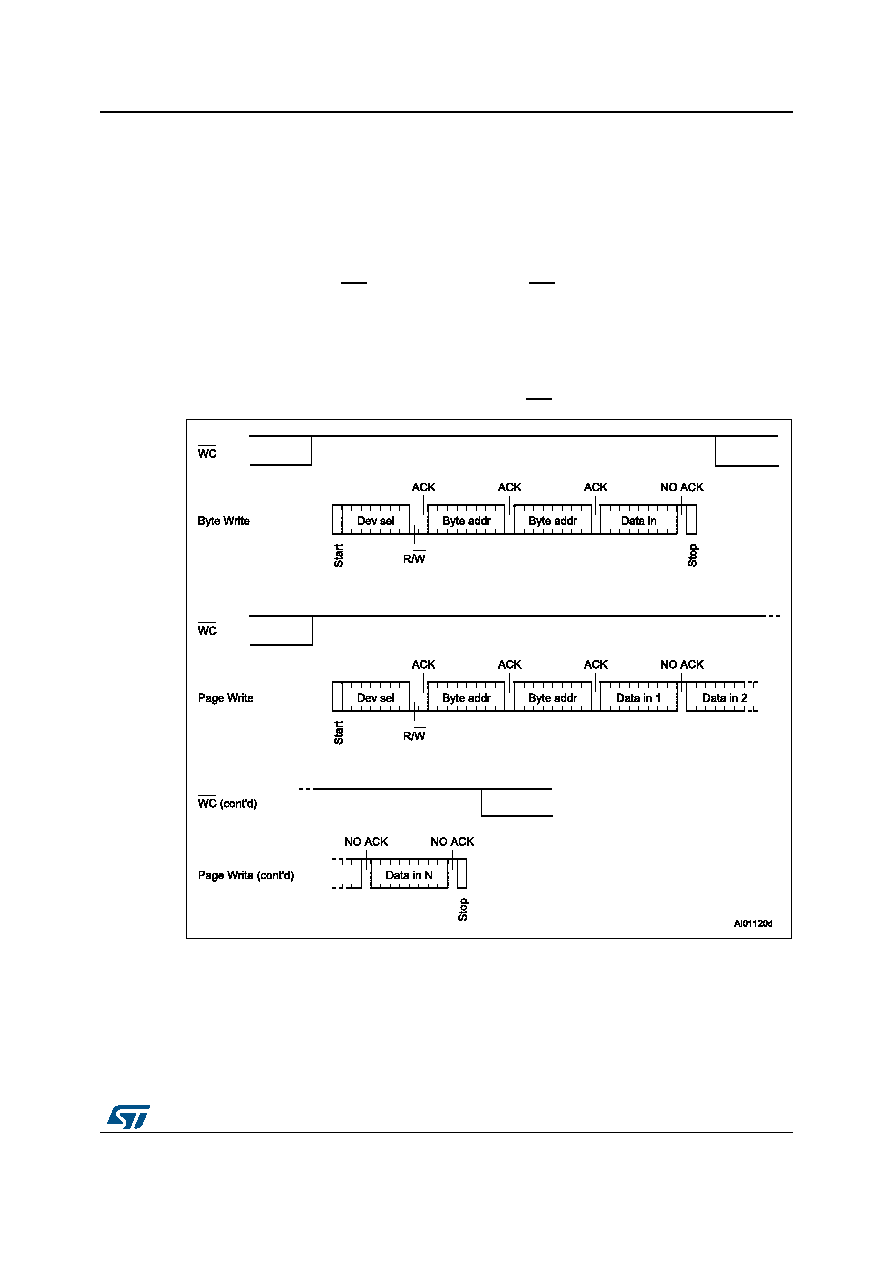

17 / 54 page  DS6638 Rev 36 17/54 M24C64-W M24C64-R M24C64-F M24C64-DF Instructions 53 5.1.2 Page Write The Page Write mode allows up to 32 byte to be written in a single Write cycle, provided that they are all located in the same page in the memory: that is, the most significant memory address bits, A15/A5, are the same. If more bytes are sent than will fit up to the end of the page, a “roll-over” occurs, i.e. the bytes exceeding the page end are written on the same page, from location 0. The bus master sends from 1 to 32 byte of data, each of which is acknowledged by the device if Write Control (WC) is low. If Write Control (WC) is high, the contents of the addressed memory location are not modified, and each data byte is followed by a NoAck, as shown in Figure 11. After each transferred byte, the internal page address counter is incremented. The transfer is terminated by the bus master generating a Stop condition. Figure 11. Write mode sequences with WC = 1 (data write inhibited) |
|
