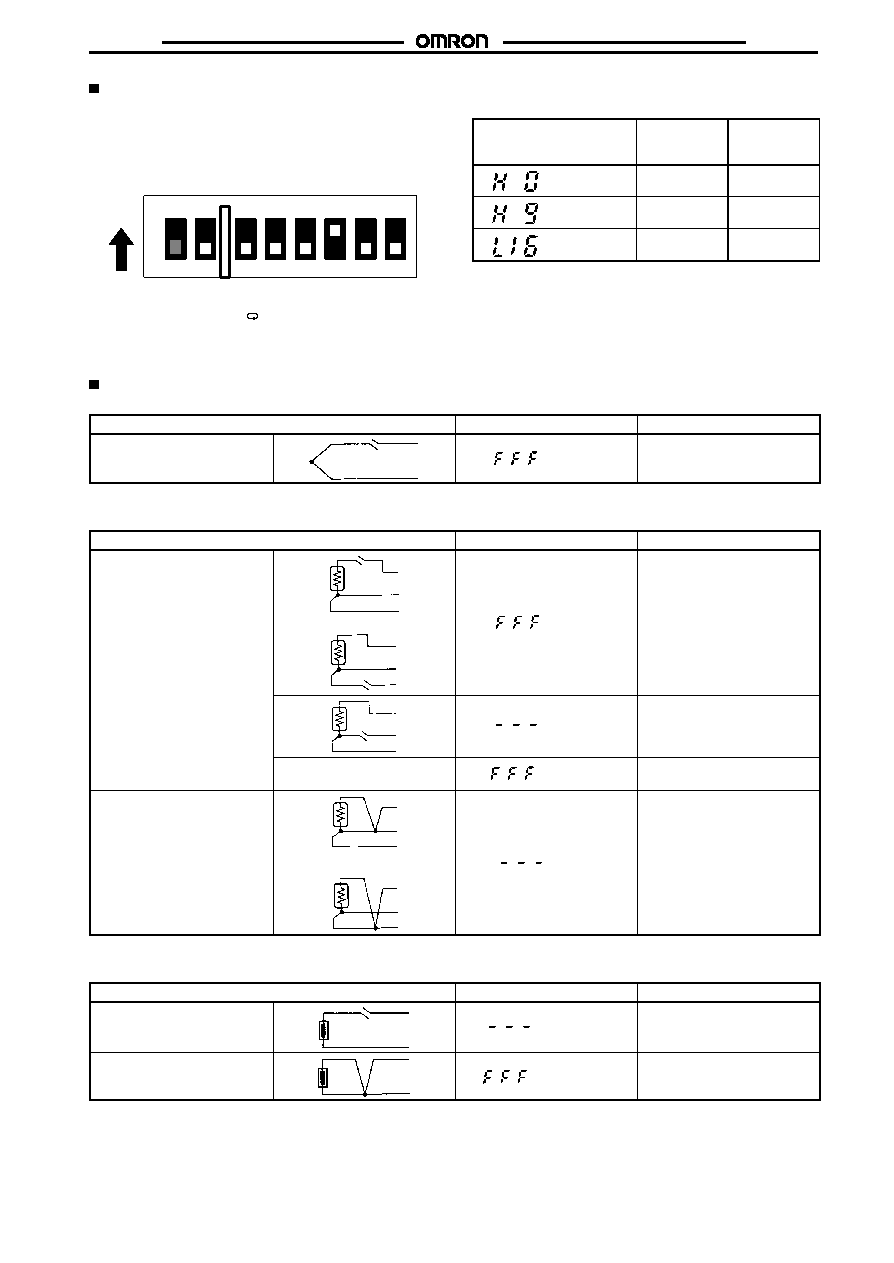

Input Shift Function

This function is used to shift the value displayed in the main display

from the value actual measured by a desired amount. This powerful

feature can be used for “fine tuning” compensation, while leaving

the set temperature unaffected.

The input shift function is activated by setting pin 4 of the internal

DIP switch to ON.

ON

16

5

4

3

2

PX

ON

This allows the setting of the temperature shift value. Press the tem-

perature indication switching (

) key repeatedly until “H 0” (in this

case, indicating a zero input shift) is displayed on the main display.

Then set the input shift value by using the upward and downward

setting keys.

Example

Main display

Temperature

measured by

sensor

Temperature

displayed

(without shift)

100

°C

100

°C

(offset by +9

°C)

100

°C

109

°C

(offset by –16

°C)

100

°C

84

°C

The input shift value can be set within a range of –99 to 99, except

with a 0.0 to 99.9 platinum resistance thermometer, where the input

shift narrows to a range of –9.9 to 9.9.

When the desired shift has been entered, set pin 4 to OFF. The input

shift value remains in memory. Consequently, if the input shift func-

tion is not needed, with pin 4 activated set the input shift value to 0.

Sensor Failure Operation

Thermocouple Type

Condition

Display

Control output

Break in sensor

blinks

OFF

Note:

When the input is short-circuited, the room temperature is displayed.

Platinum Resistance Thermometer Type

Condition

Display

Control output

Break in sensor

blinks

OFF

blinks

OFF

Disconnection of two or three

wires

blinks

OFF

Short-circuit

blinks

OFF

Note:

The resistance of the platinum resistance thermometer is 100

Ω at 0°C. It increases to about 140 Ω at 100°C.

Thermistor Type

Condition

Display

Control output

Break in sensor

ON during heating (reverse)

OFF during cooling (normal)

Short-circuit

ON during heating (reverse)

OFF during cooling (normal)
