SRP3012CC Series - Shielded Power Inductors

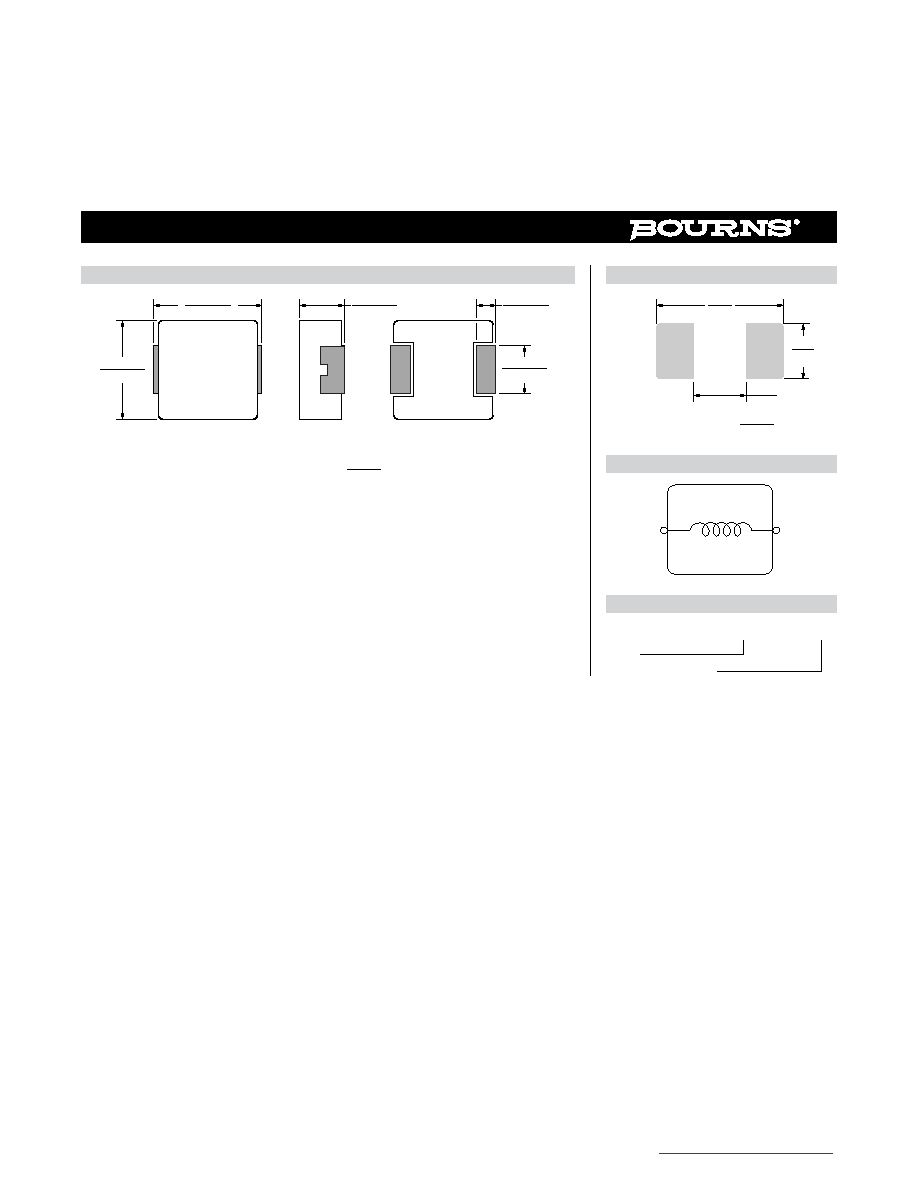

Product Dimensions

2.2

TOP VIEW

SIDE VIEW

BOTTOM VIEW

3.5 ± 0.2

(.138 ± .008)

1.0 ± 0.2

(.039 ± .008)

3.2 ± 0.2

(.126 ± .008)

1.2 ± 0.2

(.047 ± .008)

0.7 ± 0.2

(.028 ± .008)

DIMENSIONS:

MM

(INCHES)

Recommended Layout

4.10

(.161)

1.90

(.075)

1.45

(.057)

DIMENSIONS:

MM

(INCHES)

Electrical Schematic

How to Order

SRP3012CC - R15Y

Model

Value Code (see table)
