SSM2311

Rev. 0 | Page 17 of 20

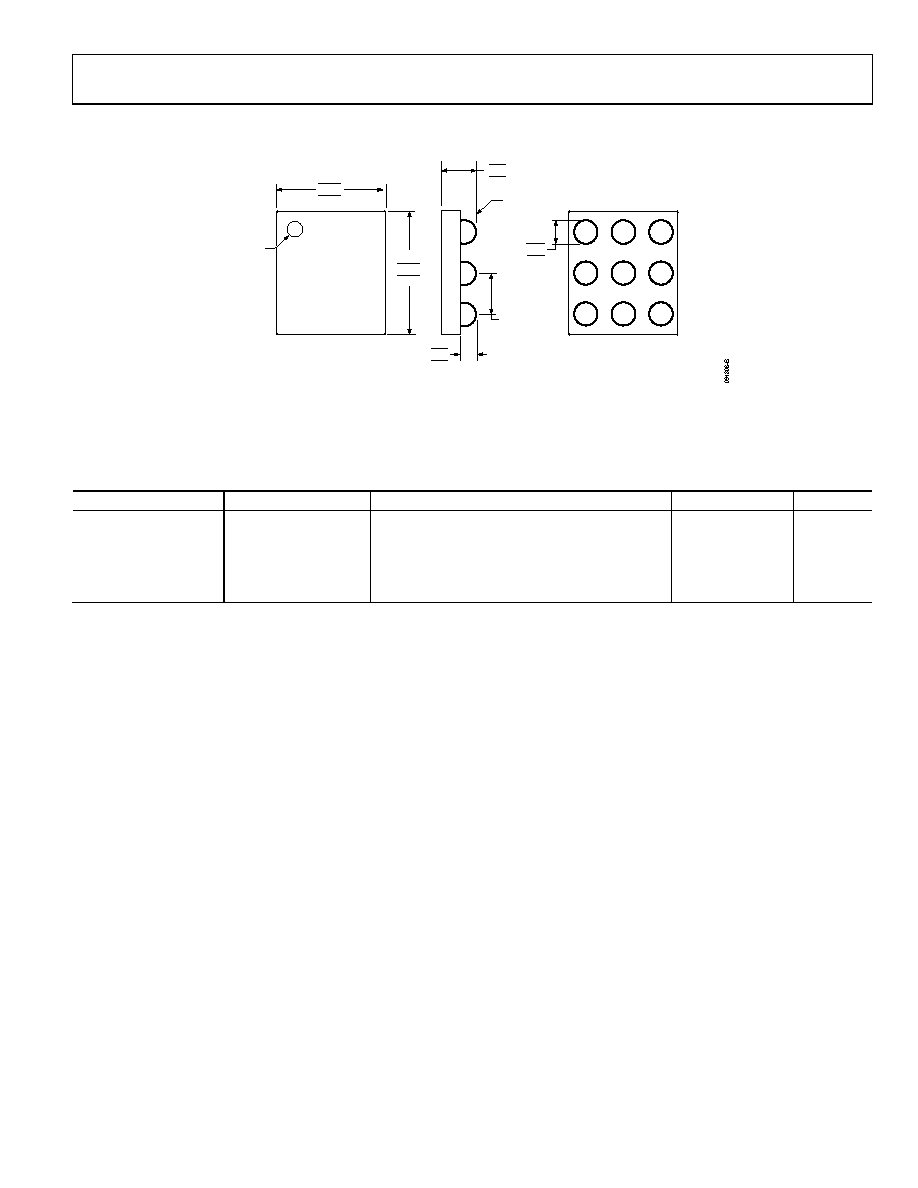

OUTLINE DIMENSIONS

SEATING

PLANE

0.50 BSC

BALL PITCH

1.575

1.515

1.455

1.750

1.690

1.630

0.28

0.24

0.20

0.35

0.32

0.29

0.65

0.59

0.53

BOTTOM VIEW

(BALL SIDE UP)

TOP VIEW

(BALL SIDE DOWN)

BALL 1

IDENTIFIER

Figure 48. 9-Ball Wafer Level Chip Scale Package [WLCSP]

(CB-9-1)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package Option

Branding

SSM2311CBZ-R21

−40°C to +85°C

9-Ball Wafer Level Chip Scale Package [WLCSP]

CB-9-1

A1G

SSM2311CBZ-REEL1

−40°C to +85°C

9-Ball Wafer Level Chip Scale Package [WLCSP]

CB-9-1

A1G

SSM2311CBZ-REEL71

−40°C to +85°C

9-Ball Wafer Level Chip Scale Package [WLCSP]

CB-9-1

A1G

SSM2311-EVALZ1

Evaluation Board

SSM2311-MINI-EVALZ1

Evaluation Board, 7 mm × 7 mm

1 Z = RoHS Compliant Part.
