Protective PFA Tubing

Inside Diameter

Wall Dimensions

AWG Size

(Nominal)

Nominal

Tolerance

30

0.30 (0.012)

0.23 (0.009)

0.05 (0.002)

28

0.38 (0.015)

0.23 (0.009)

0.05 (0.002)

26

0.46 (0.018)

0.23 (0.009)

0.05 (0.002)

24

0.56 (0.022)

0.25 (0.010)

0.08 (0.003)

20

0.86 (0.034)

0.38 (0.015)

0.08 (0.003)

Dimensions: mm (inch)

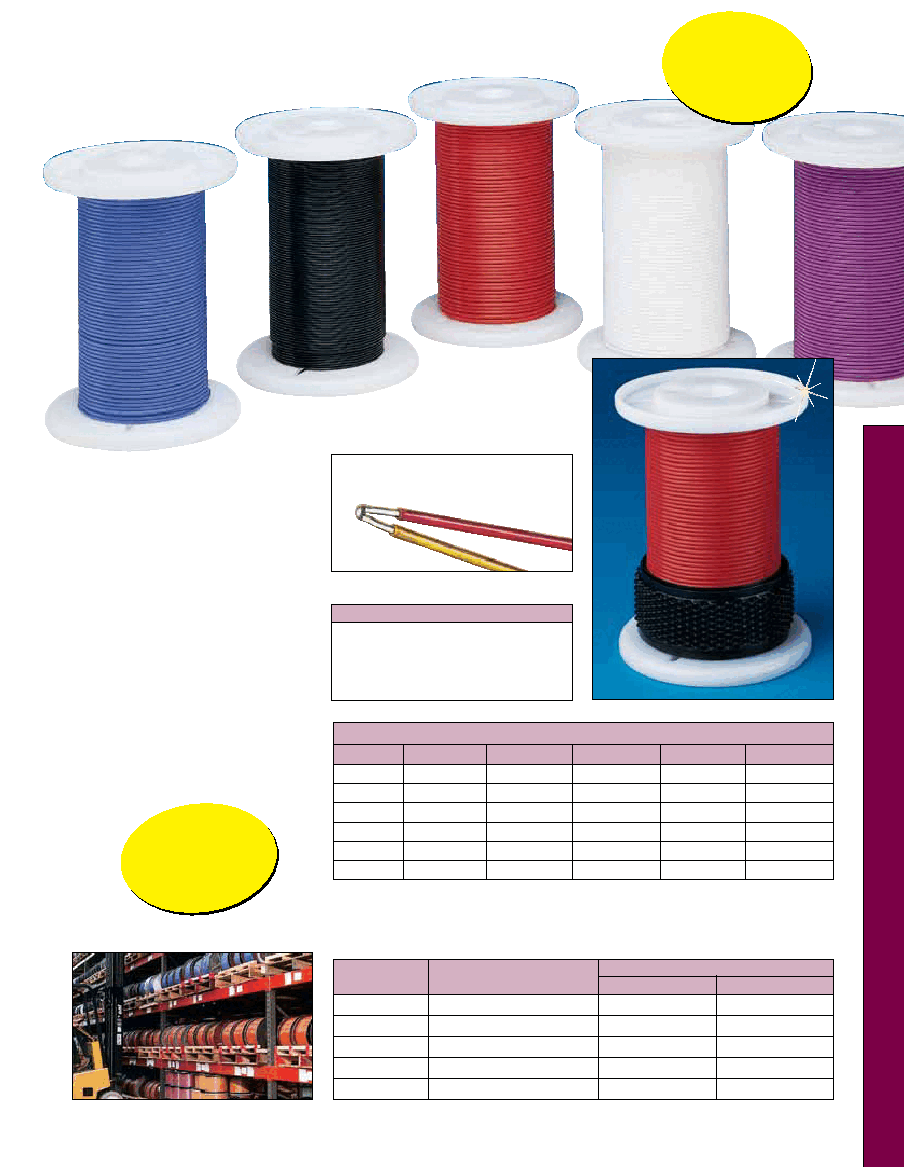

TFE tubing offers superior

abrasion protection and is excellent

in insulating wires in moist or

corrosive environments where

temperatures do not exceed 260°C

(500°F). All colors and gages are in

stock for fast delivery!

Available! For long, continuous lengths—

consult factory for pricing and delivery!

Shown smaller

than actual size.

30 m (100') Spool

U

Thin Wall Construction

U

Extruded PTFE Rated

to 260°C (500°F)

U

Color Coded for Easy

Identification

U

Non-Flammable

Discount Schedule

1 to 10 feet .................................. Net

11 to 24 feet .............................. 10%

25 to 99 feet ............................. 20%

100 to 499 feet .......................... 30%

≥500 feet ................................... 35%

Create your own

insulated thermocouple!

To Order

Color

20 AWG

24 AWG

26 AWG

28 AWG

30 AWG

Black

TF-BK-20

TF-BK-24 TF-BK-26

TF-BK-28

TF-BK-30

Blue

TF-B-20

TF-B-24

TF-B-26

TF-B-28

TF-B-30

Purple

TF-P-20

TF-P-24

TF-P-26

TF-P-28

TF-P-30

Red

TF-R-20

TF-R-24

TF-R-26

TF-R-28

TF-R-30

White

TF-W-20

TF-W-24

TF-W-26

TF-W-28

TF-W-30

Yellow

TF-Y-20

TF-Y-24

TF-Y-26

TF-Y-28

TF-Y-30

To order, specify model no. and length. 25 and 100' spools stocked for fast delivery.

Other lengths available for additional cost. Minimum order, 10'. Consult sales for delivery.

Ordering Example: TF-R-24-25, red PFA tubing for 24 gage wire, 25 feet long.

Used For Research

And Development

On

Bare Wire Thermocouples,

RTDs And Fiber

Optics.

Available in

Convenient 25'

and 100'

Pre-Spooled Lengths

For Fast Off-the-Shelf

Delivery.
